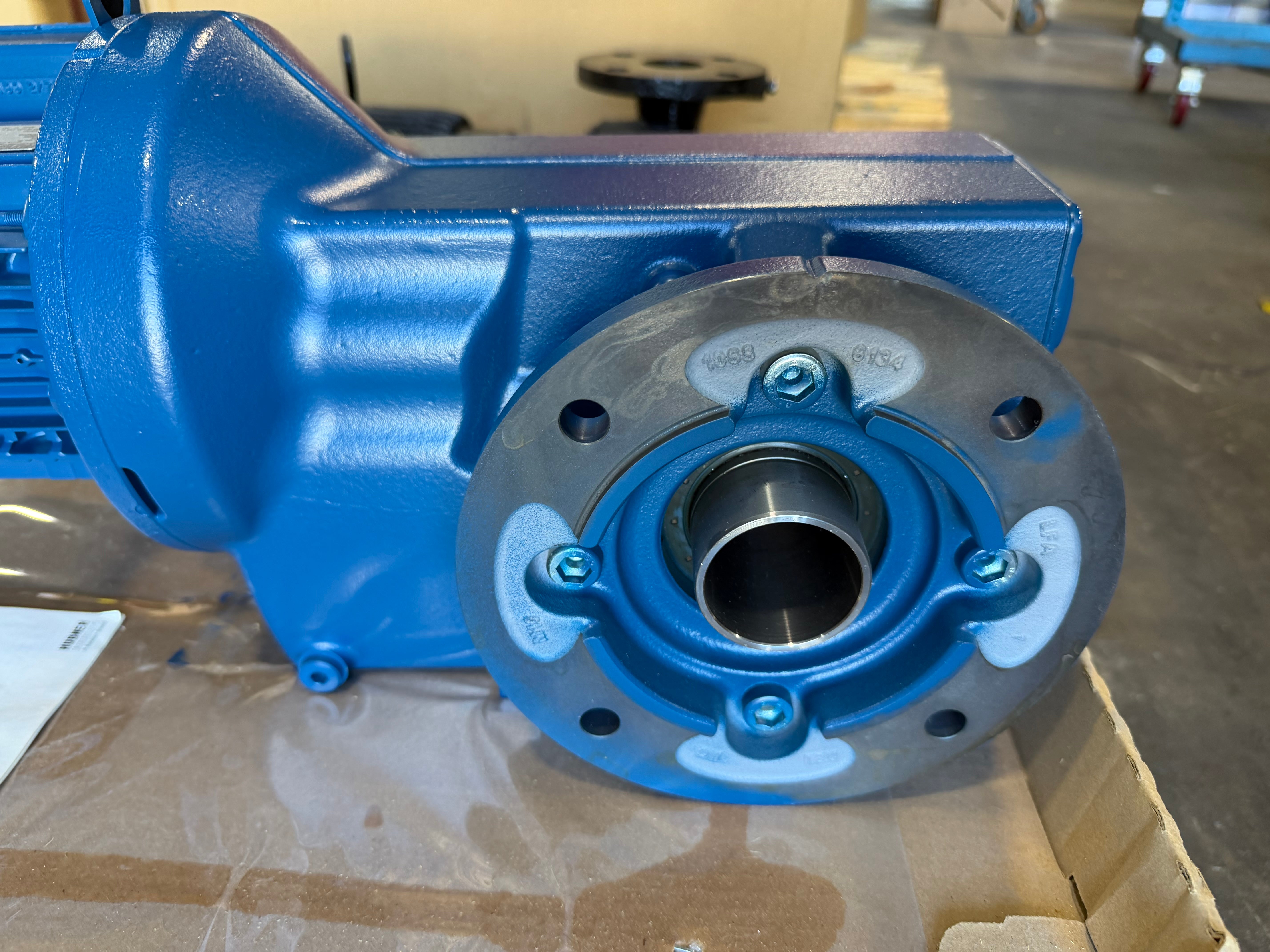

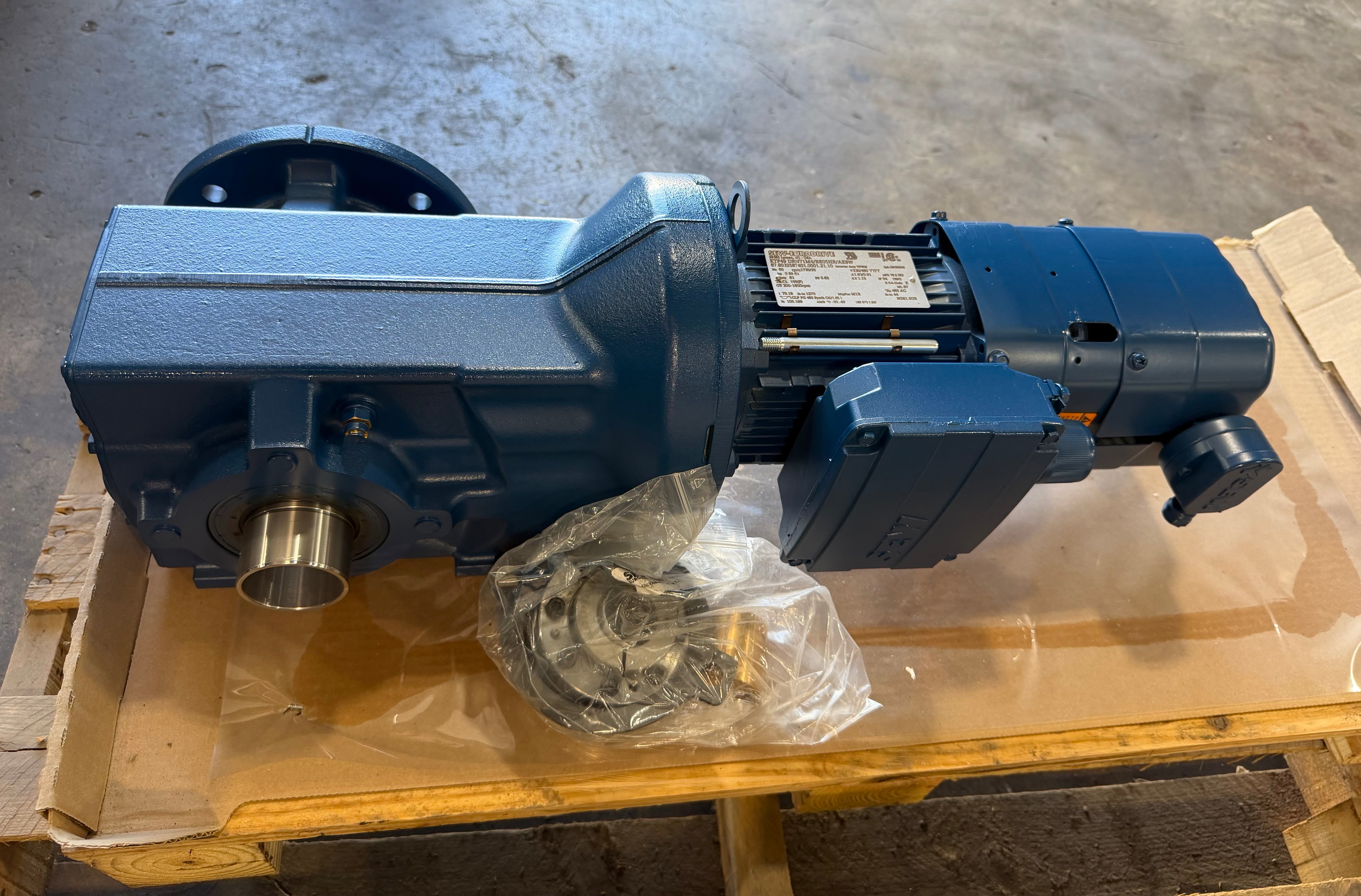

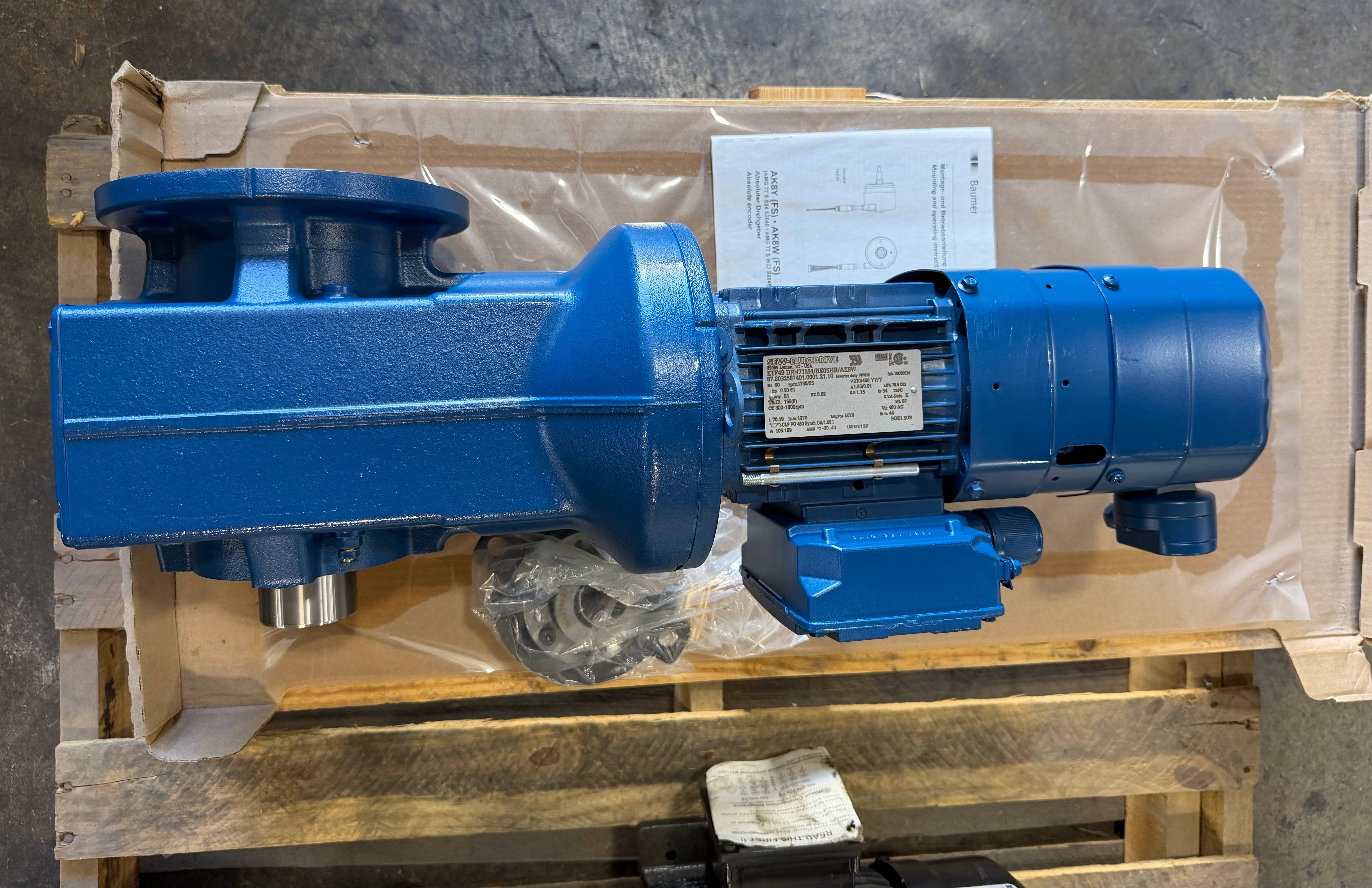

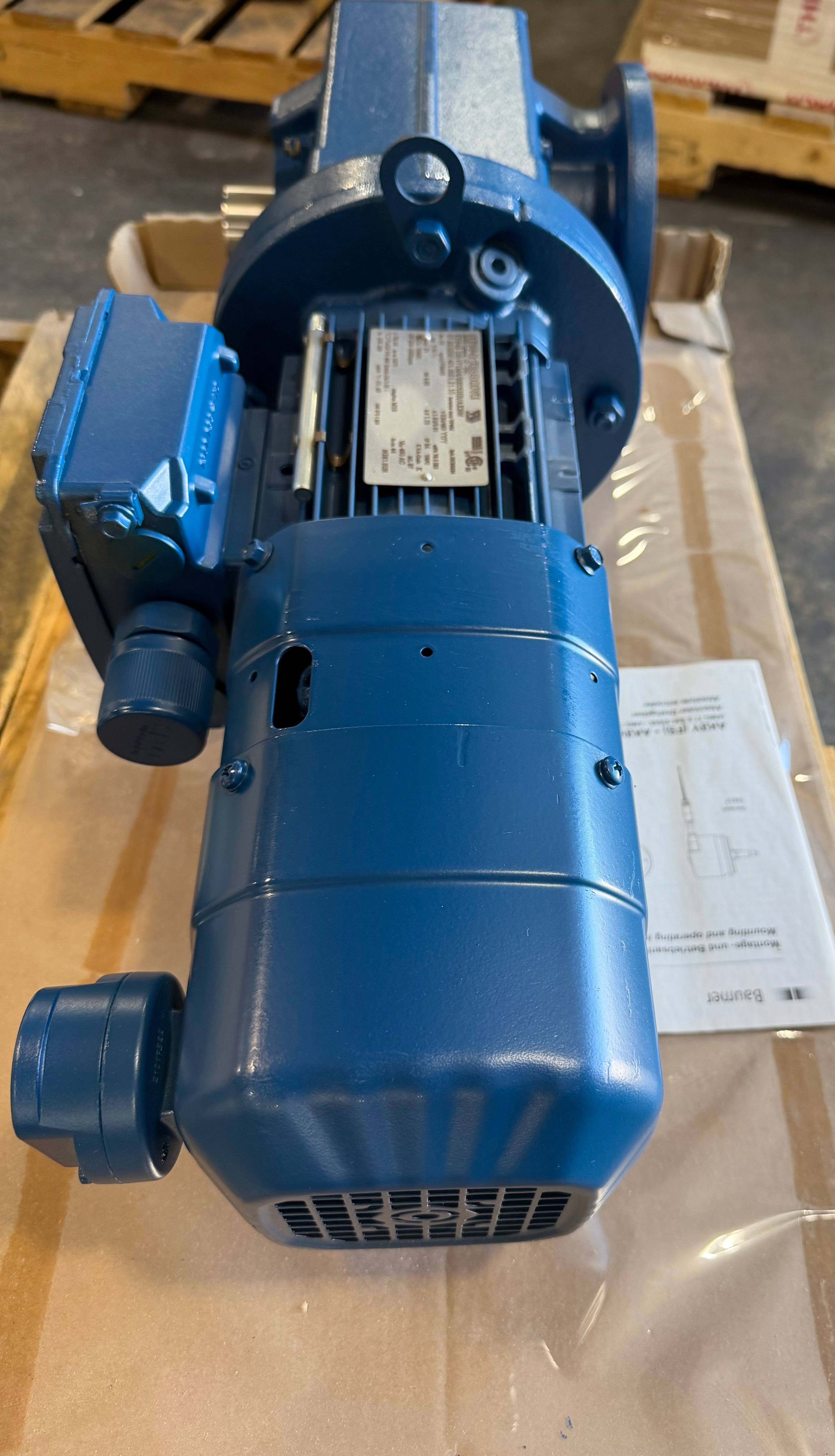

SEW-Eurodrive KTF49 DRN71M4 Gearmotor 1/2HP 230/460V 3PH 1730RPM NEW

SEW-Eurodrive KTF49 DRN71M4 Gearmotor 1/2HP 230/460V 3PH 1730RPM NEW

SEW-Eurodrive KTF49 DRN71M4

Gearmotor
Manufacturer: SEW-Eurodrive
Gear Unit Model: KTF49
Configuration: Right Angle Helical-Bevel Gearmotor

Motor

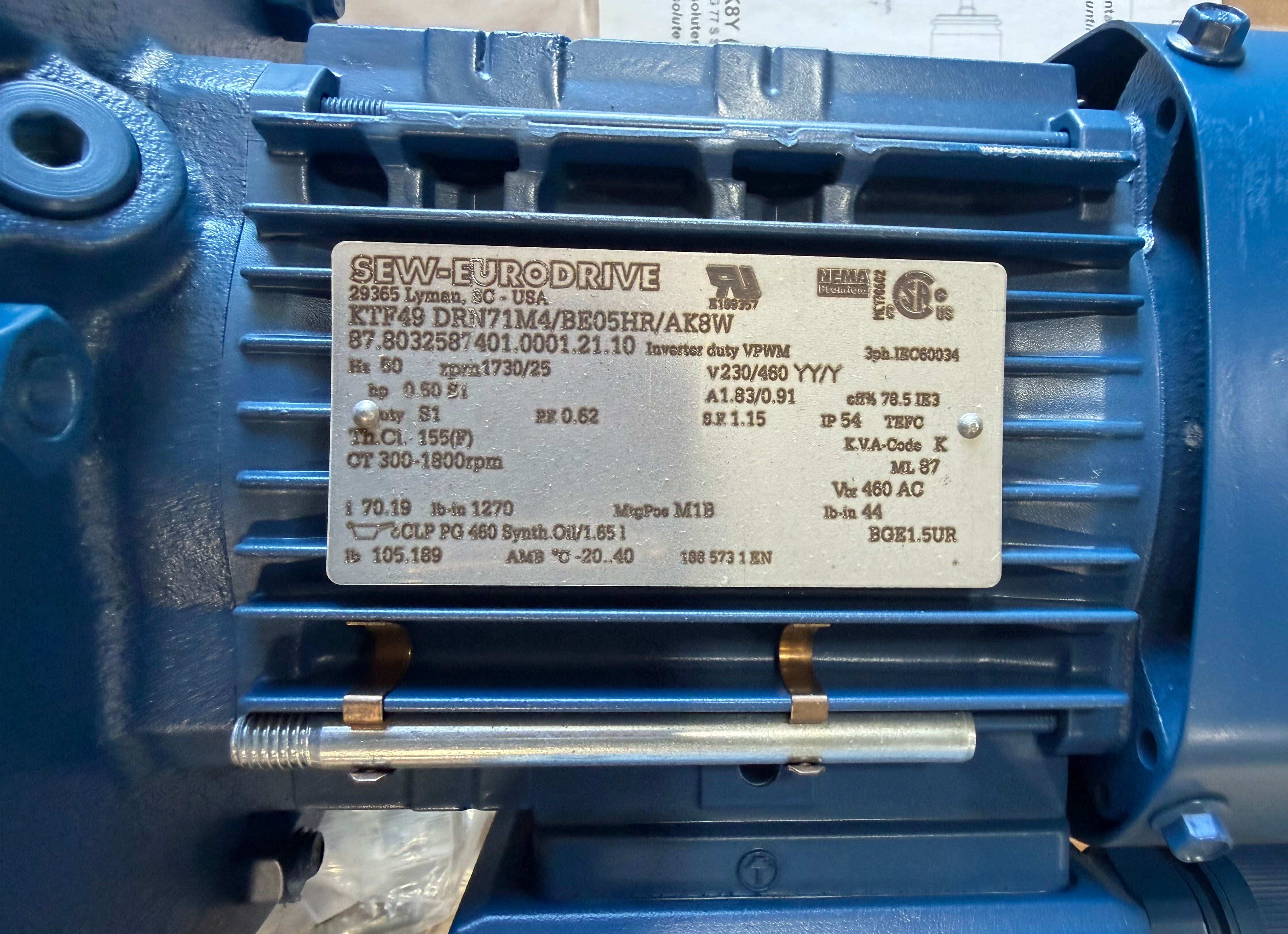

Model: DRN71M4/BE05HR/AK8W
Part Number: 87.8032587401.0001.21.10
Horsepower: 0.50 HP
Phase: 3 Phase
Voltage: 230/460 VAC
Frequency: 60 Hz
Motor Speed: 1730 RPM
Output Speed: 25 RPM
Service Factor: 1.15
Power Factor: 0.62
Efficiency: IE3 Premium Efficiency
Enclosure: TEFC
IP Rating: IP54
Insulation Class: F (155°C)
Inverter Duty: Yes (VPWM Rated)
Continuous Torque Range: 300-1800 RPM

Gear Reducer
Gear Ratio: 70.19:1
Output Torque: Approximately 1270 lb-in
Lubricant: CLP PG 460 Synthetic Oil
Mounting Position: M1B
Ambient Temperature Range: -20°C to +40°C
Weight: Approximately 105 lbs

SEW-Eurodrive KTF49 right-angle gearmotor assembly with DRN71M4 inverter-duty motor. Designed for conveyor systems, material handling equipment, packaging machinery, automation systems, and industrial power transmission applications.

This premium efficiency IE3 gearmotor is inverter-rated and features a heavy-duty cast iron gear reducer coupled to a TEFC three-phase motor.

Ideal for OEM replacement or new industrial installations.
