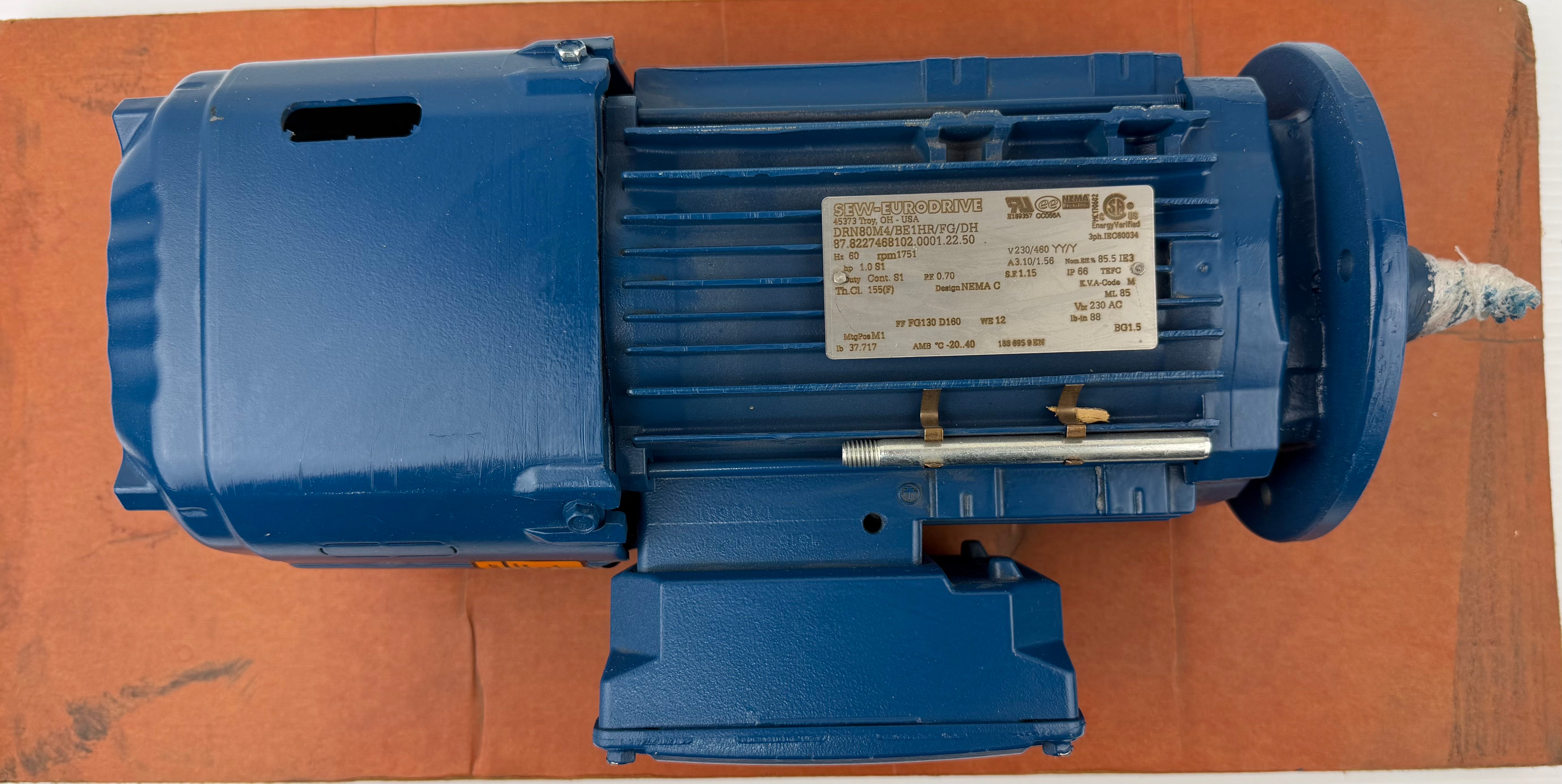

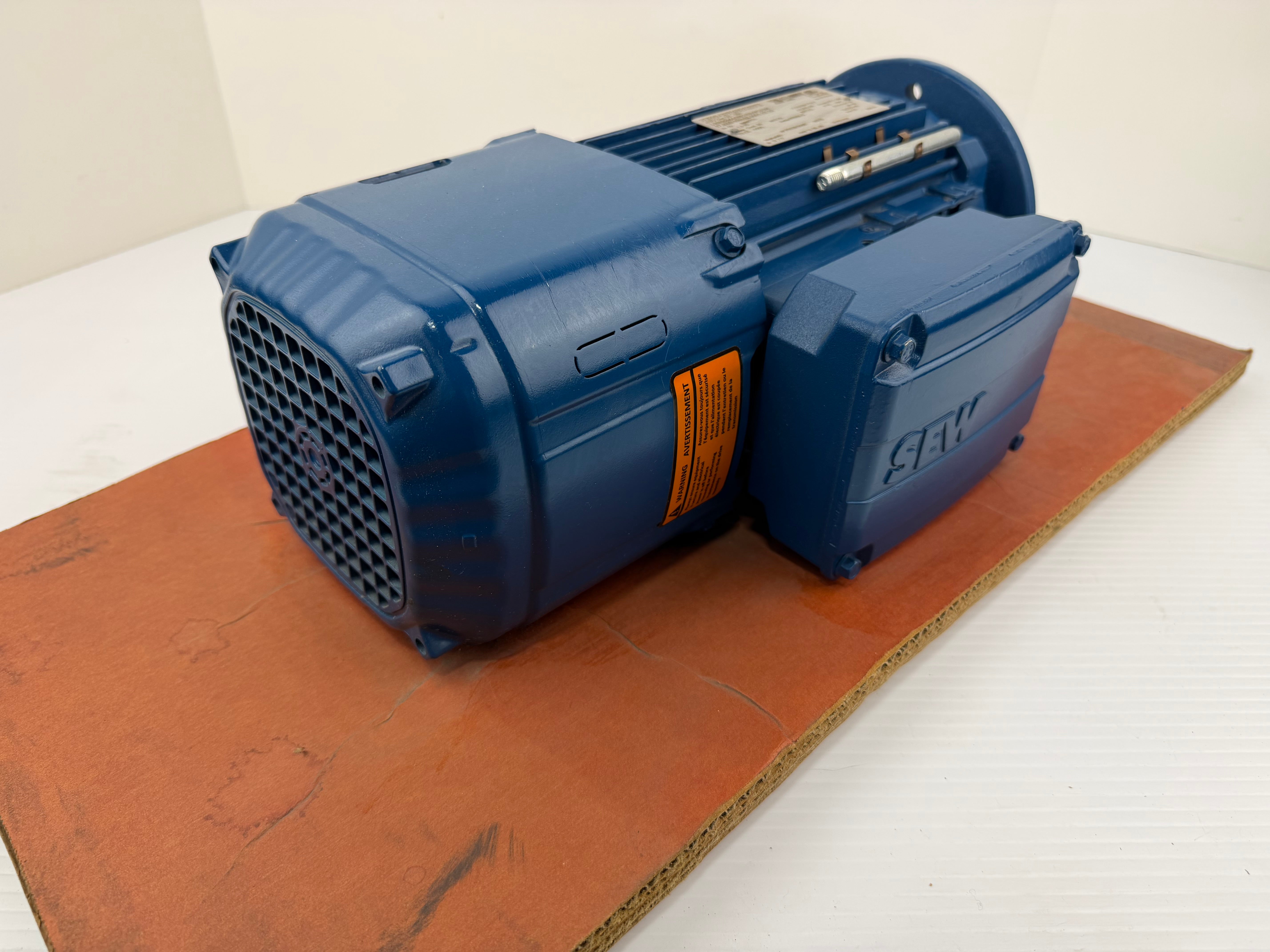

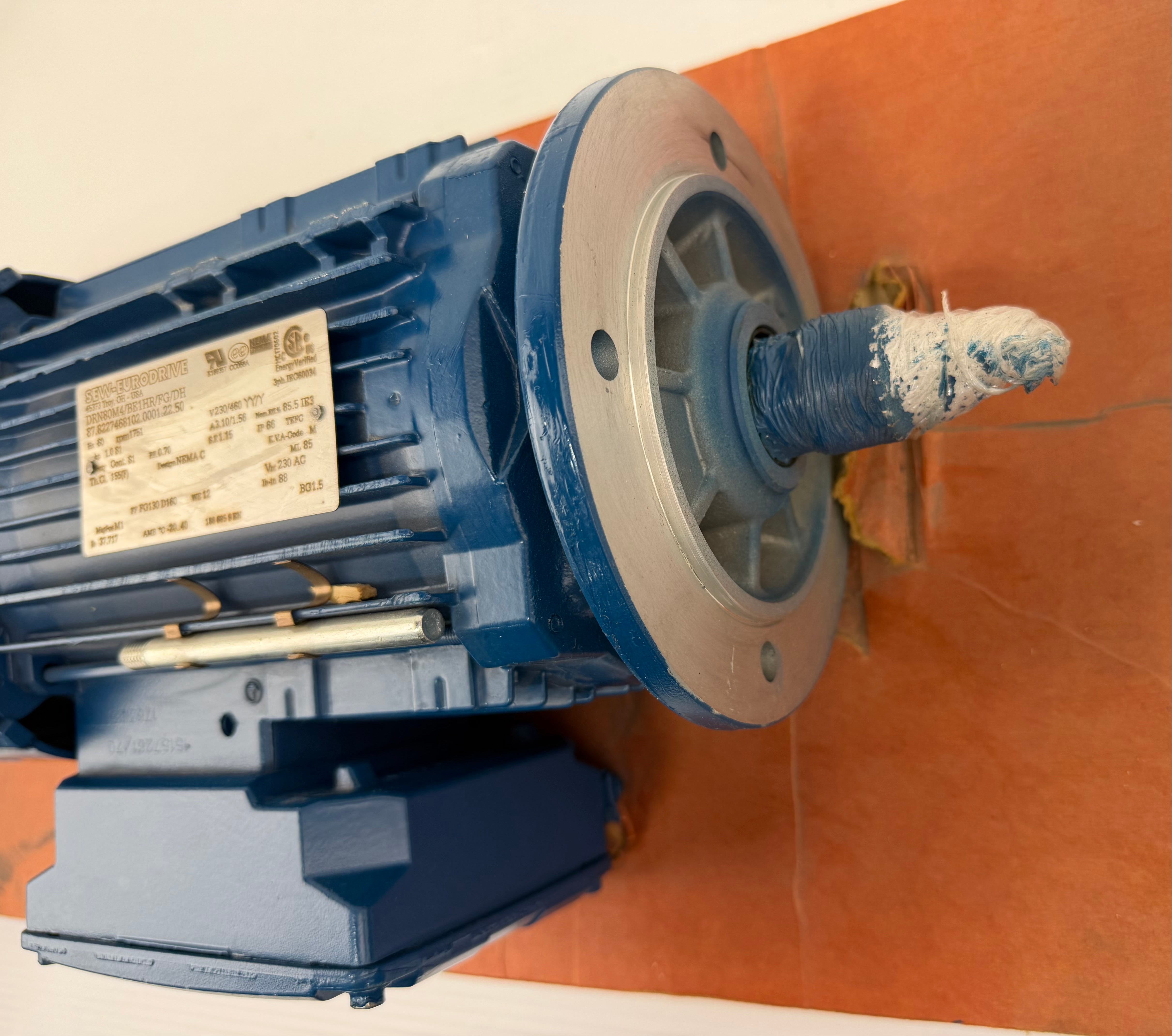

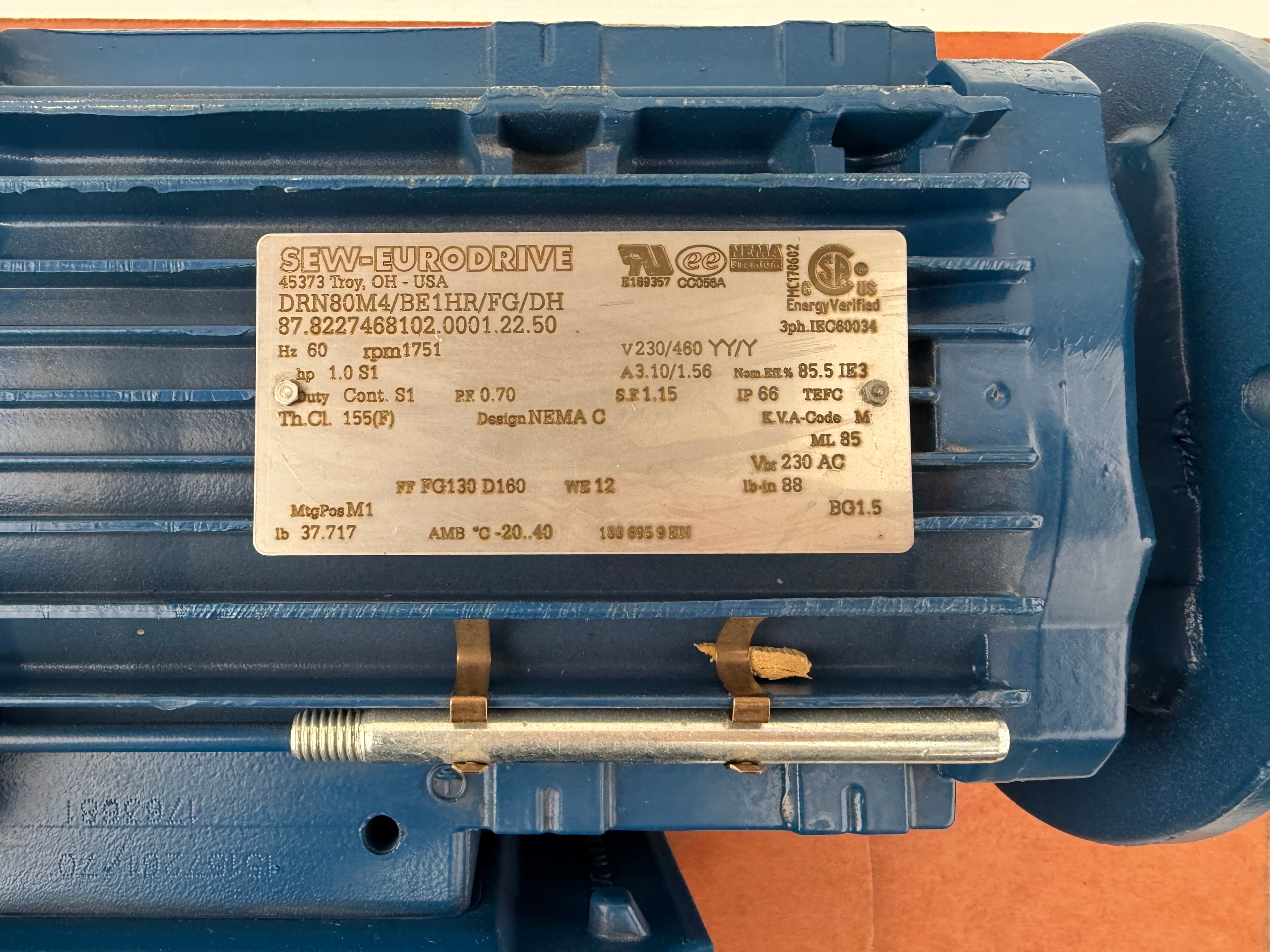

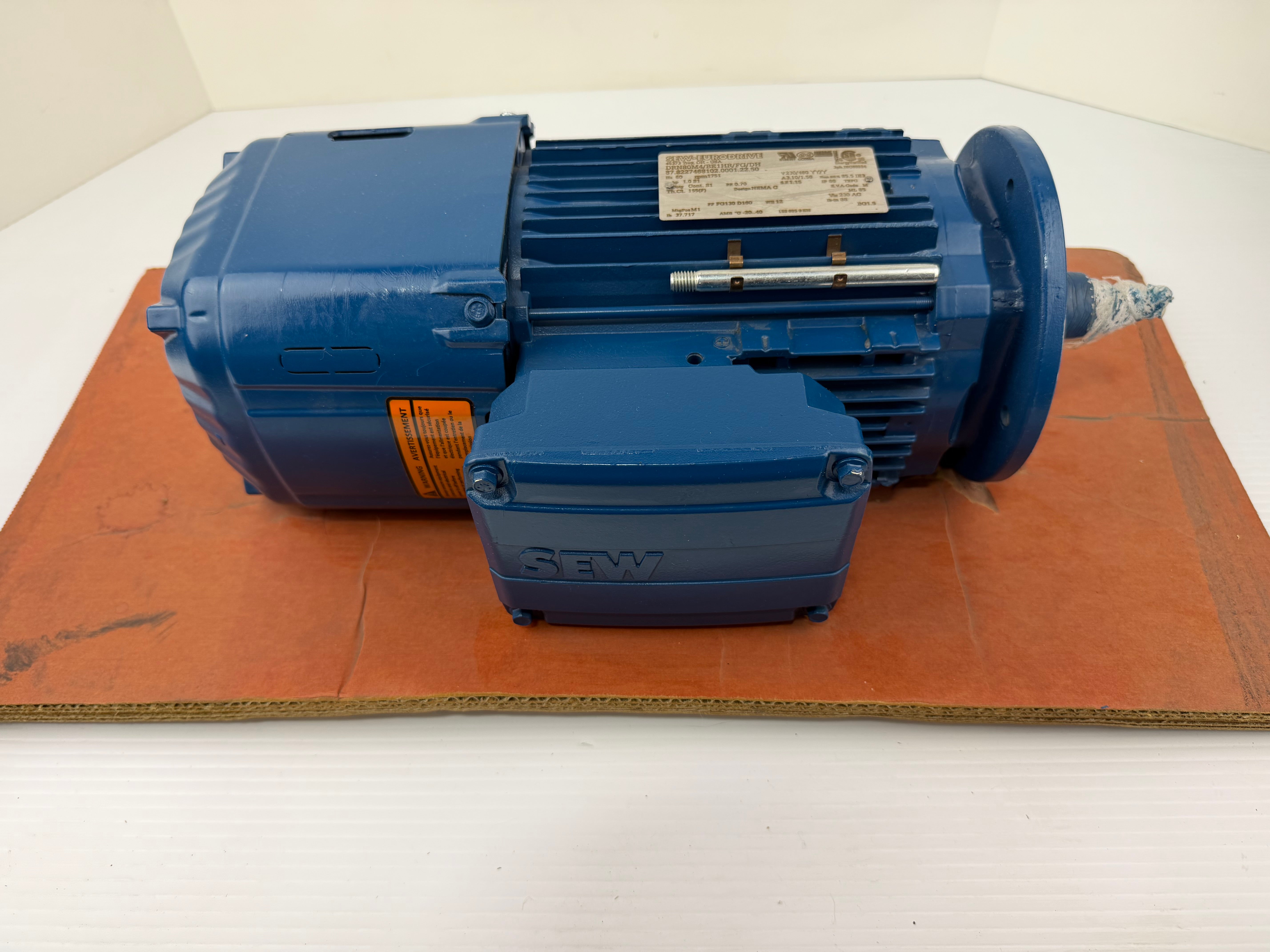

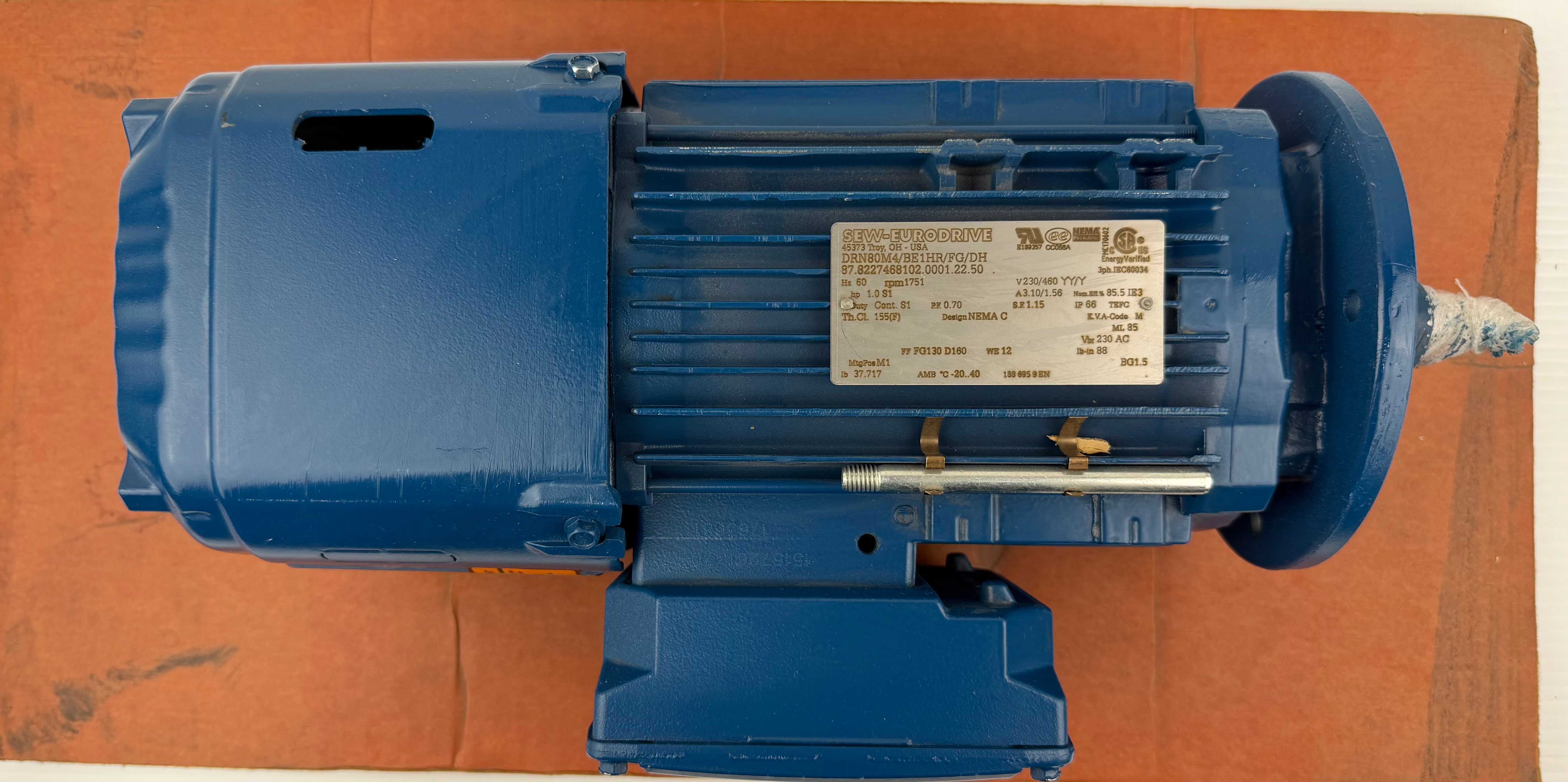

SEW Eurodrive DRN80M4/BE1HR/FG/DH 1HP AC Motor 230/460V 3PH 1751RPM TEFC

SEW Eurodrive DRN80M4/BE1HR/FG/DH 1HP AC Motor 230/460V 3PH 1751RPM TEFC

SEW Eurodrive DRN80M4/BE1HR/FG/DH 1HP AC Motor
Manufacturer: SEW-EURODRIVE
Model: DRN80M4/BE1HR/FG/DH
Part Number: 87.8227468102.0001.22.50
Horsepower: 1 HP
RPM: 1751 RPM
Phase: 3 Phase
Voltage: 230/460 VAC
Frequency: 60 Hz
Current:
3.10A @ 230V
1.56A @ 460V
Service Factor: 1.15
Power Factor: 0.70
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Protection Rating: IP66
Efficiency: IE3 Premium Efficiency
Duty: Continuous (S1)
Insulation Class: F (155°C)
Frame Size: 80M
Mounting Position: M1
Approximate Weight: 37.7 lbs

SEW-EURODRIVE DRN80M4 series industrial AC motor. This premium efficiency TEFC motor is designed for continuous-duty industrial applications including conveyors, material handling systems, pumps, fans, packaging equipment, and OEM machinery.
