Scot Pump 3091K627W 7.5HP Centrifugal Pump 230/460V 3PH WEG 182/4JM NEW

Scot Pump 3091K627W 7.5HP Centrifugal Pump 230/460V 3PH WEG 182/4JM NEW

Scot Pump 3091K627W 7.5HP Centrifugal Pump

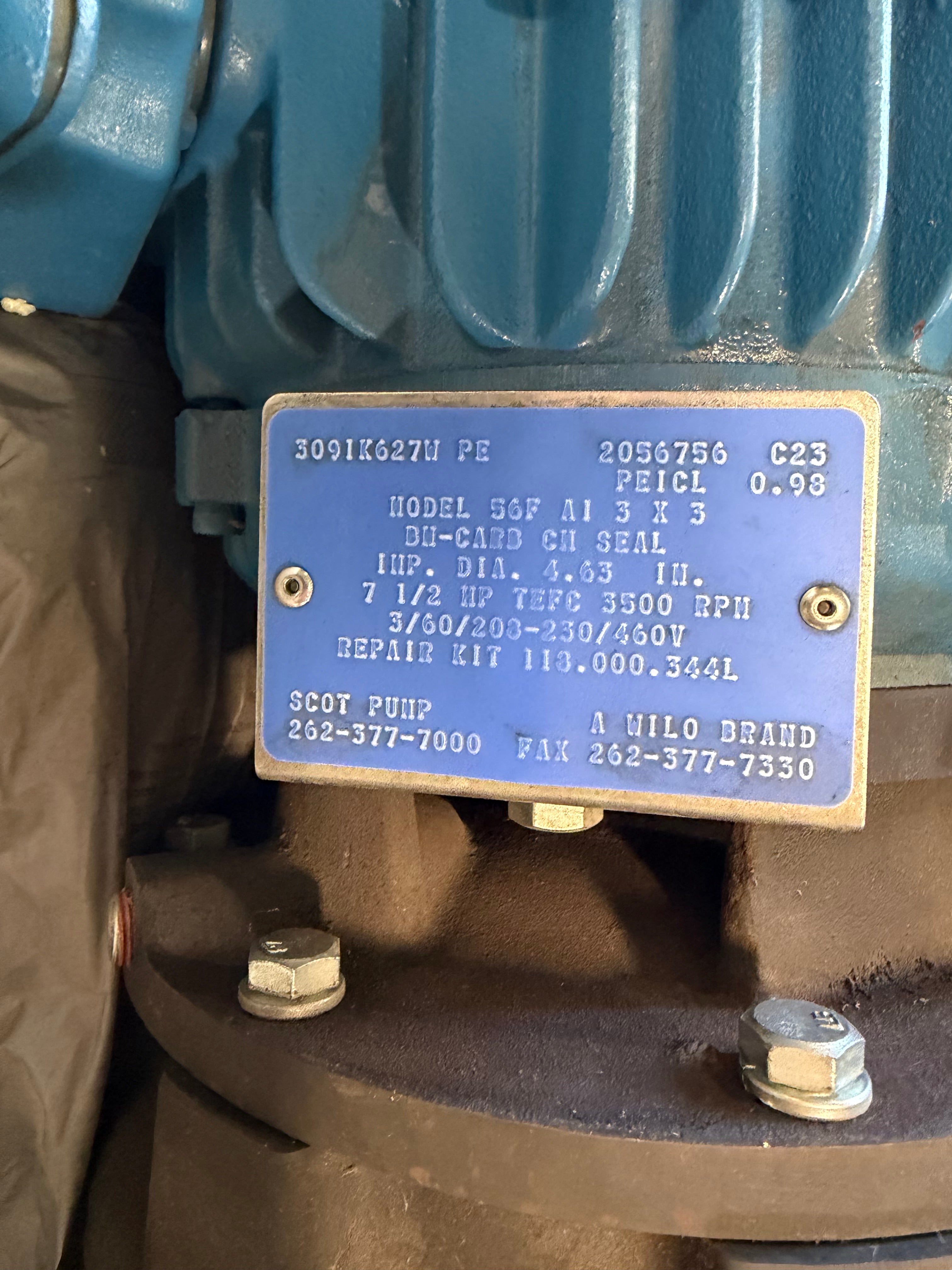

Pump Specifications
Manufacturer: Scot Pump
Model: 3091K627W
Impeller Diameter: 4.63"
Mechanical Seal: Carbon
Pump Type: Close-Coupled Centrifugal Pump
Repair Kit: 113.000.344L

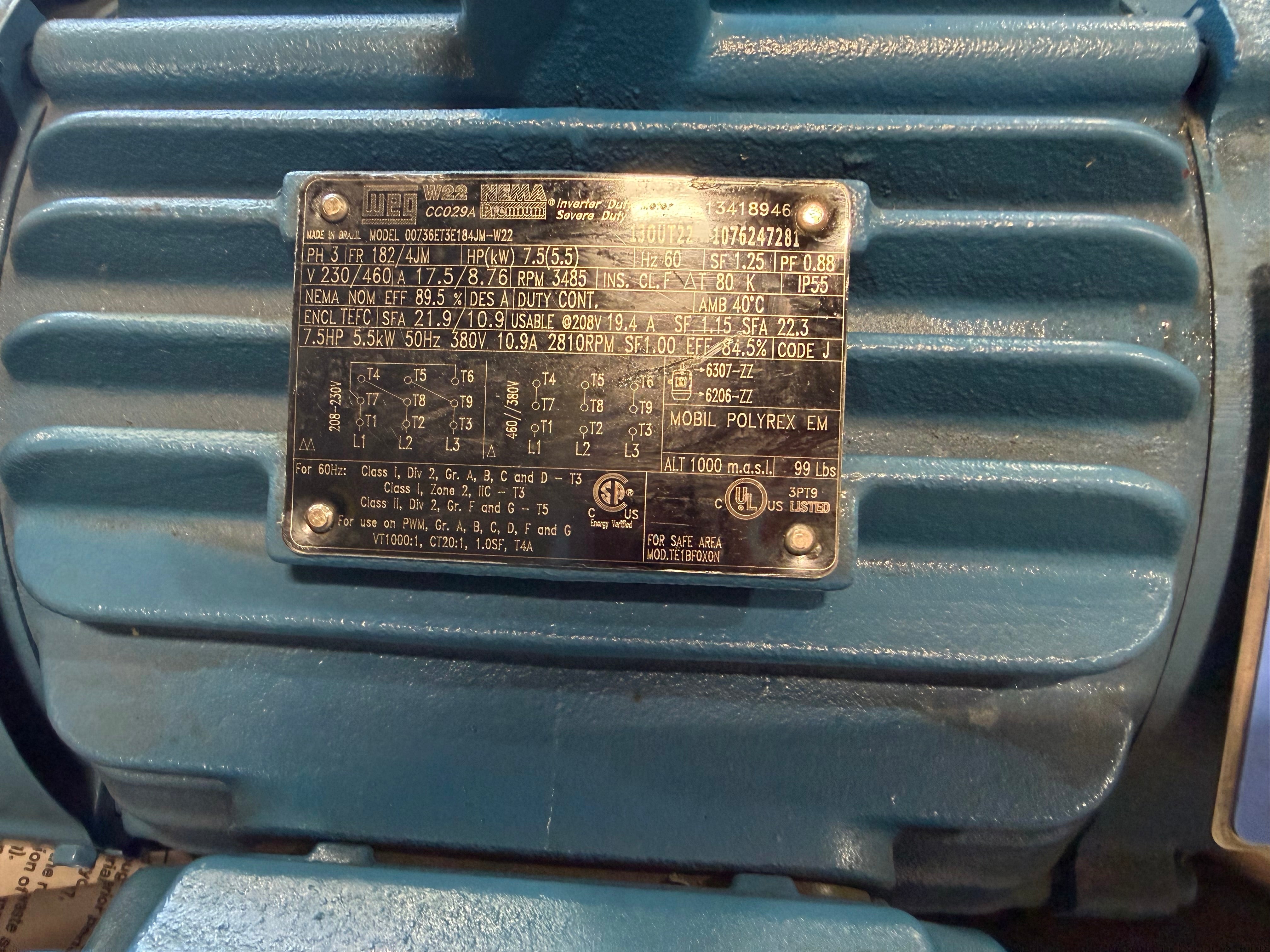

Motor Specifications
Manufacturer: WEG
Model: 00736ET3E184JM-W22
Horsepower: 7.5 HP
Power: 5.5 kW
Frame: 182/4JM
Phase: 3 Phase
Voltage: 230/460 VAC
Frequency: 60 Hz
RPM: 3485
Service Factor: 1.25
Power Factor: 0.88
Full Load Amps:
17.5A @ 230V
8.76A @ 460V
Service Factor Amps:
21.9A @ 230V
10.9A @ 460V
Enclosure: TEFC
Protection Rating: IP55
Insulation Class: F
NEMA Efficiency: 89.5%
NEMA Design: A
Duty: Continuous
Code Letter: J
Severe Duty: Yes
Inverter Duty: Yes
Hazardous Location Ratings:
Class I, Div 2 Groups A, B, C & D
Class I Zone 2 IIC
Class II Div 2 Groups F & G
Weight: 99 lbs

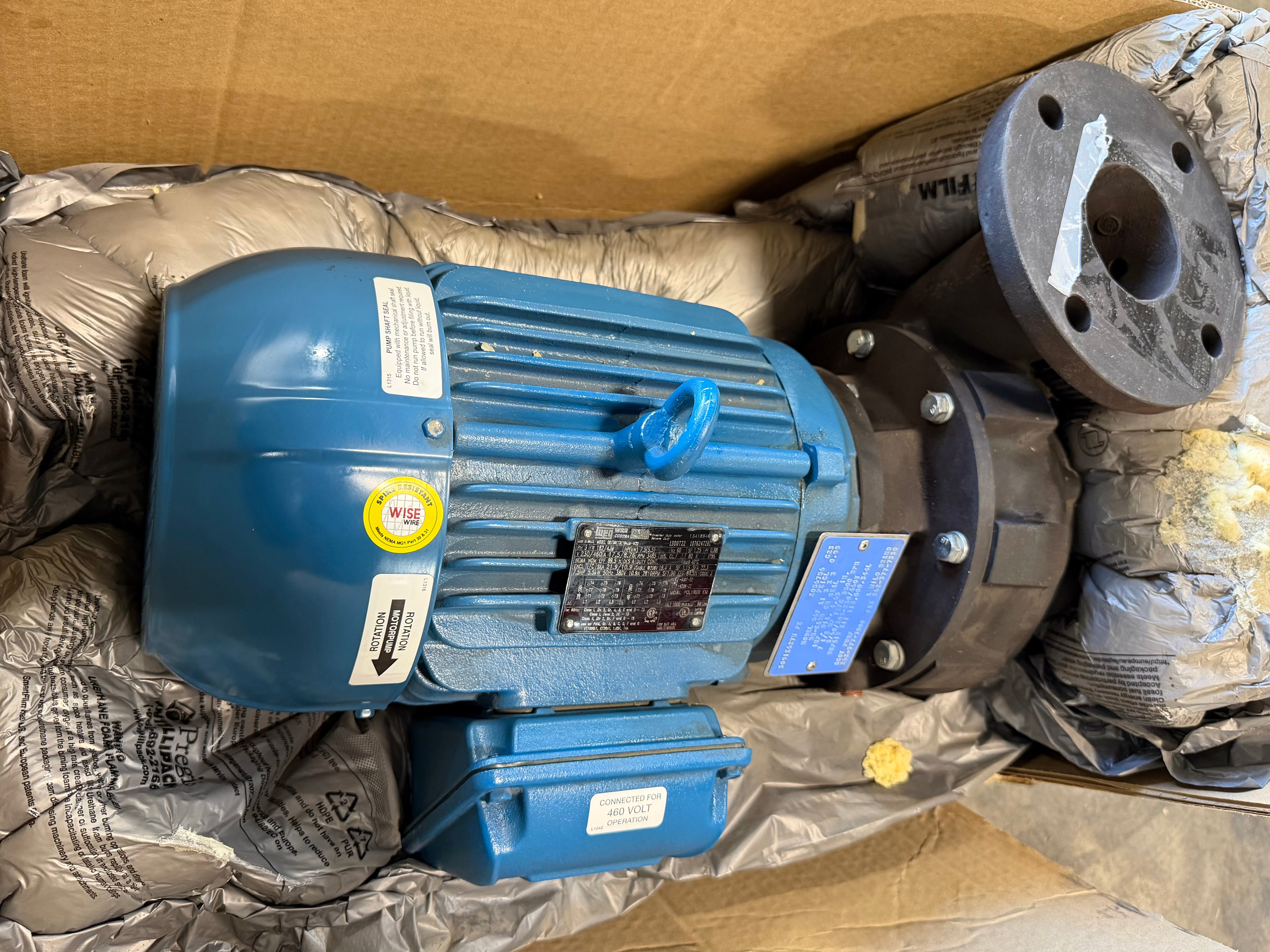

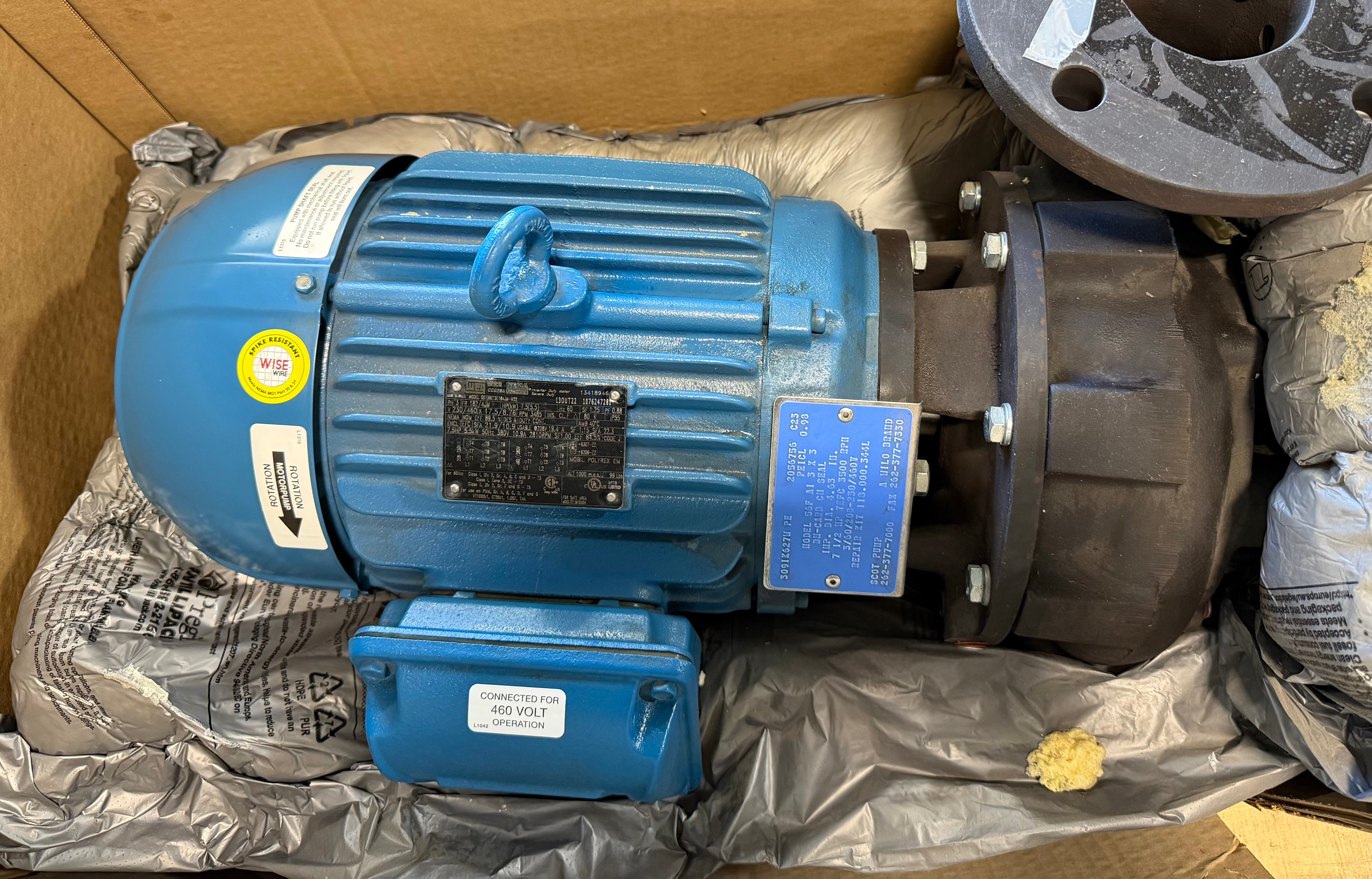

Scot Pump model 3091K627W close-coupled centrifugal pump powered by a premium efficiency WEG severe-duty inverter-duty motor. Designed for demanding industrial pumping applications including process water, cooling systems, circulation systems, irrigation, transfer systems, and general industrial service.

This unit features a cast iron pump housing, carbon mechanical seal, and a WEG severe-duty motor suitable for VFD operation.
