NAP GLADU D90-0690 Diamond Groove Cutter Set ETP HYDRO-GRIP 65mm Bore w/ Case

NAP GLADU D90-0690 Diamond Groove Cutter Set ETP HYDRO-GRIP 65mm Bore w/ Case

NAP GLADU D90-0690 Diamond Groove Cutter Set ETP HYDRO-GRIP 65mm Bore w/ Case

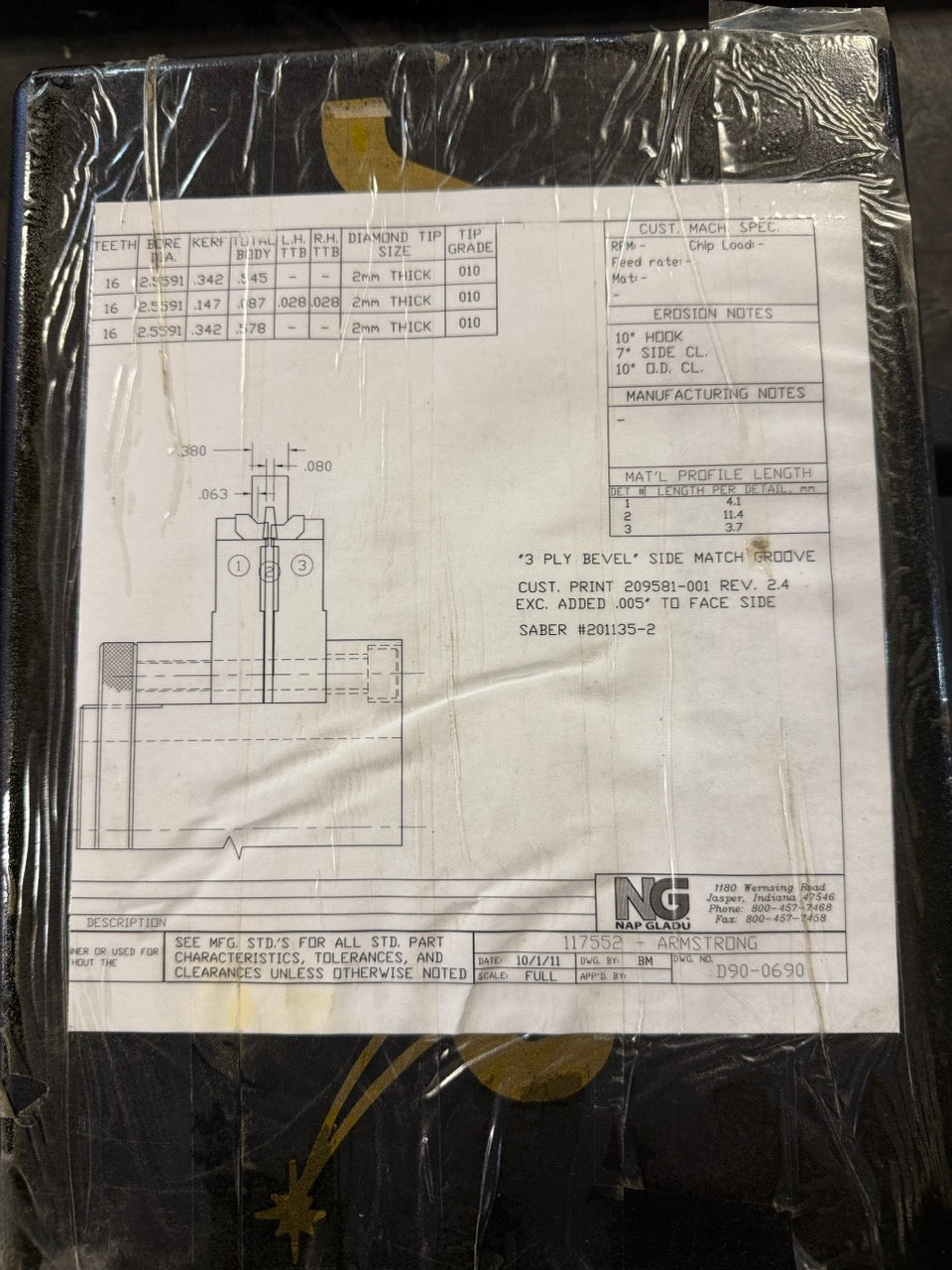

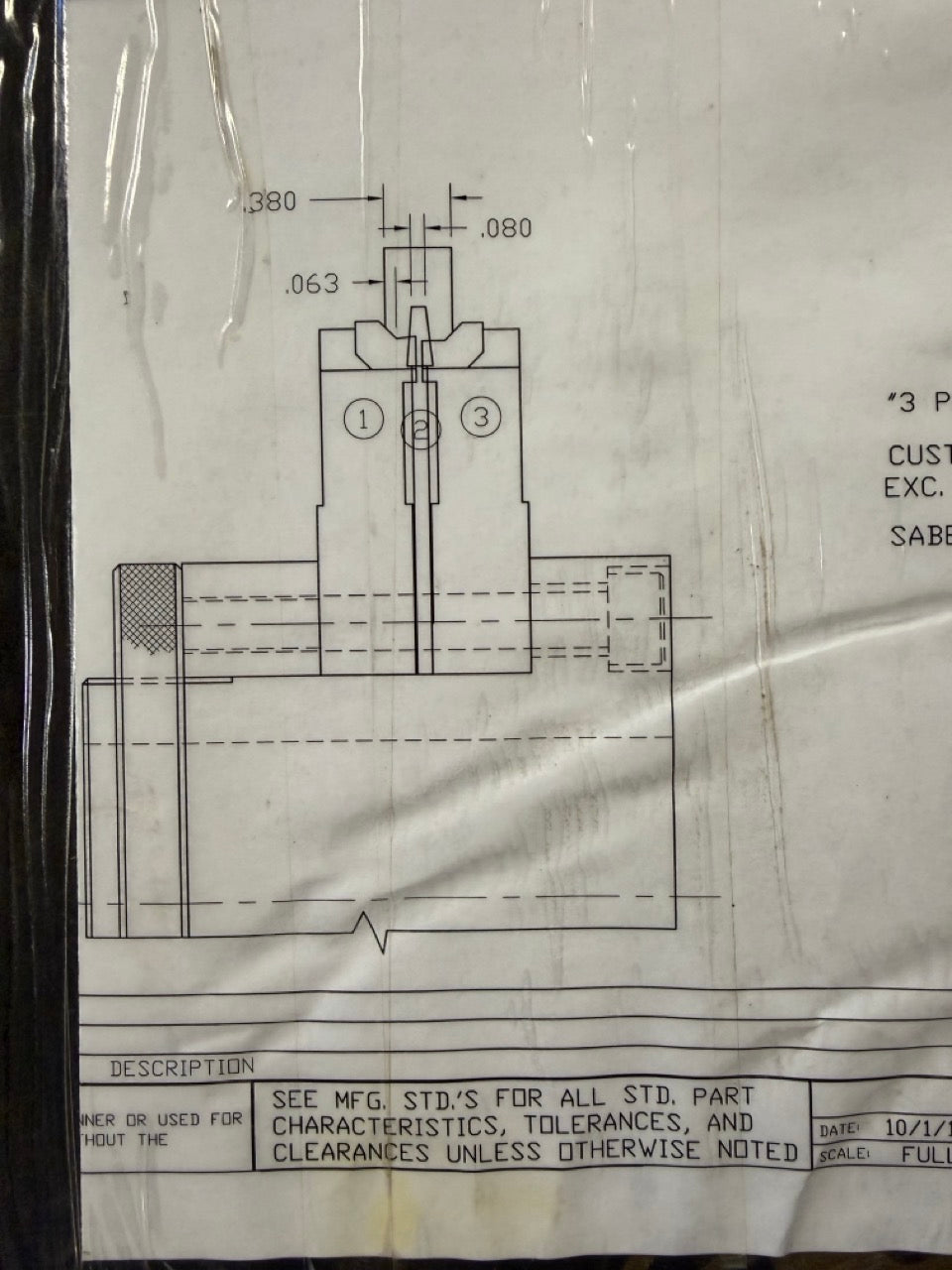

The engineering drawing identifies the tooling as a "3 Ply Bevel" side-match groove design. Buyer must verify the cutting profile and machine compatibility against the pictured drawing.

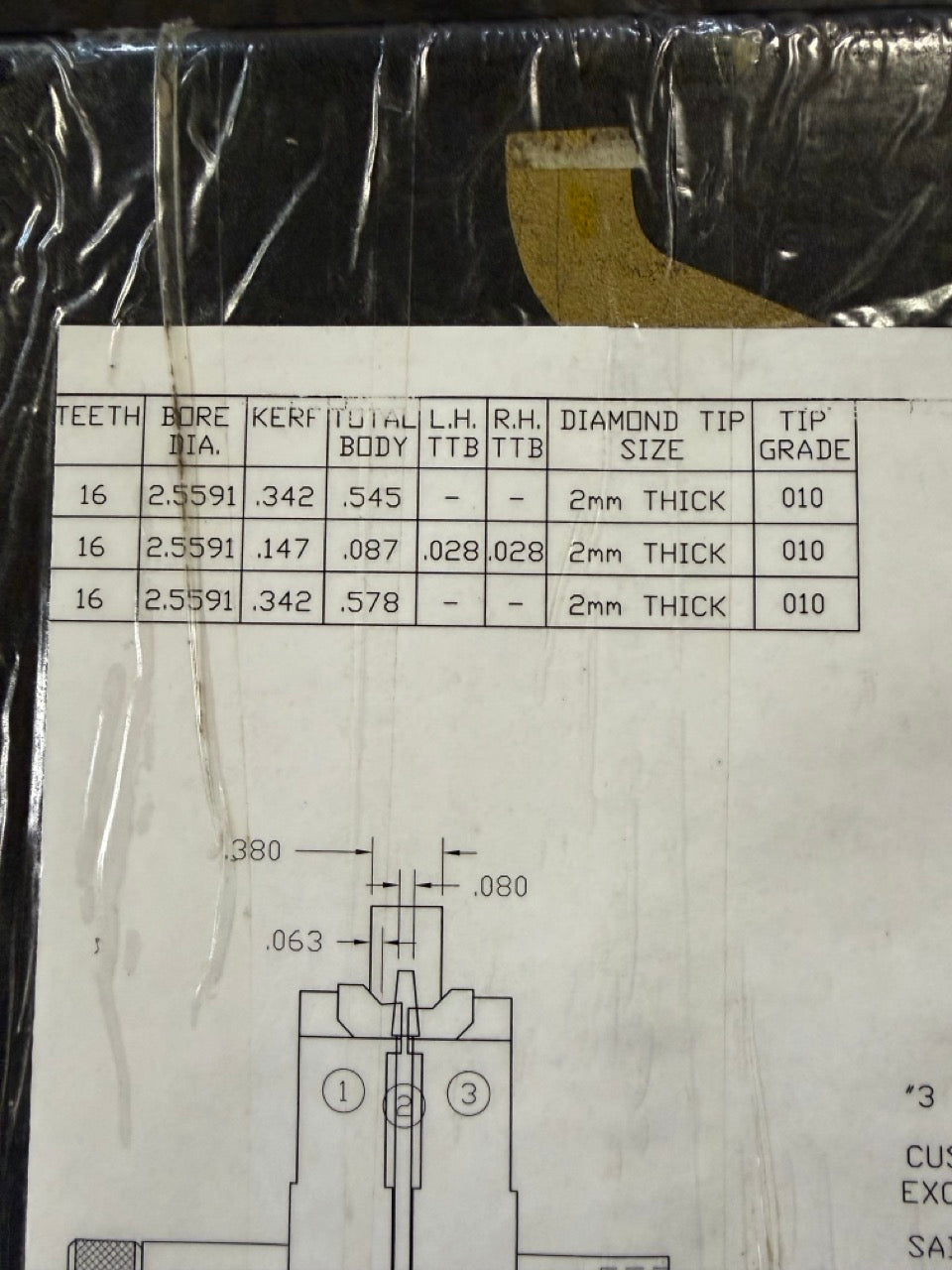

Identification and specifications from the drawing:

Tooling manufacturer: NAP GLADU
Drawing number: D90-0690
Reference: 117552 - Armstrong
Customer print: 209581-001, Rev. 2.4
SABER reference: 201135-2
Drawing date: 10/1/11

Three cutter details, each specified with 16 teeth
Bore: 2.5591 inches / approximately 65mm
Diamond tip specification: 2mm thick
Tip grade: 010
Specified cutting widths: .342", .147", and .342"

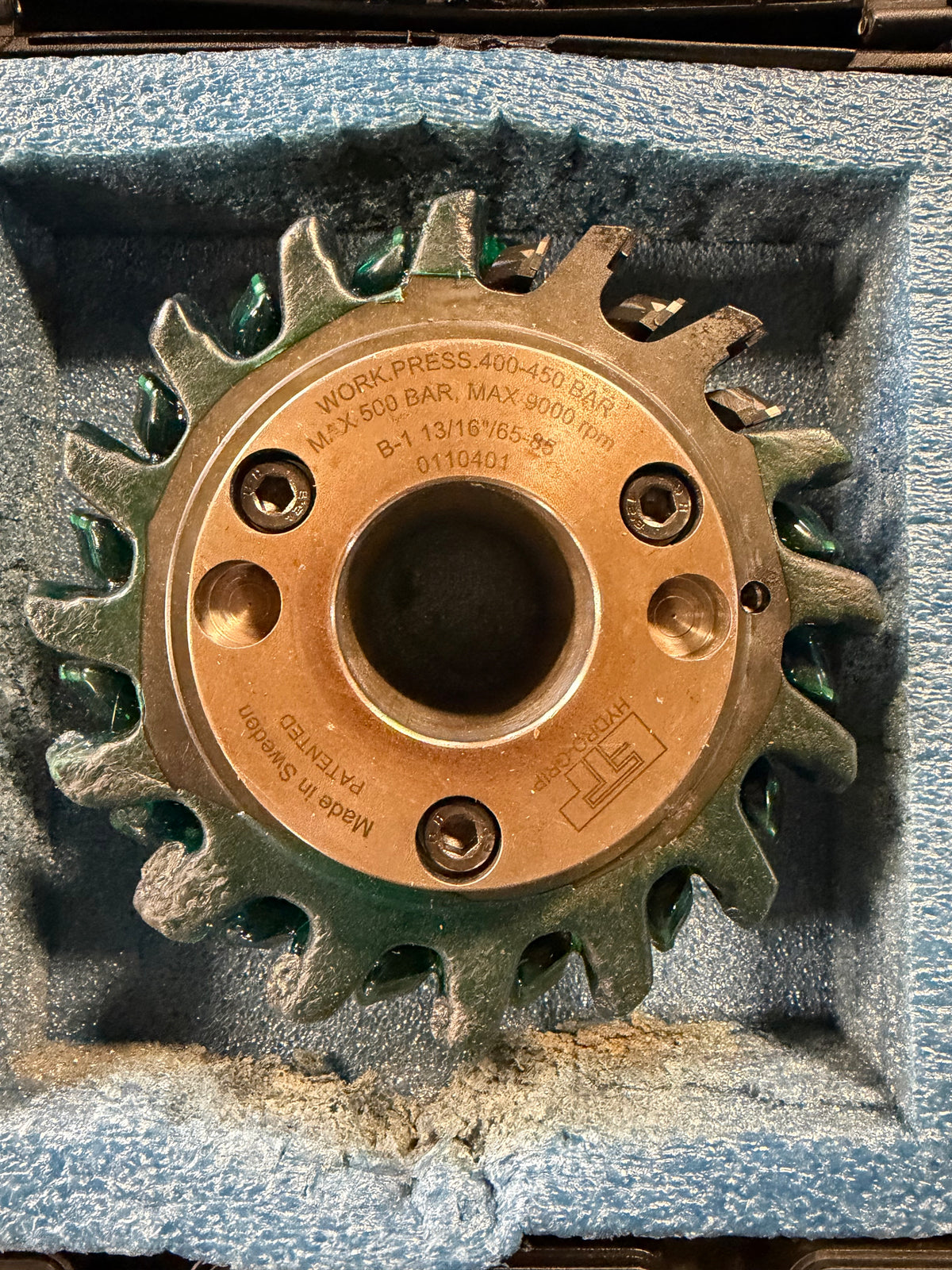

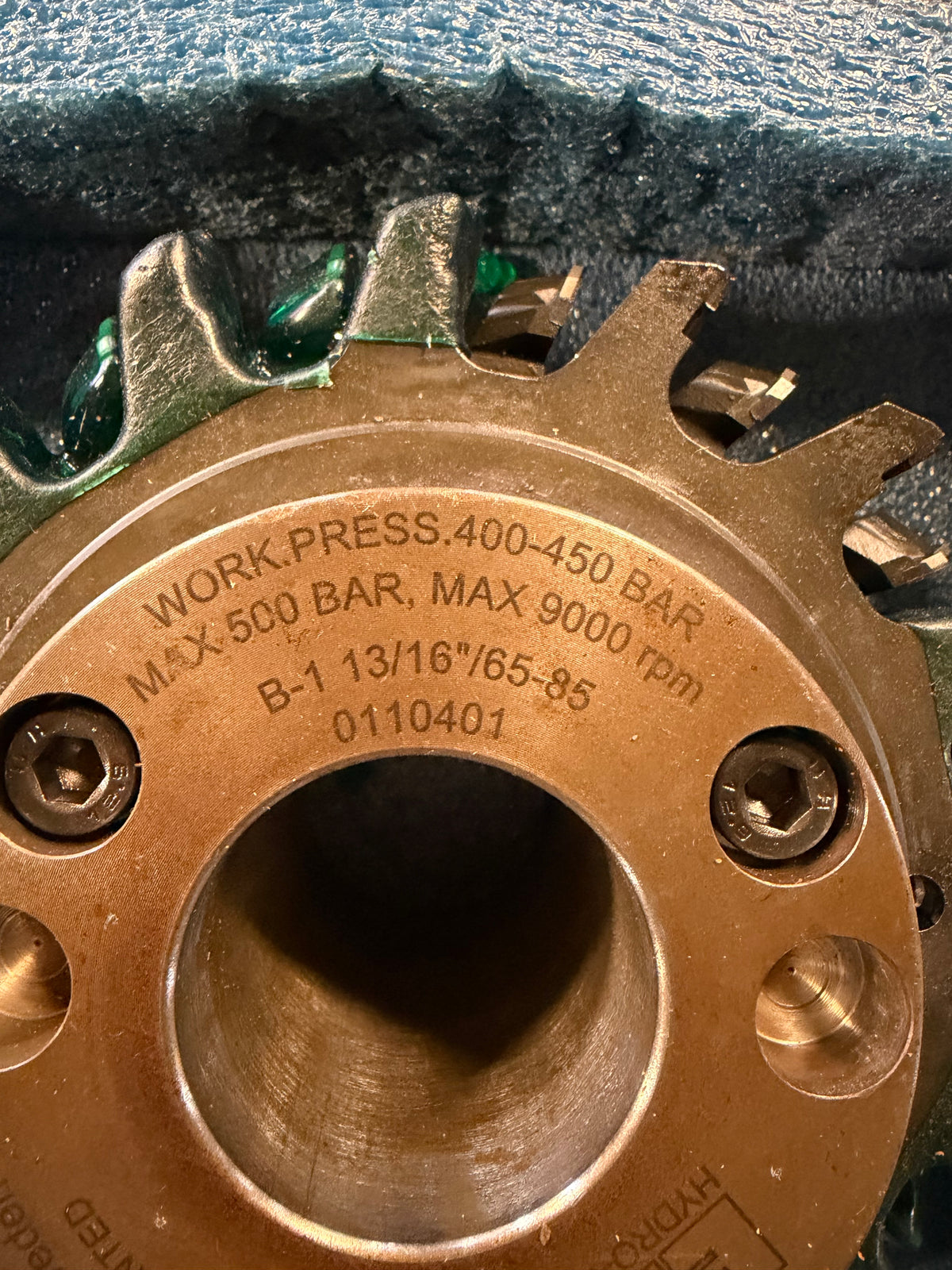

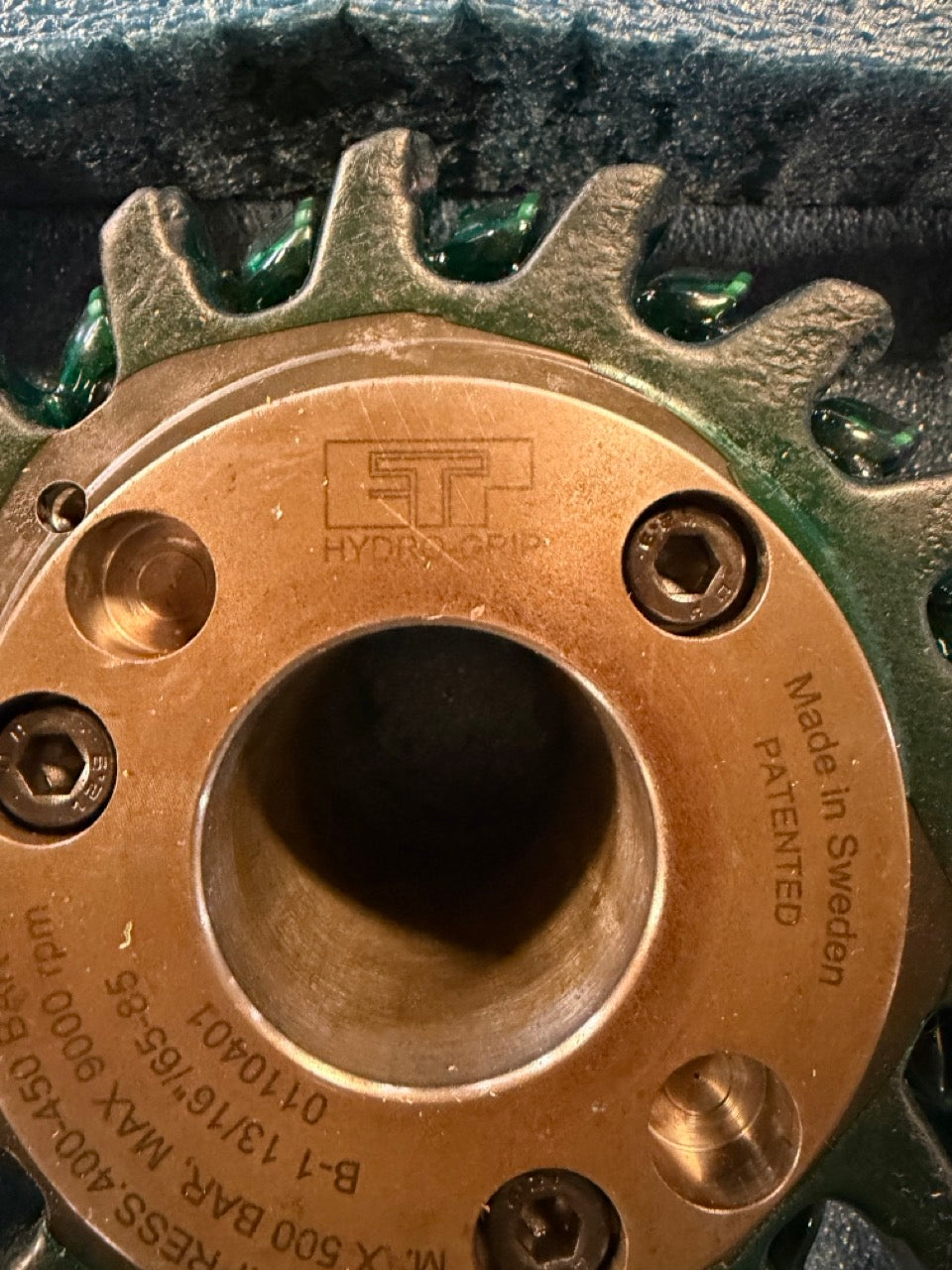

Hydraulic hub markings:
ETP HYDRO-GRIP
B-1 13/16"/65-85
Additional marking: 0110401
Working pressure: 400-450 bar
Maximum pressure: 500 bar
Maximum speed marking: 9,000 RPM
Made in Sweden

The RPM and pressure figures above are hub markings; the complete cutter assembly's operating limits must be verified before use.

Included:

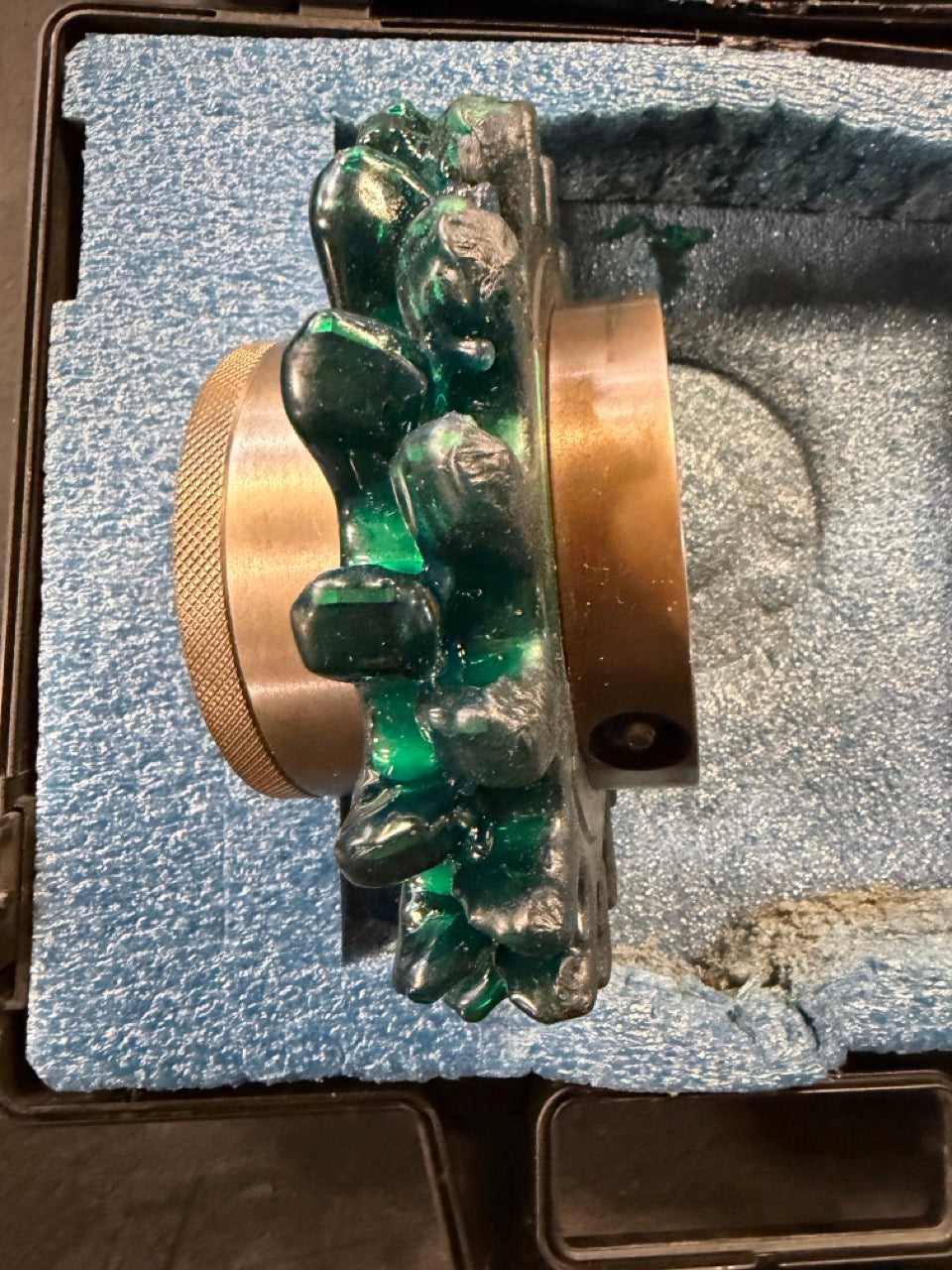

Cutter assembly and hydraulic hub shown
Fitted storage case

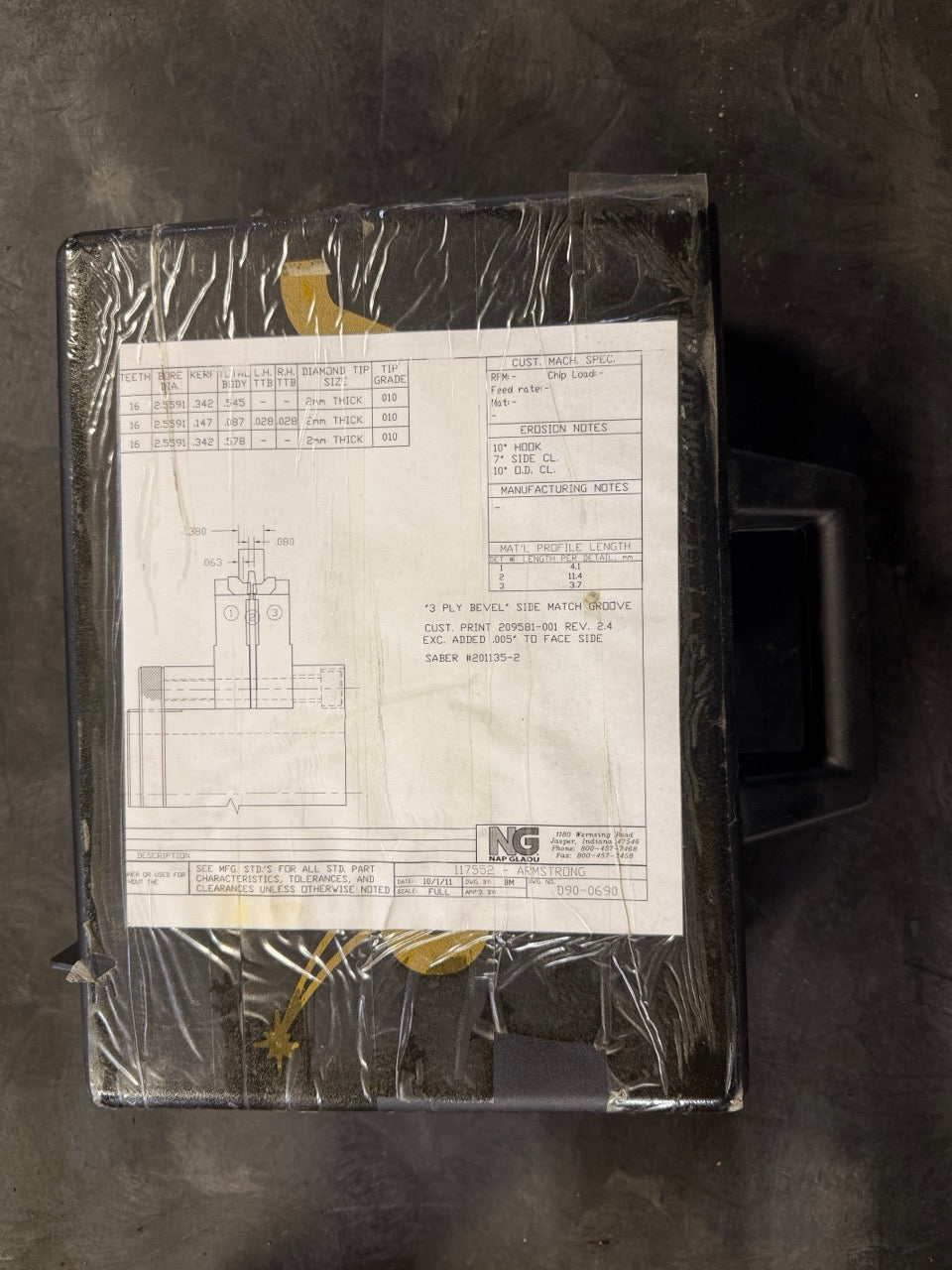

Engineering drawing attached to the case

Please examine all photos for the exact configuration, markings, and condition. Buyer is responsible for confirming dimensions, cutting profile, machine fit, and operating requirements. Professional inspection is recommended before installation.

You will receive the exact items pictured.
