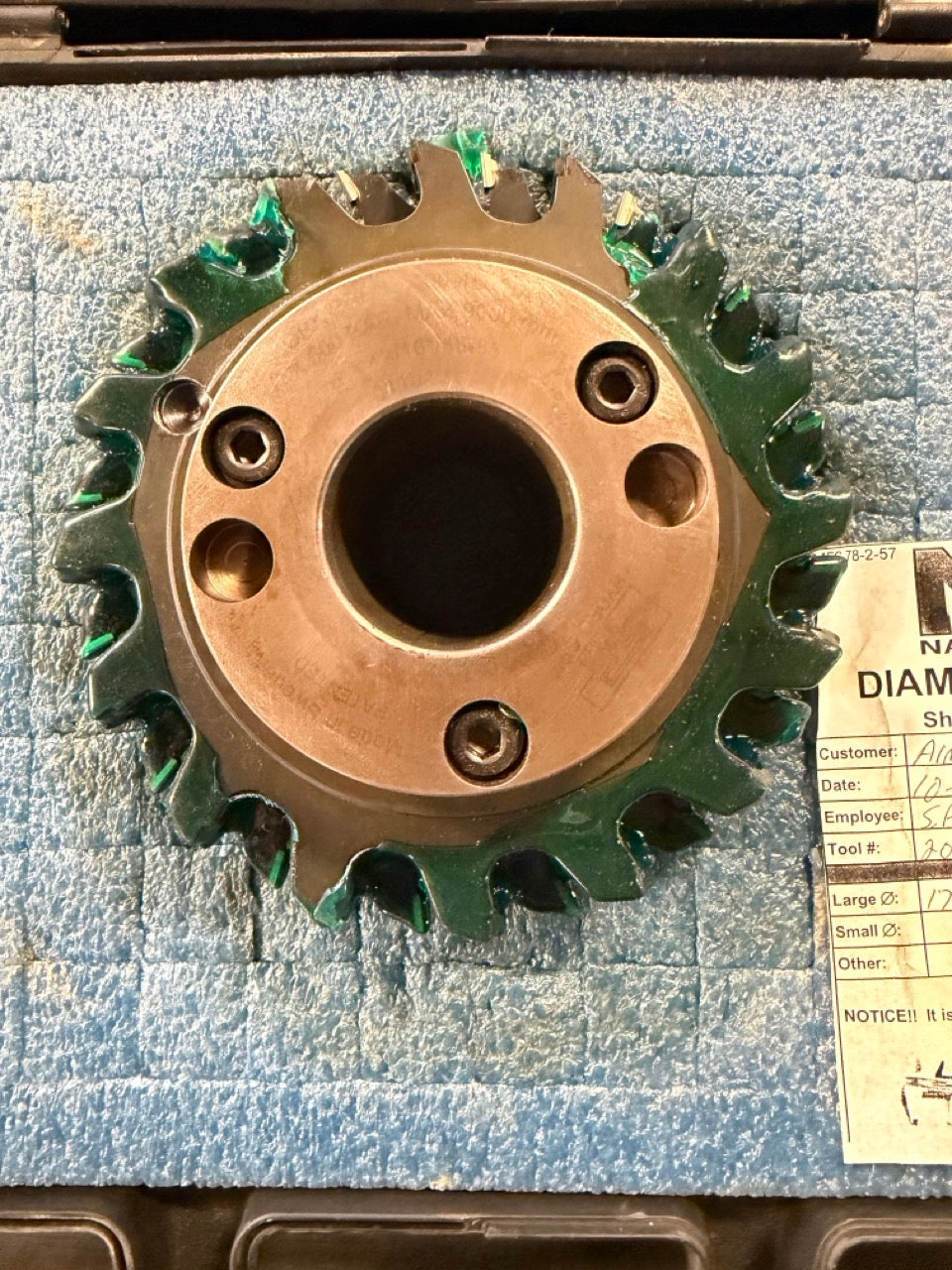

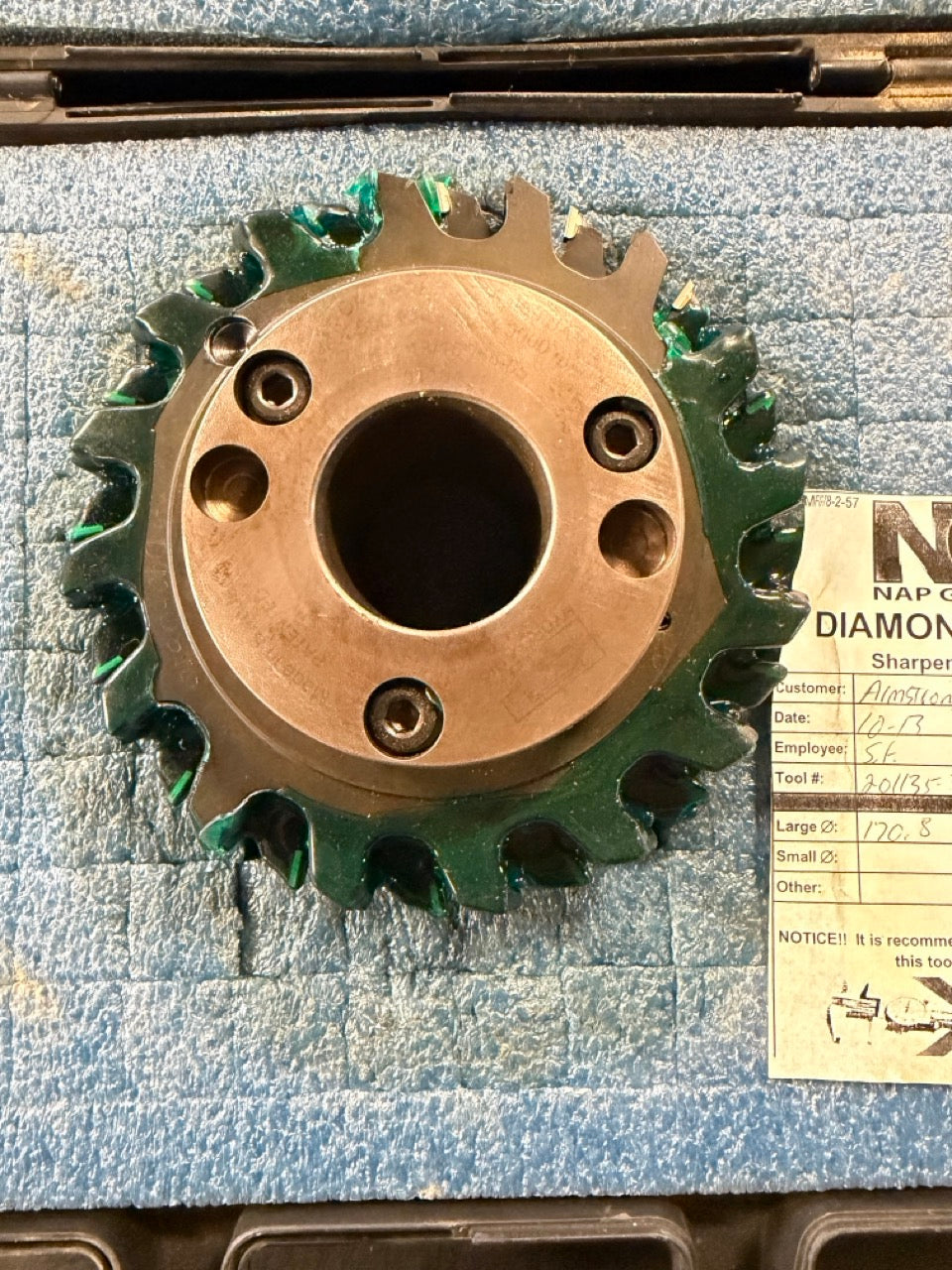

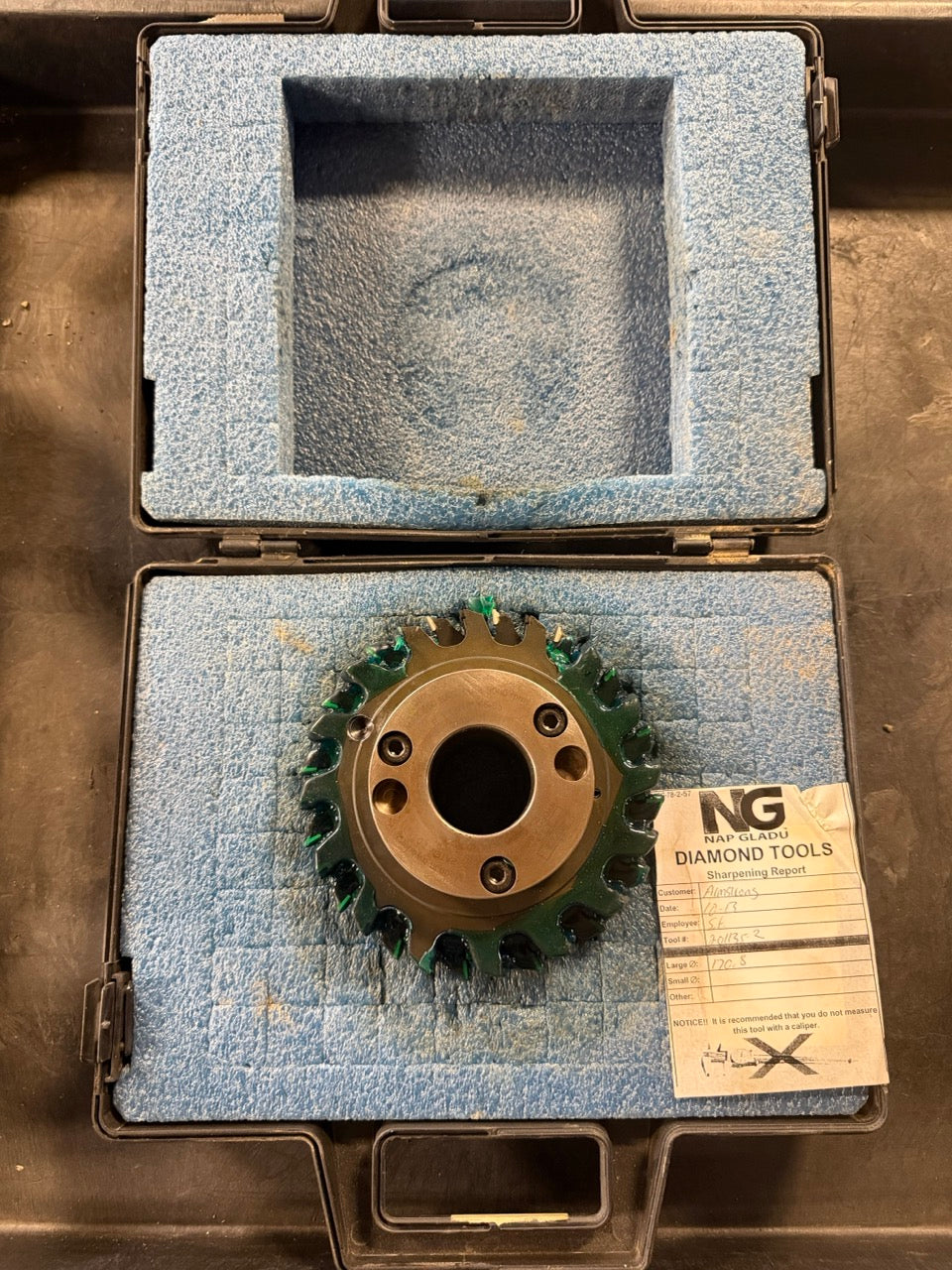

NAP GLADU custom diamond-tipped tongue/profile cutter assembly with ETP HYDRO-GRIP hydraulic clamping hub, fitted storage case, and accompanying engineering drawing.

The drawing identifies a 3 Ply Bevel" side-match tongue design associated with Armstrong. Specialized industrial woodworking tooling for producing the tongue-side mating profile. Buyer must verify the profile and machine compatibility against the pictured drawing.

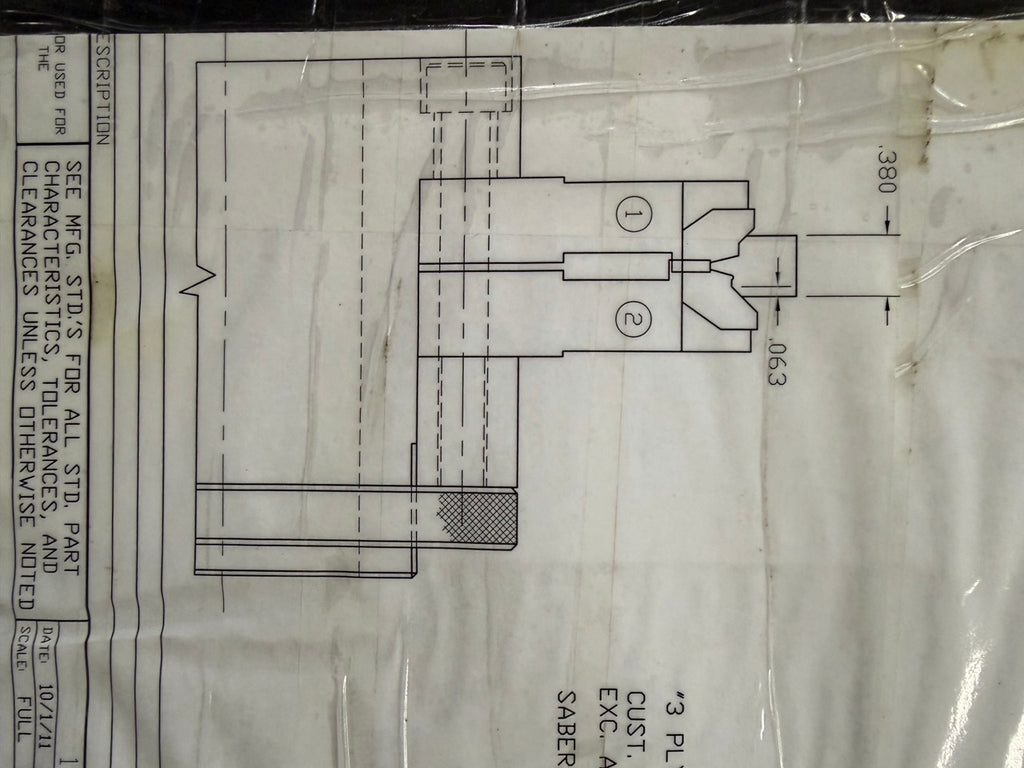

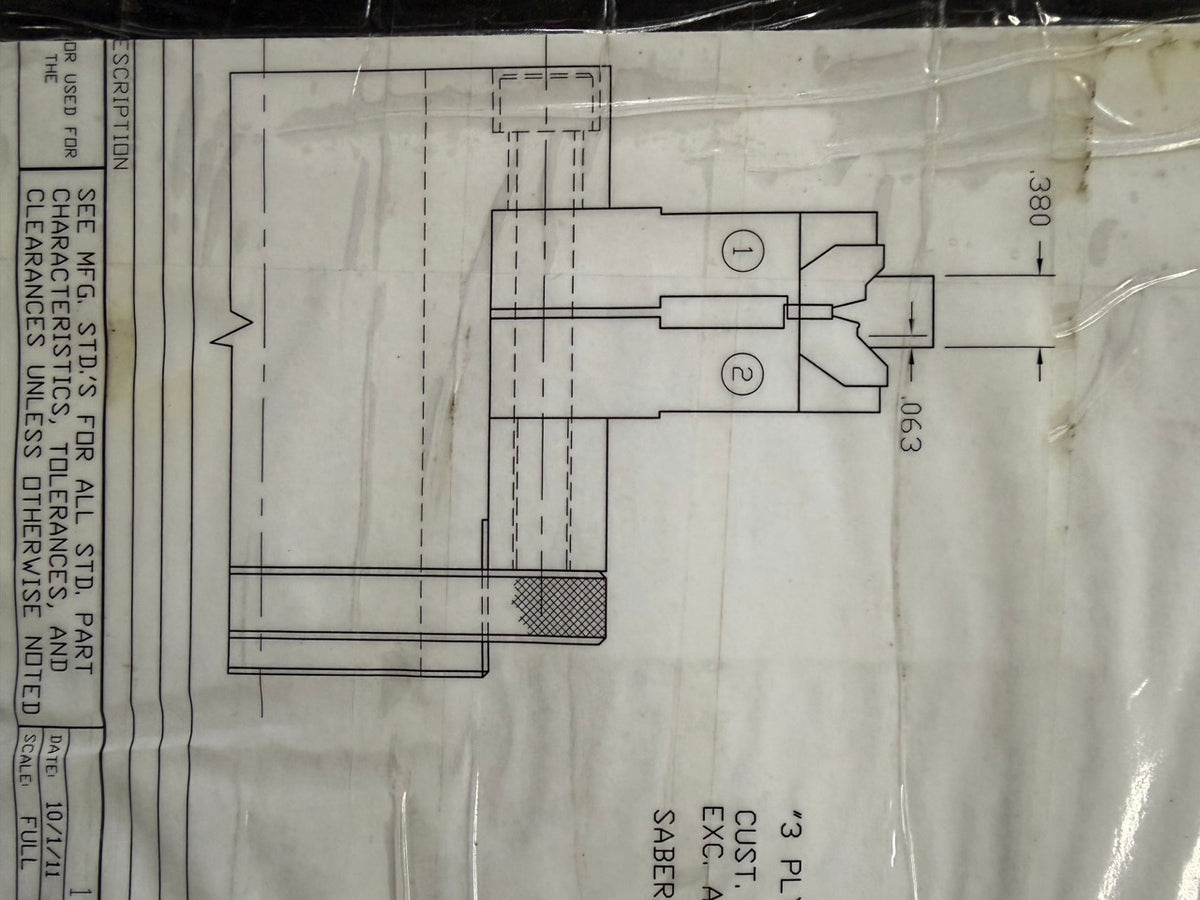

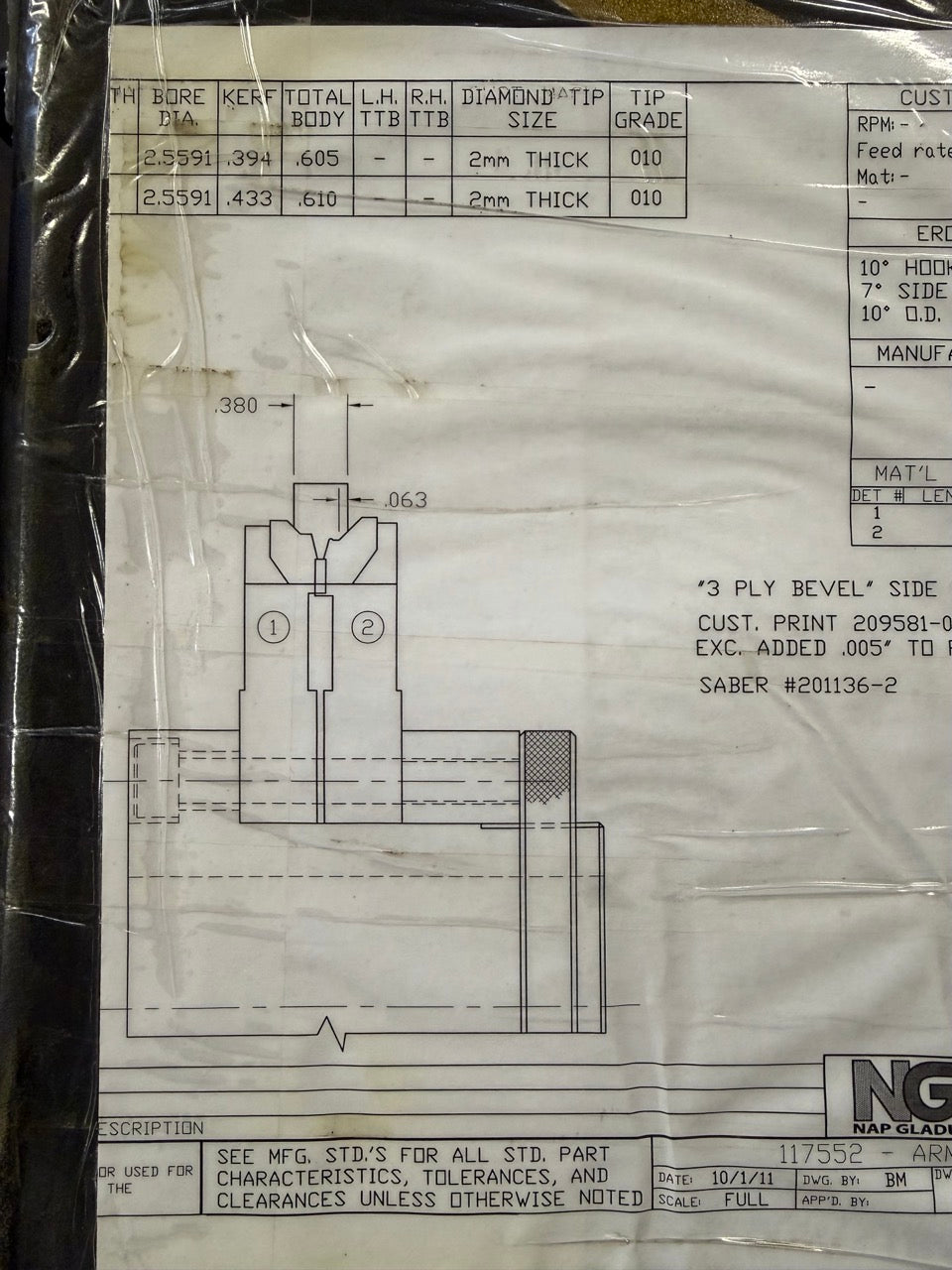

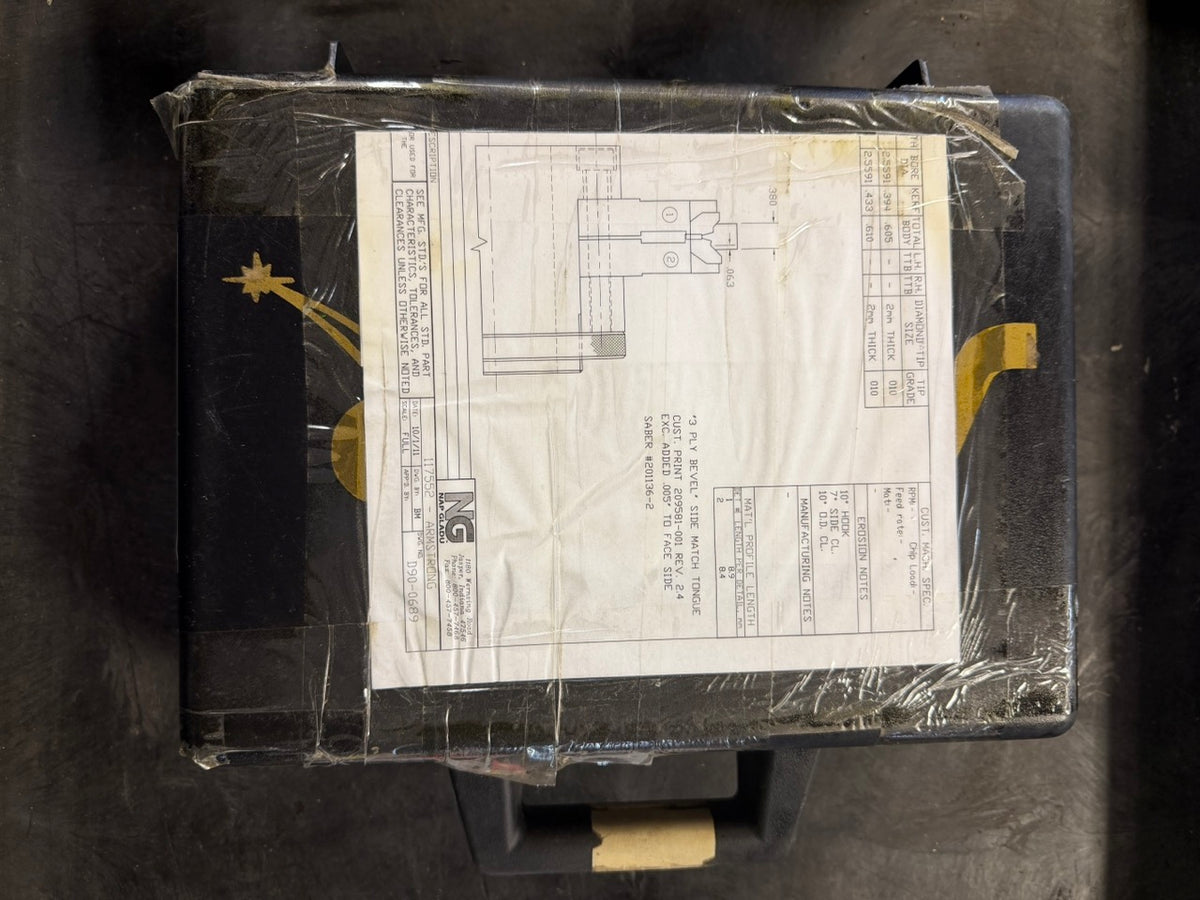

Specifications from the accompanying drawing
Manufacturer: NAP GLADU
Drawing number: D90-0689
Reference: 117552 - Armstrong
Customer print: 209581-001, Rev. 2.4
SABER reference: 201135-2
Drawing date: 10/1/11
Two cutter details

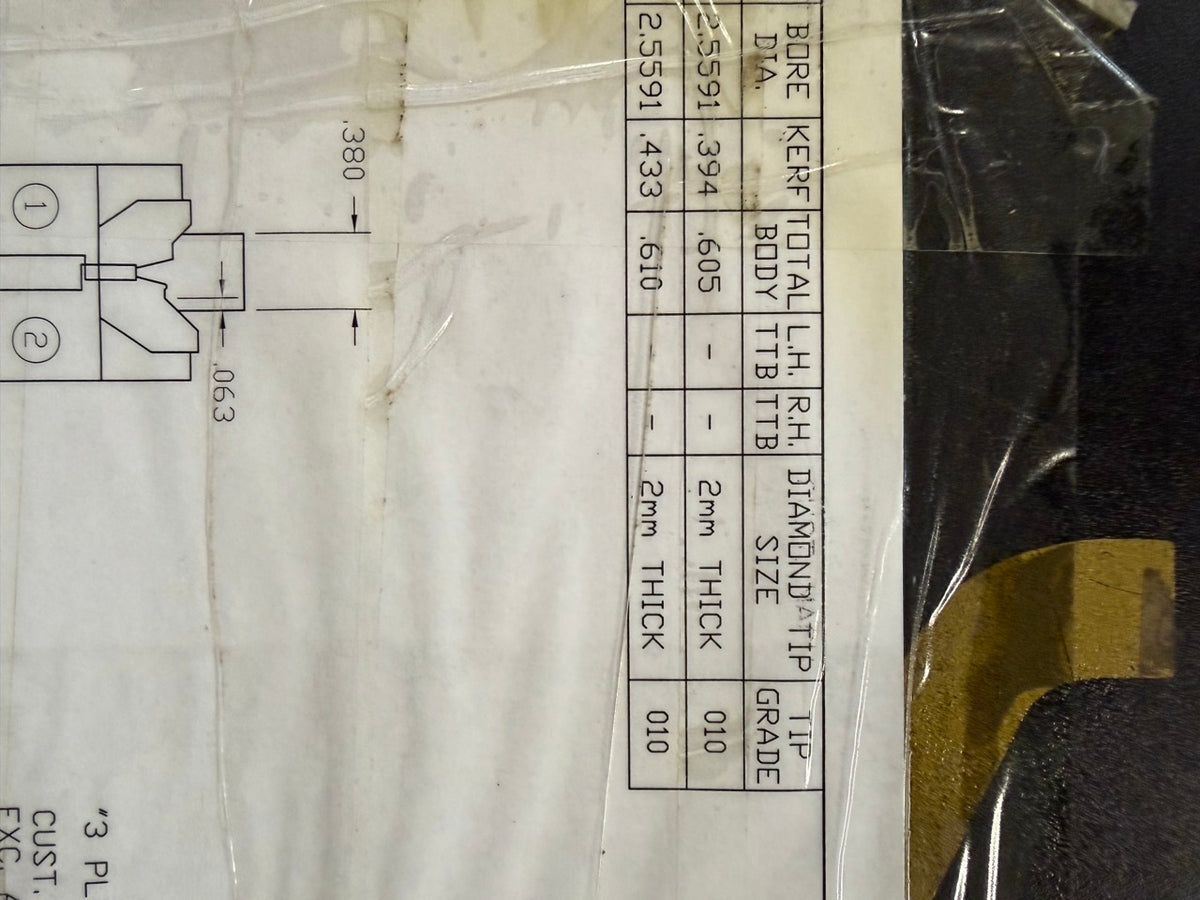

Cutter bore specification: 2.5591 inches / approximately 65mm
Specified cutting widths: .394" and .433"
Diamond tips: 2mm thick
Tip grade: 010
Drawing note: Extra .005" added to face side

The 65mm bore specification applies to the cutters shown in the drawing. The hydraulic hub's spindle opening must be verified separately.

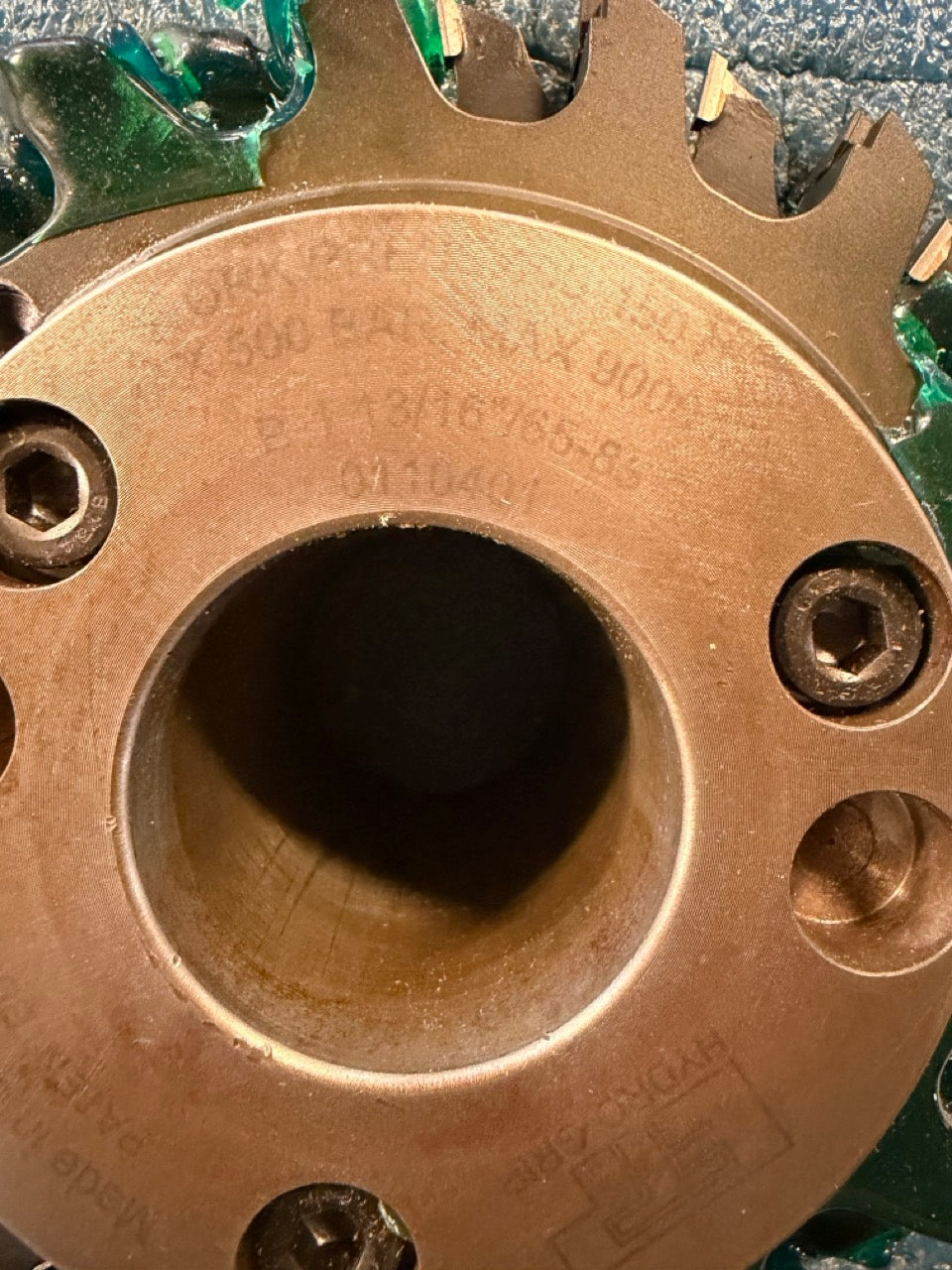

Hydraulic hub
ETP HYDRO-GRIP

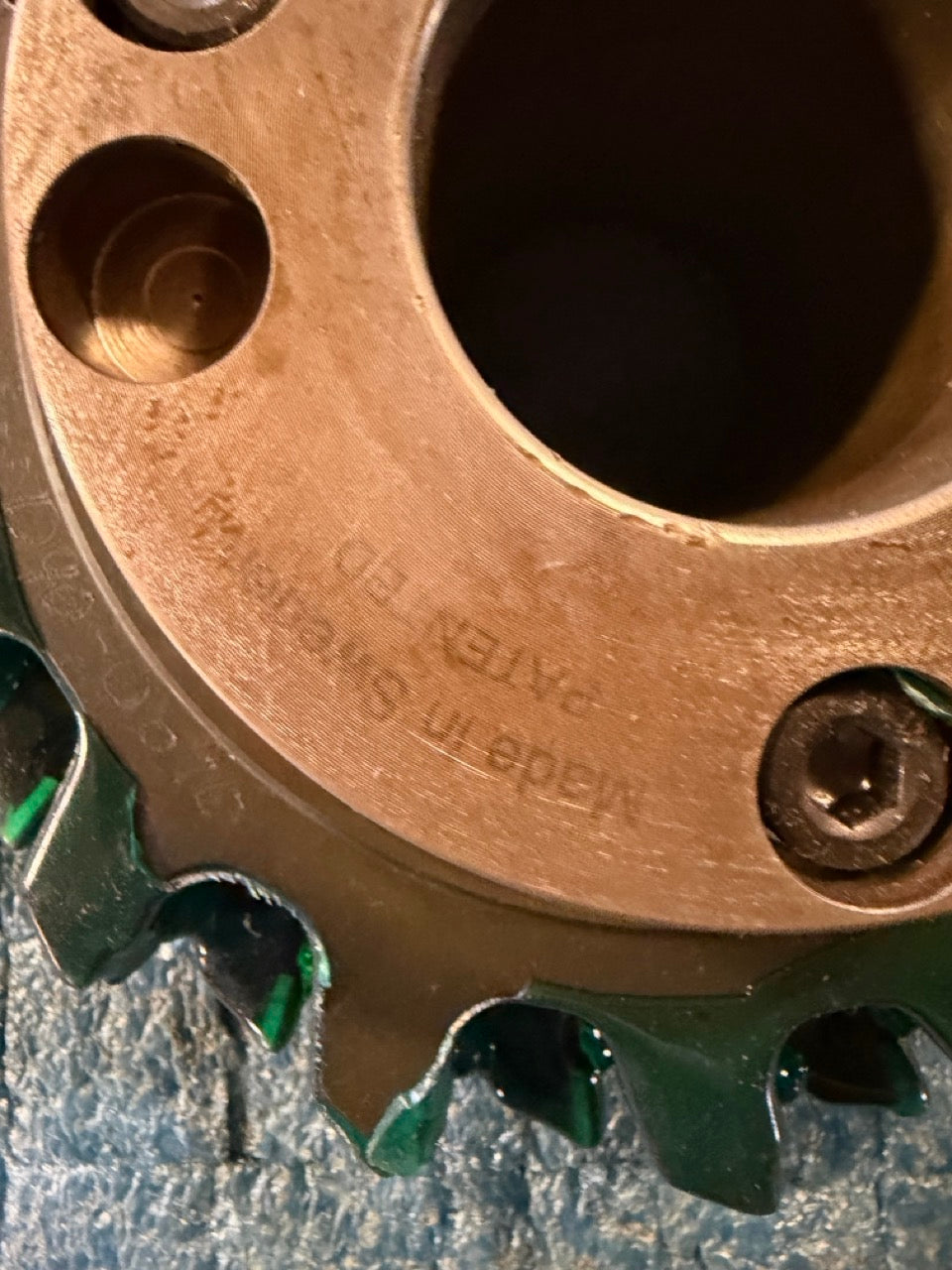

Made in Sweden
Working-pressure marking: 400-450 bar
Maximum-pressure marking: 500 bar

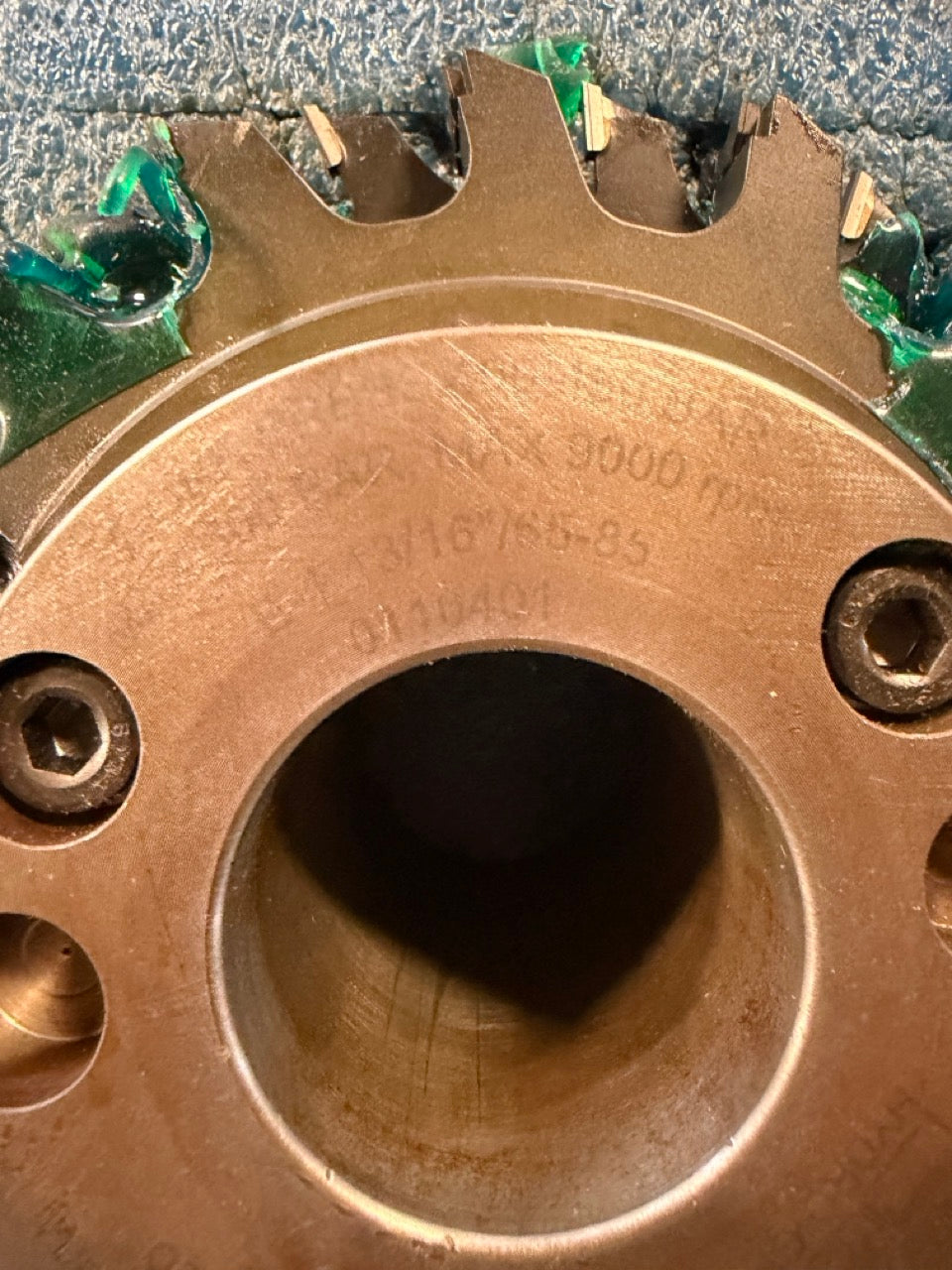

Maximum-speed marking: 9,000 RPM

Pressure and speed figures are hub markings, not a confirmed operating rating for the complete cutter assembly.

Previous use and sharpening history are unknown
