Description

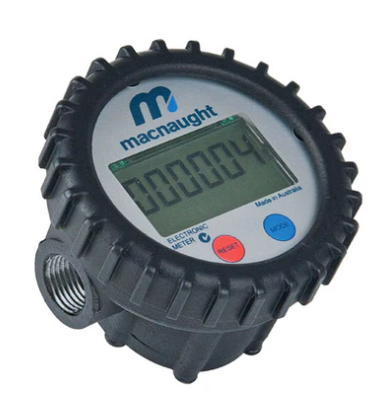

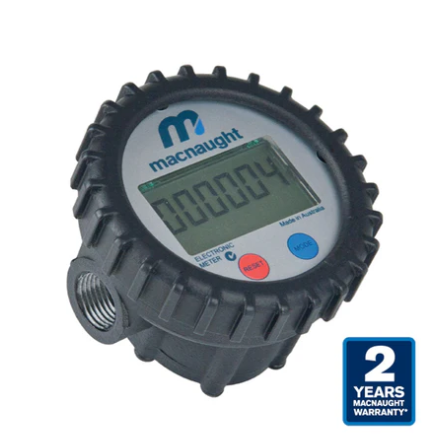

Macnaught In-line Oil Flow Meter IM012E-02 ***
In-line Oval Gear Oil Flow Meter
Features & Benefits:
In-line oval gear technology
Economic and accurate fluid measurements
Digital LC display
Six digit resettable batch and non-resettable cumulative totals
Flow rate up to 8 gallons per minute with up to SAE140 viscosity
Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze
Value Proposition
Economic, accurate and reliable electronic flow meter
Model Number: IM012E-02
Flow range: 0.26-8gal(1-30 L)/min
Meter / register: Oval gear / Digital
Accuracy (flow rate): +/- 0.5% (lube oils)
Features: 6-digit digital display resettable batch totaliser flow rate mode
Protective shroud: Yes
Inlet port: 1/2" NPT (F)
Outlet port: 1/2" NPT (F)
Fully serviceable: Yes
Warranty: 2 years
Parts guarantee: 10 years
Compatible fluids: Oils up to SAE140, automatic trans fluid, engine oil, gear oil, hydraulic oil. coolant, diesel, kerosene
Macnaught offers the IM012E-02 in-line oval gear digital register with accuracy of +/- 0.5%. The meter has a easy to read display with both batch and cumulative totals. The ½ inch NPT ports and a working pressure of up to 1,000 psi combine to allow for flow rates of up to 8 gallons a minute. Used for in-line oil monitoring applications or can be added to non-metered oil guns. Compatible with oil, ATF, hydraulic fluid, diesel, kerosene and antifreeze up to a maximum viscosity of SAE 140. All Macnaught in-line meters come with a fully supported 2-Year Warranty! Display can be programmed in Gallons, Liters, Quarts, Pints, Ounces, and Deciliters.
INCLUDES 2 YEAR WARRANTY!
