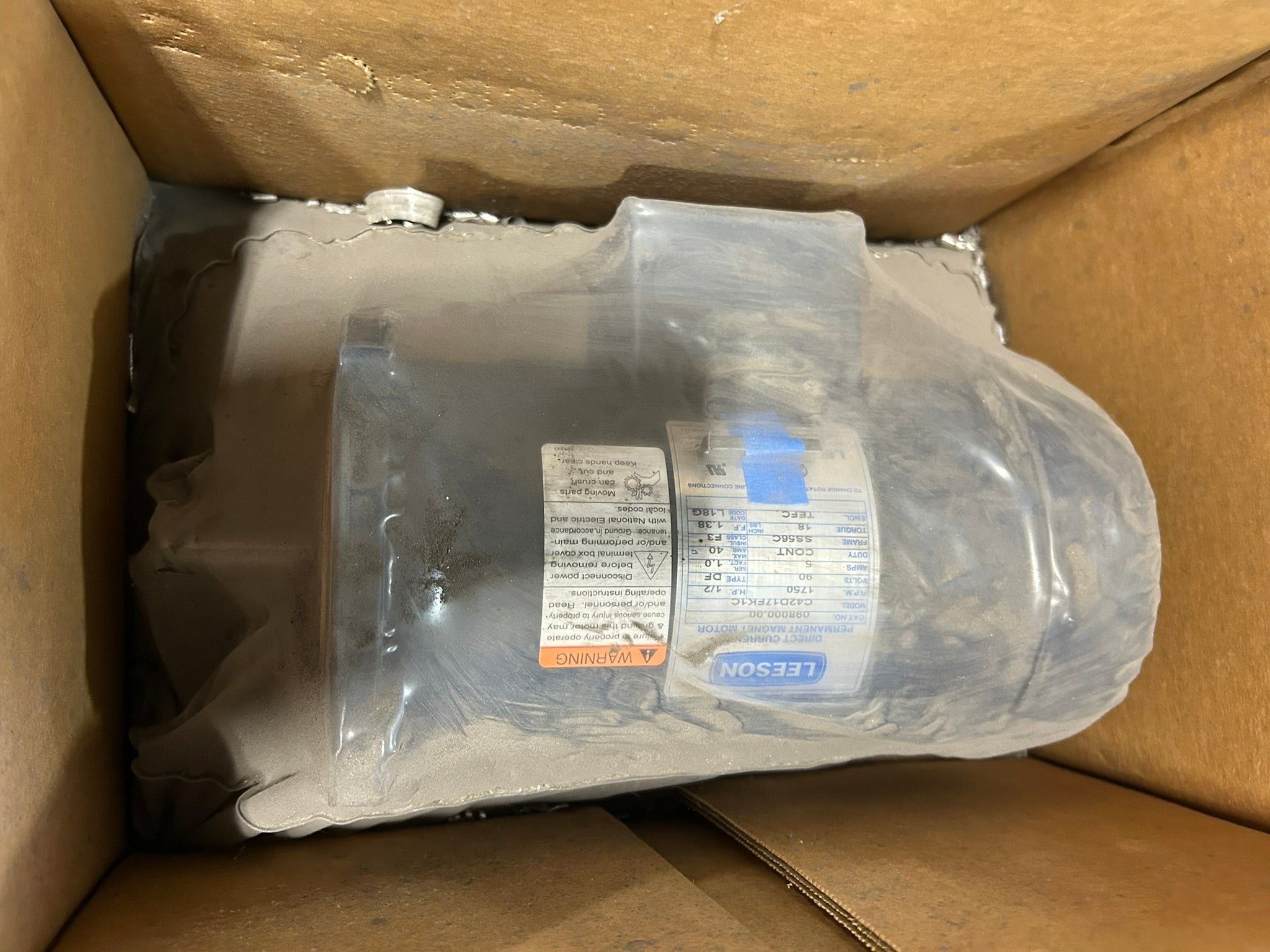

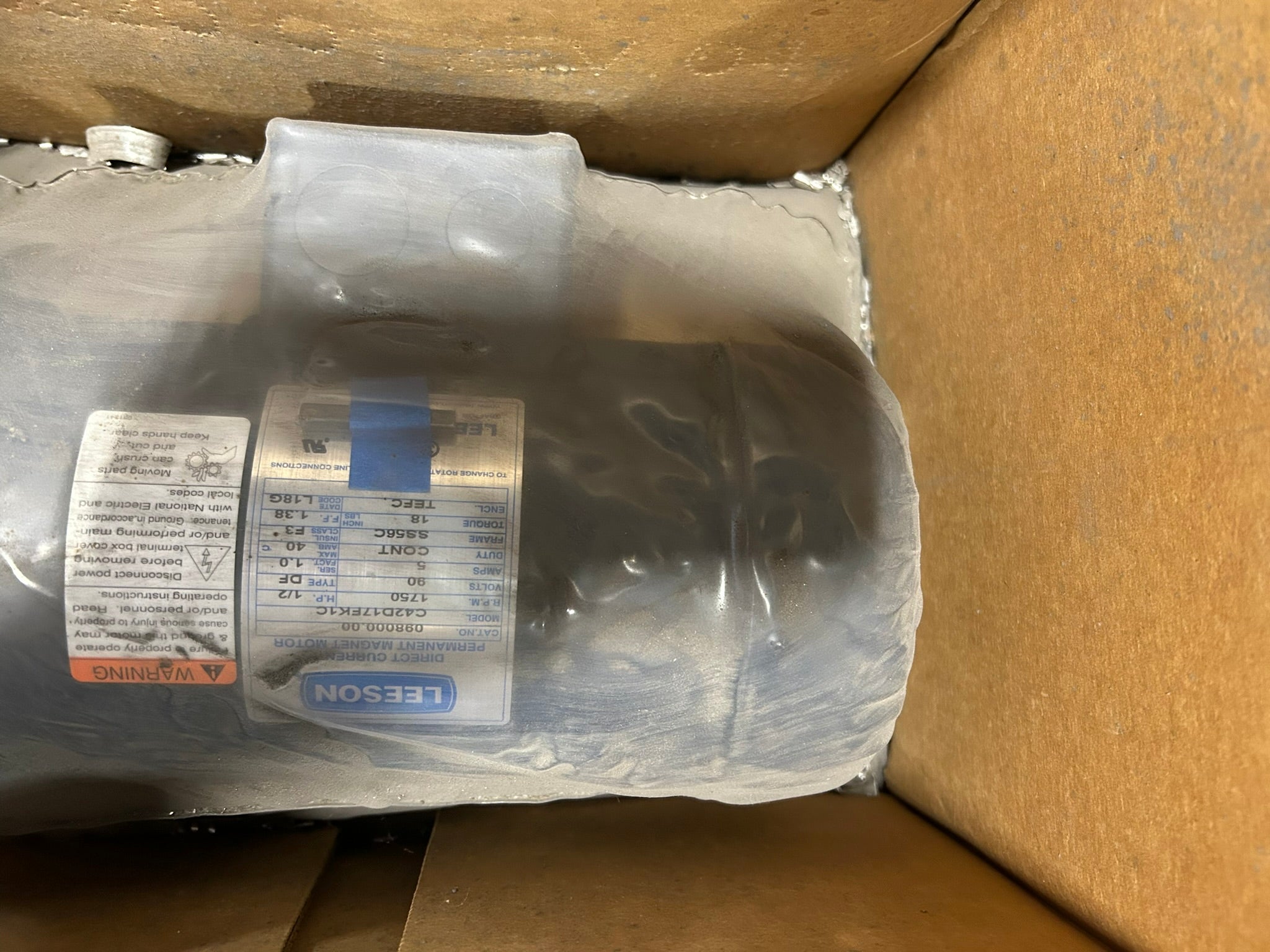

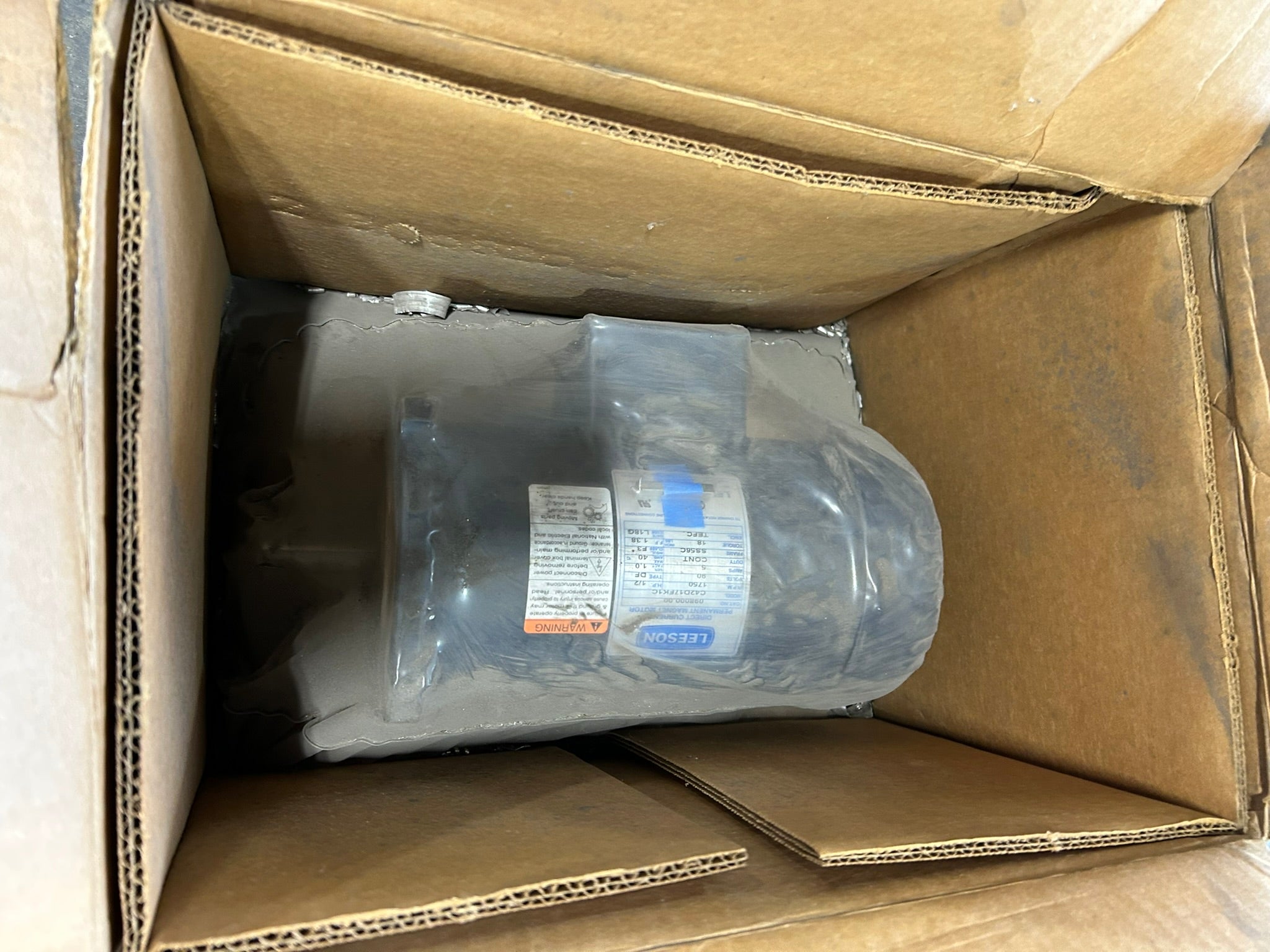

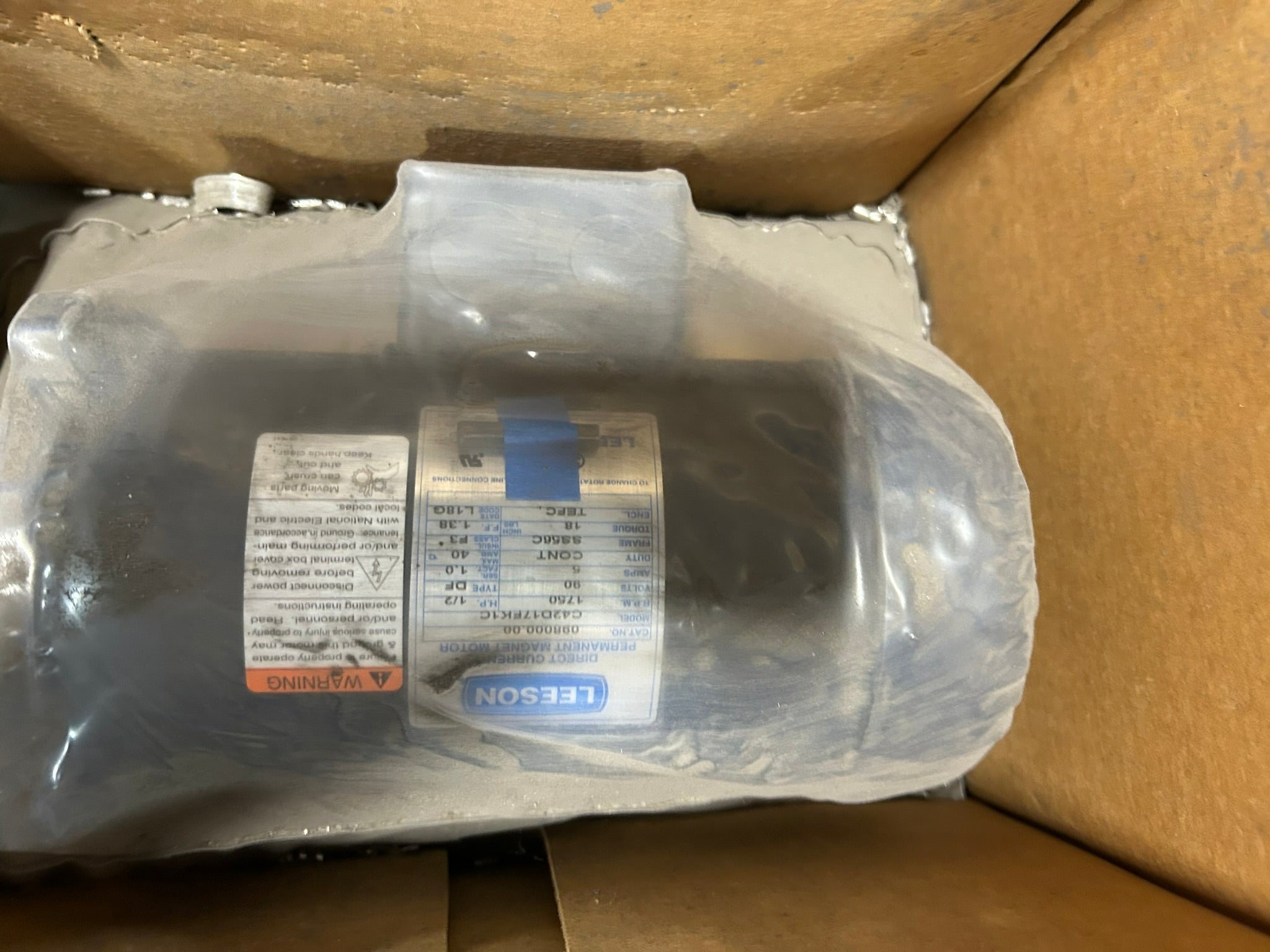

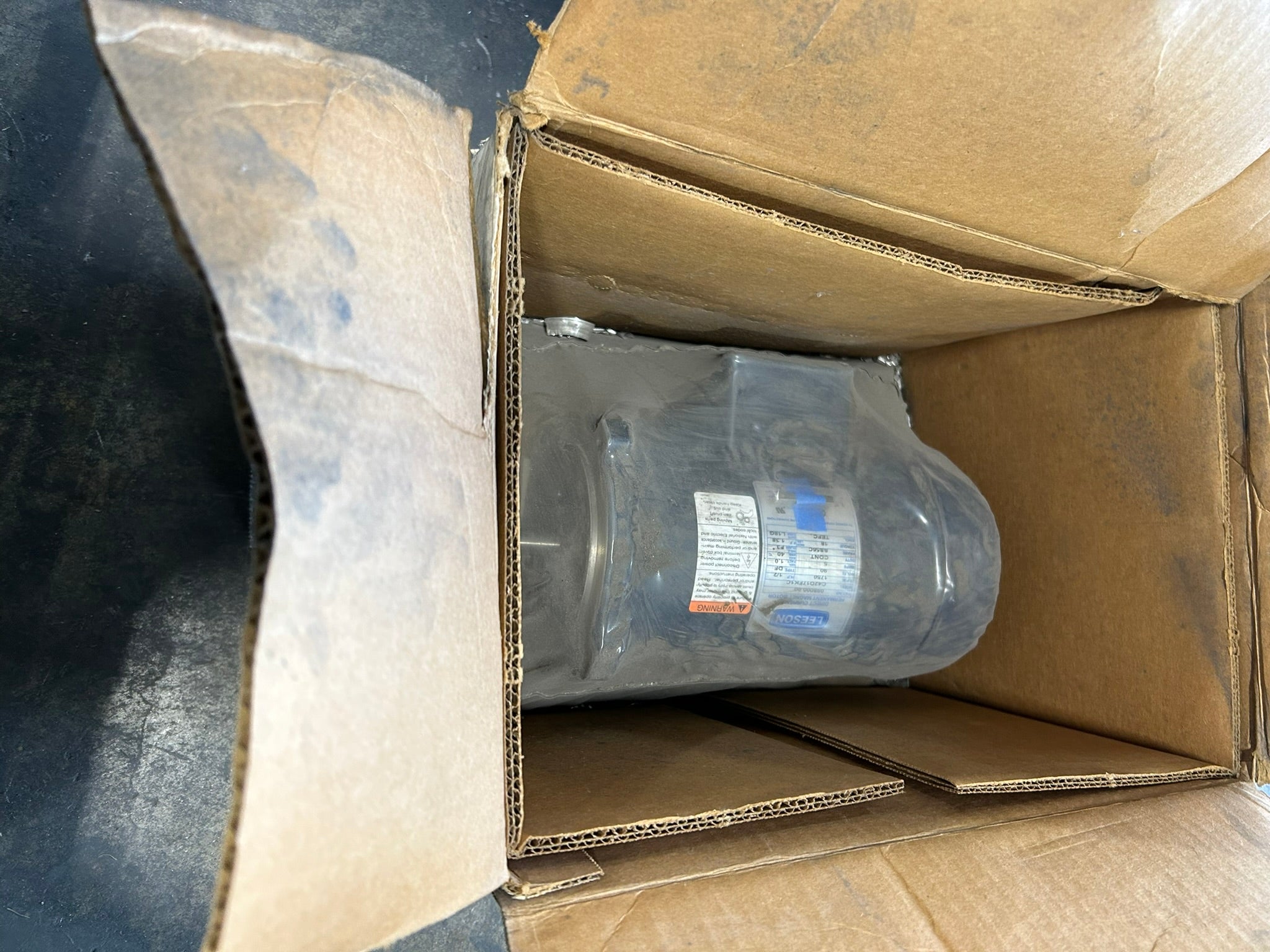

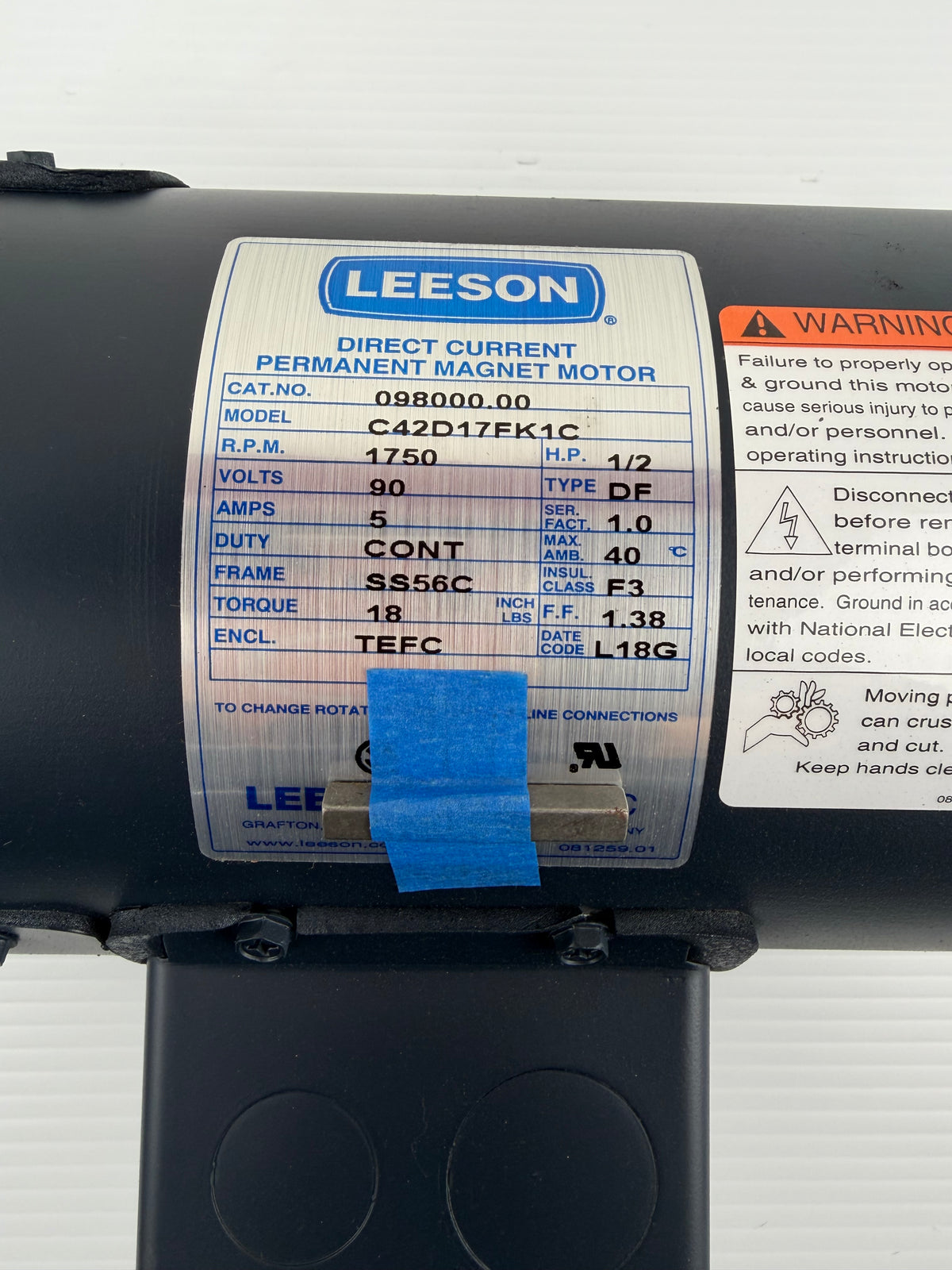

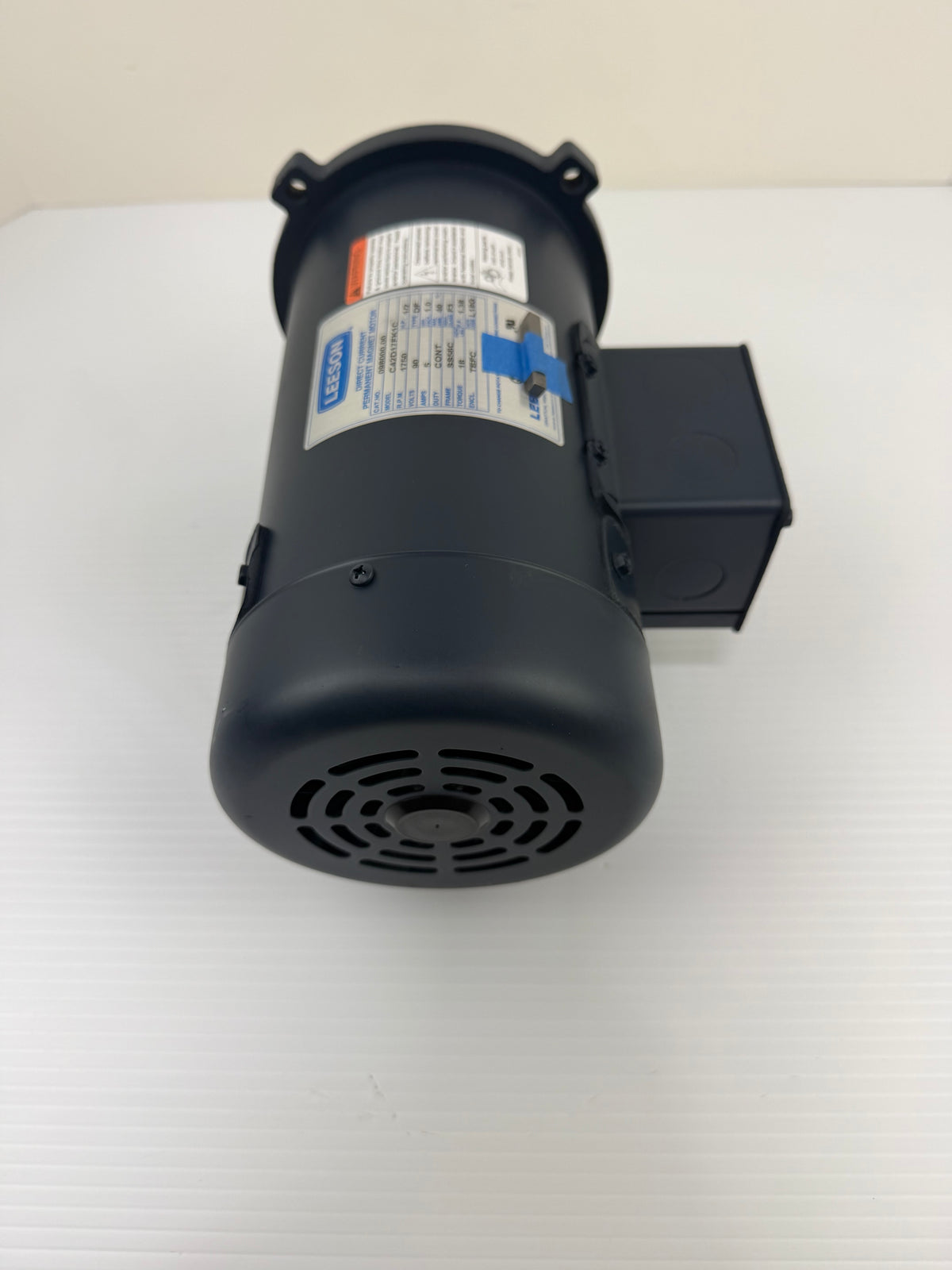

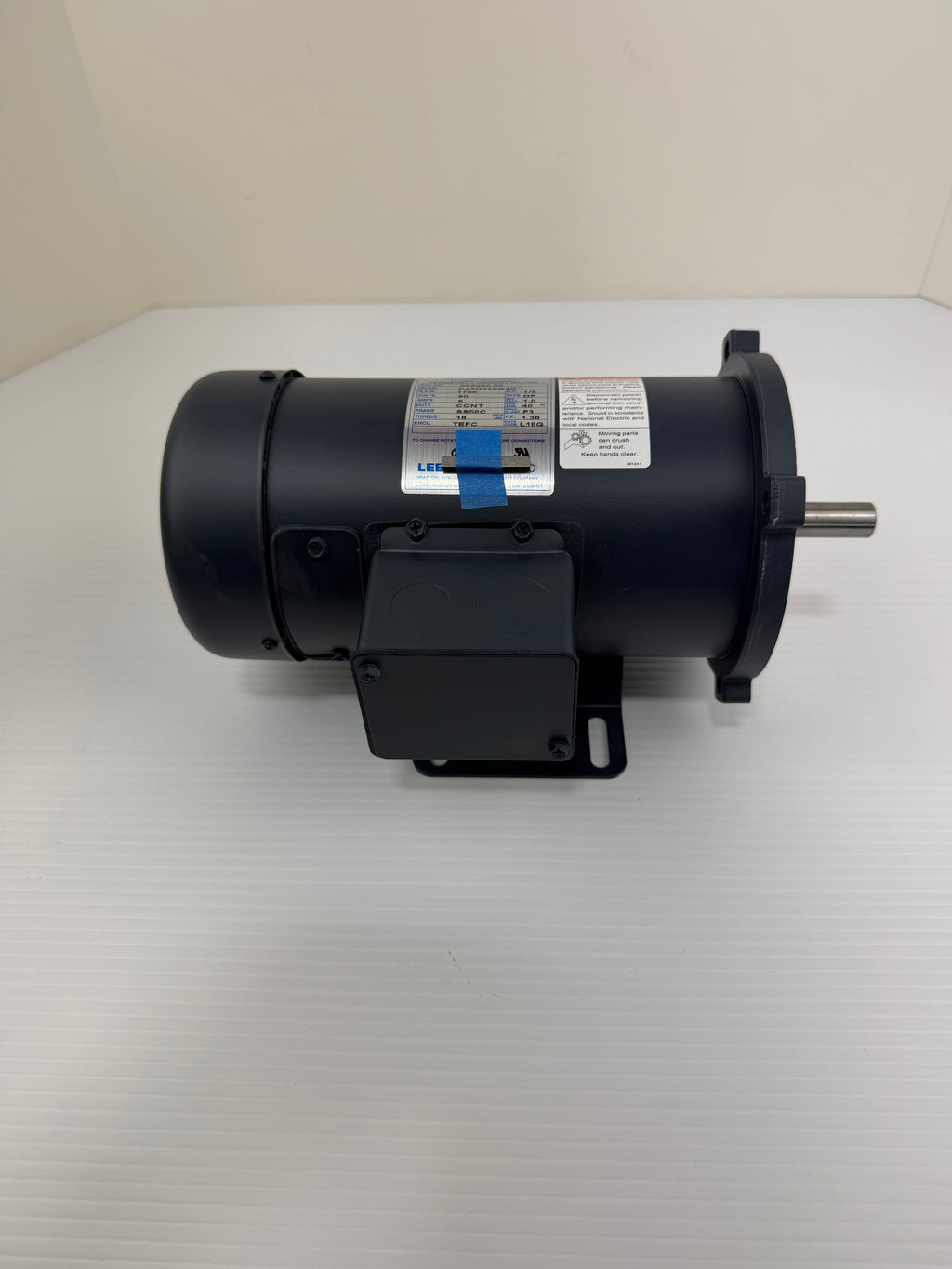

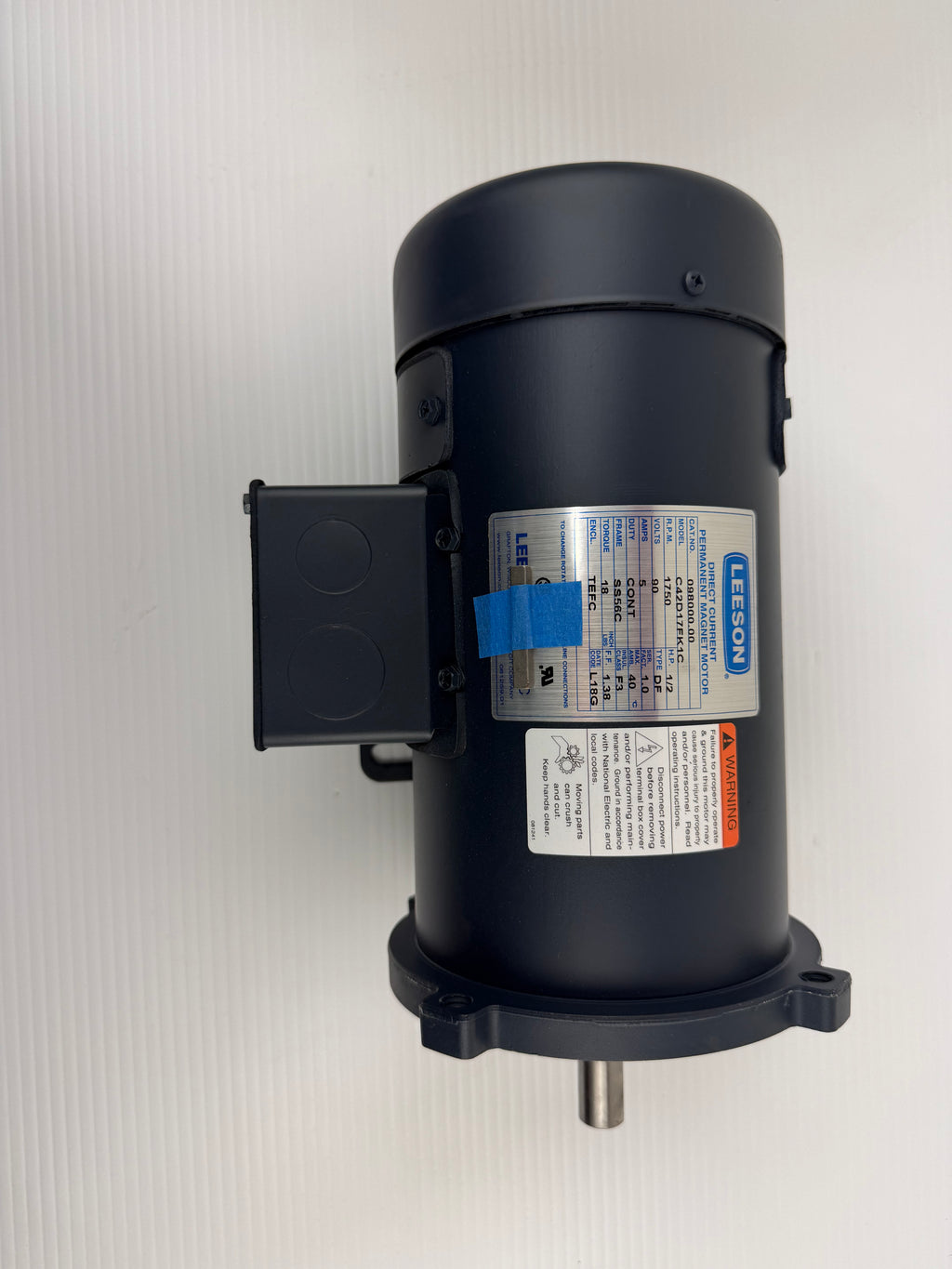

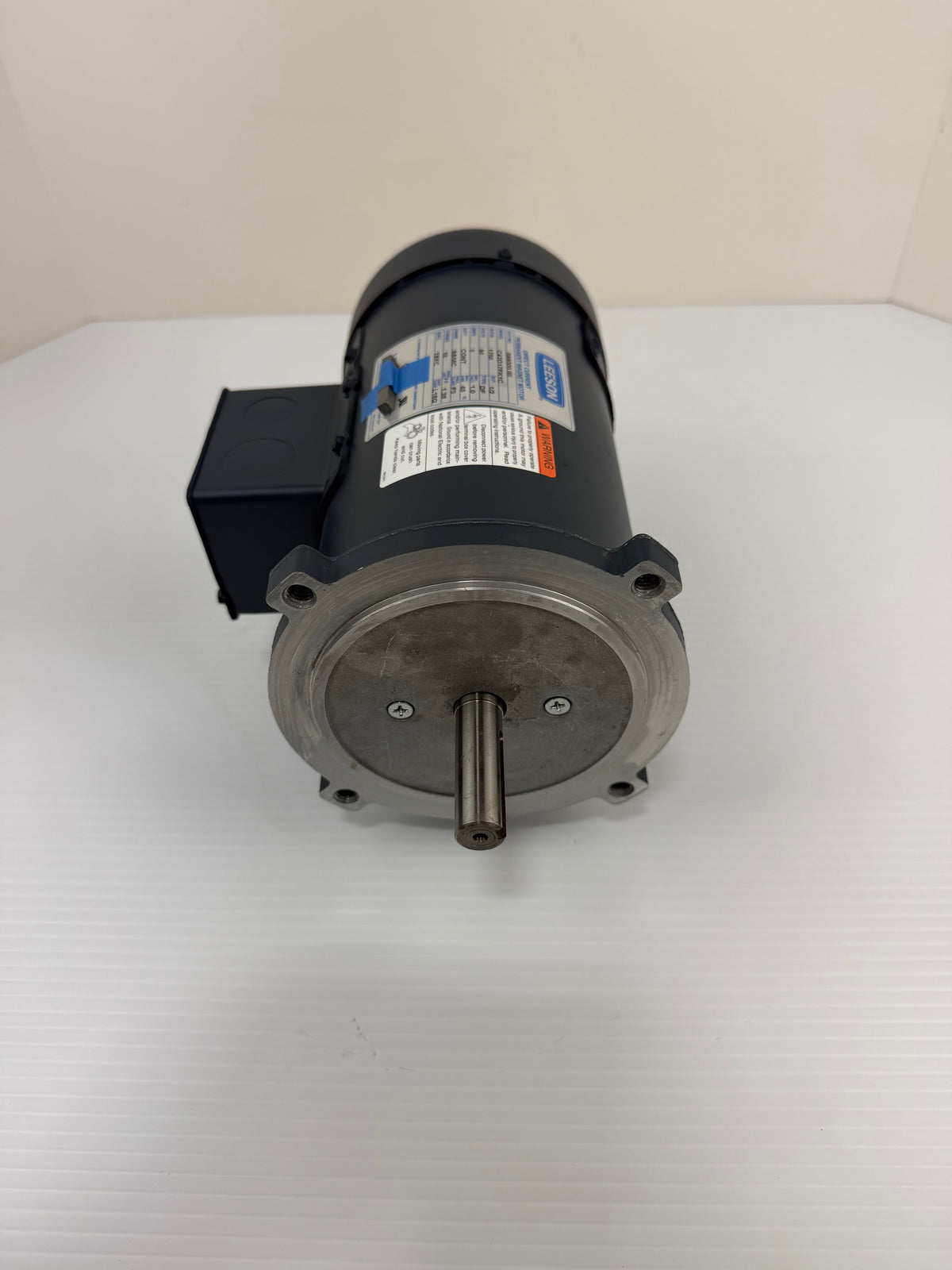

Leeson 098000.00 Permanent-Magnet DC Electric Motor
Leeson General Purpose Motor
• Manufacturer: Leeson
• Catalog Number: 098000.00
• Model Number: C42D17FK1C
• Motor Type: Permanent-Magnet DC/SCR-Rated Motor
• Output: 1/2 HP
• Voltage: 90 VDC
• Full-Load Amperage: 5.0 amps
• Rated Speed: 1750 RPM
• Full-Load Torque: 18 in-lbs
• Frame: SS56C
• Mounting: C-Face with Removable Rigid Base
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Duty: Continuous
• Service Factor: 1.0
• Maximum Ambient Temperature: 40°C
• Form Factor: 1.38
• Rotation: Reversible by Changing Motor Connections
New, no original box
