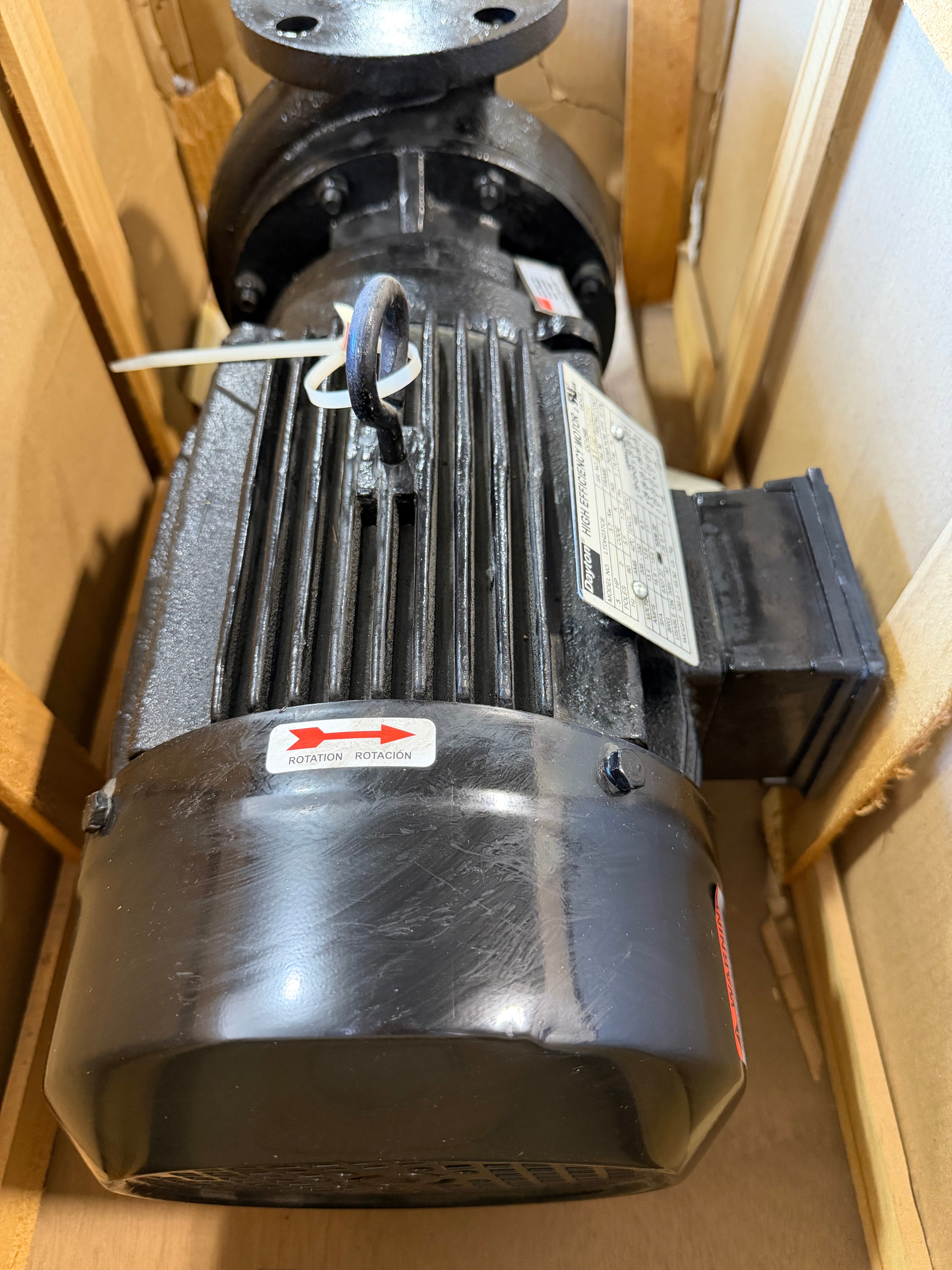

Dayton LTDH23TCE 5HP Motor 184JM 208-230/460V 3PH 3450RPM TEFC Pump Motor

Dayton LTDH23TCE 5HP Motor 184JM 208-230/460V 3PH 3450RPM TEFC Pump Motor

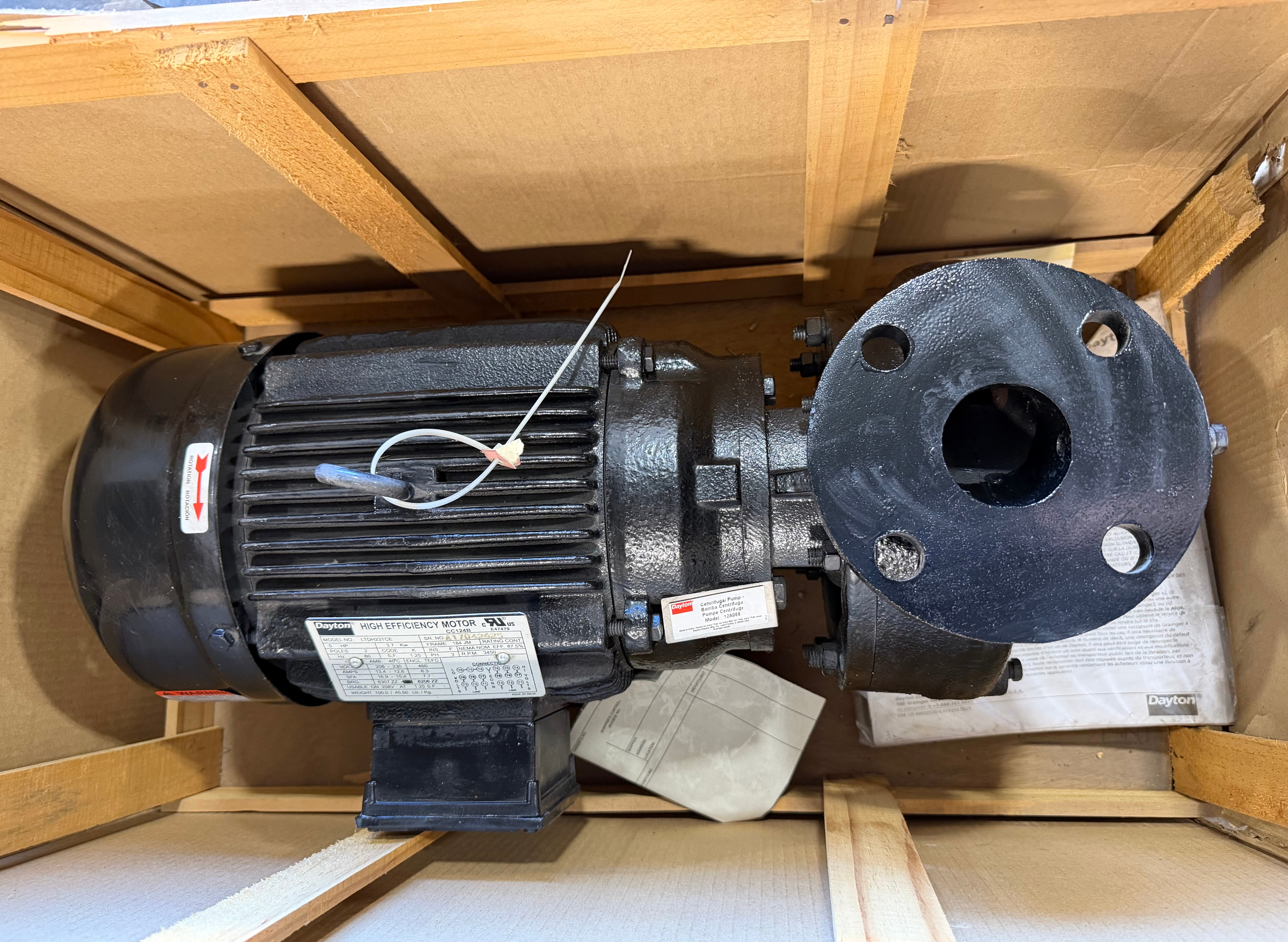

Dayton LTDH23TCE High Efficiency Pump Motor - 5 HP - 184JM Frame

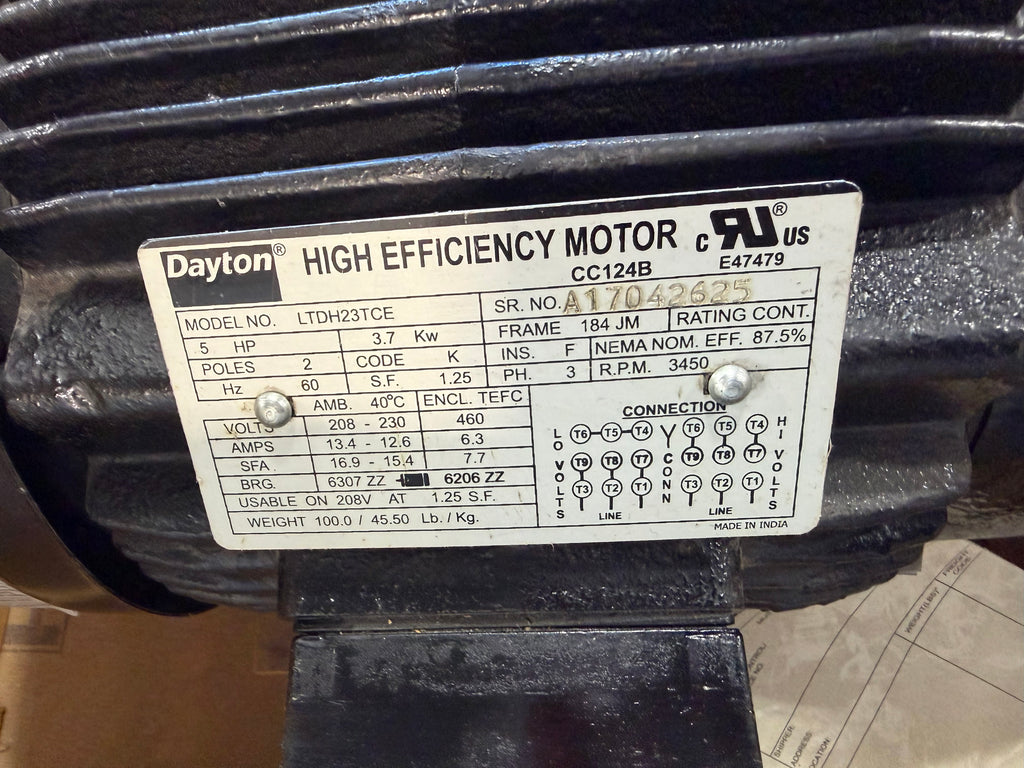

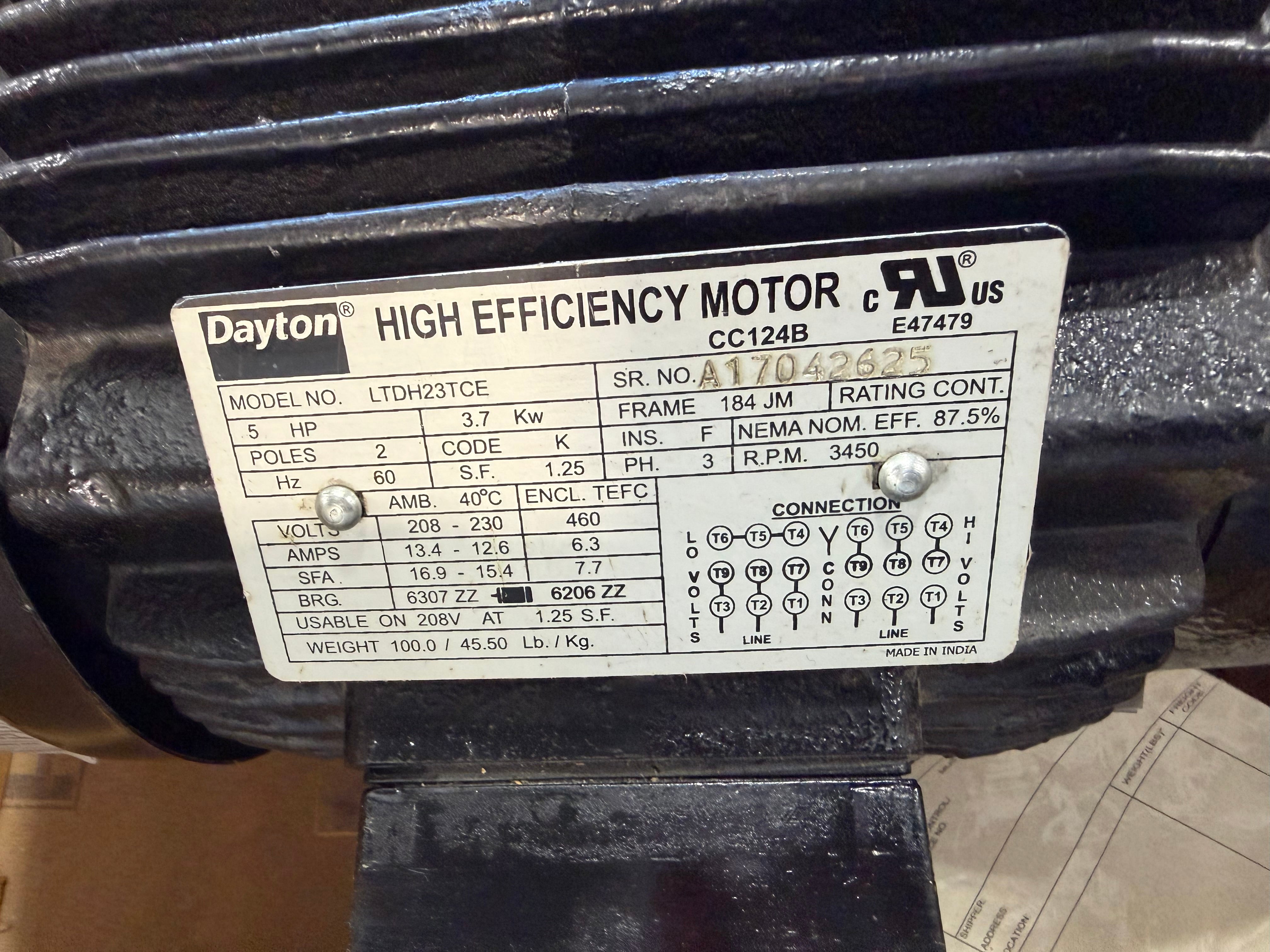

Specifications
Manufacturer: Dayton
Model: LTDH23TCE
Horsepower: 5 HP
Kilowatts: 3.7 kW
Frame: 184JM
Phase: 3 Phase
Voltage: 208-230/460 VAC
Frequency: 60 Hz
RPM: 3450
Poles: 2
Service Factor: 1.25
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Insulation Class: F
NEMA Efficiency: 87.5%
Duty Rating: Continuous Duty
Code Letter: K
Ambient Temperature: 40°C
Full Load Amps:
13.4A @ 208V
12.6A @ 230V
6.3A @ 460V
Service Factor Amps:
16.9A @ 208V
15.4A @ 230V
7.7A @ 460V
Bearings:
Drive End: 6307 ZZ
Opposite End: 6206 ZZ
Weight: 100 lbs
Country of Manufacture: India

Dayton high-efficiency industrial pump motor designed for demanding commercial and industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor features a JM pump mounting frame and operates on 208-230/460V three-phase power. Ideal for centrifugal pumps, irrigation systems, booster pumps, industrial water systems, process equipment, and replacement applications.
