Description

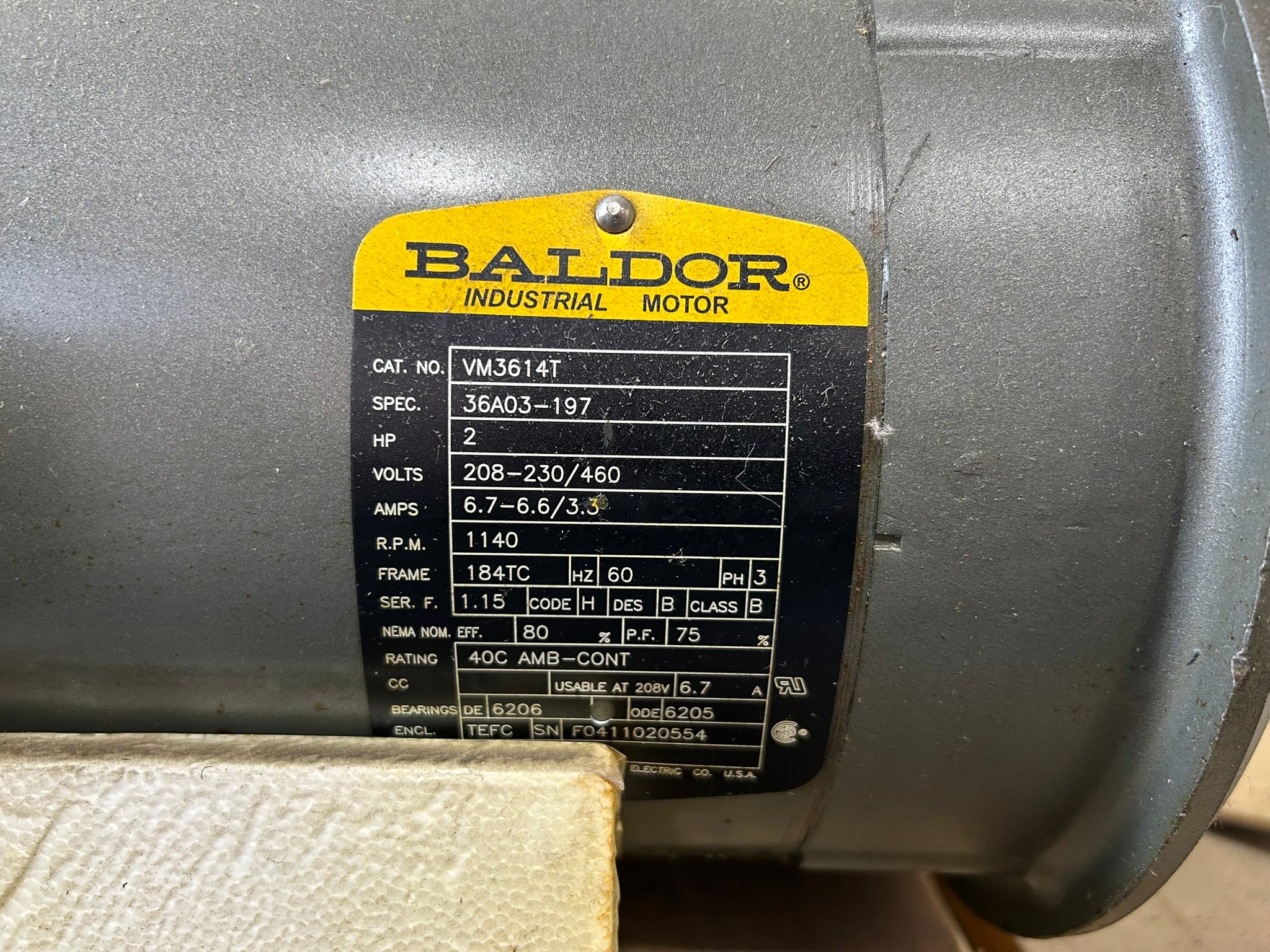

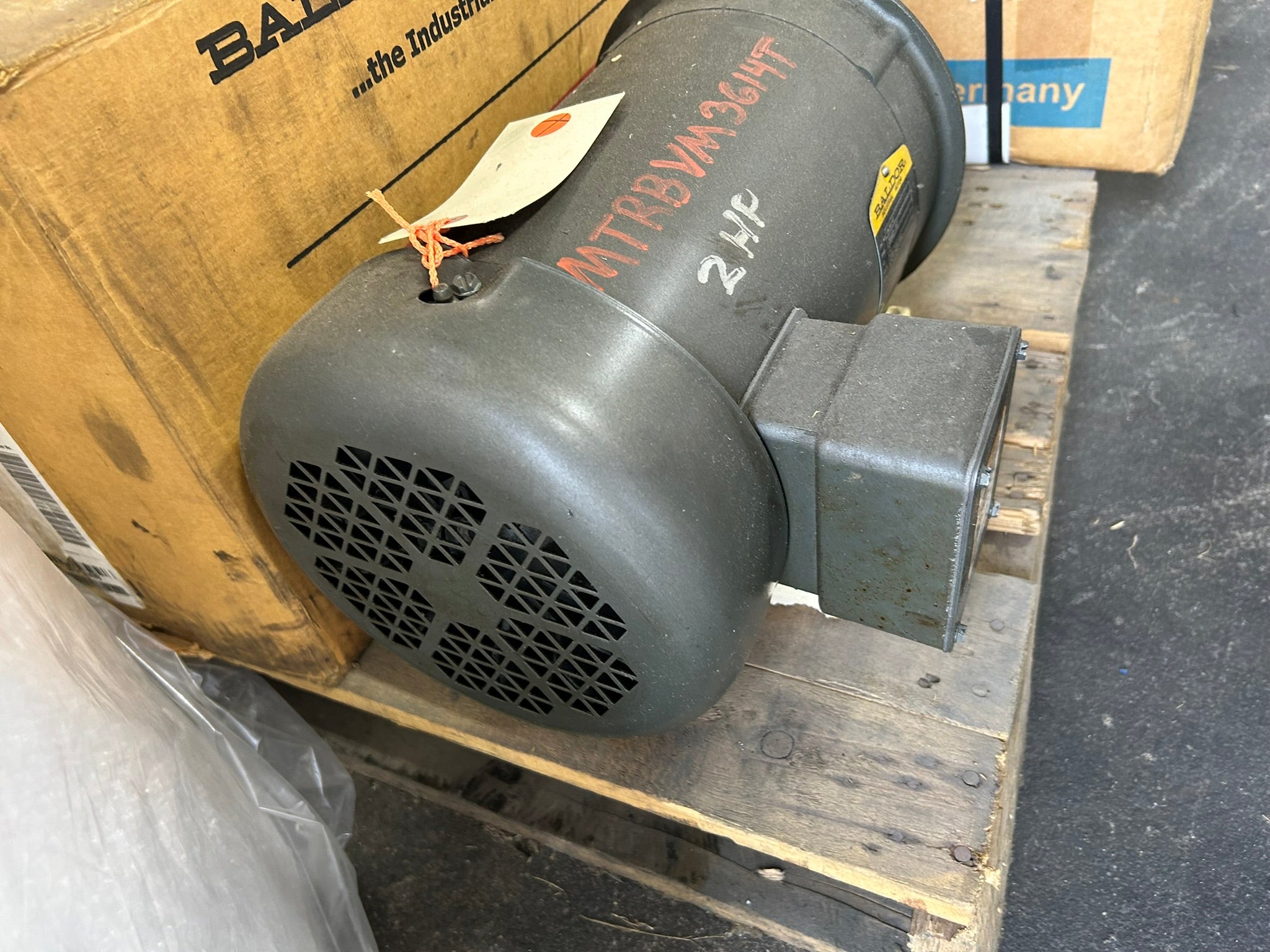

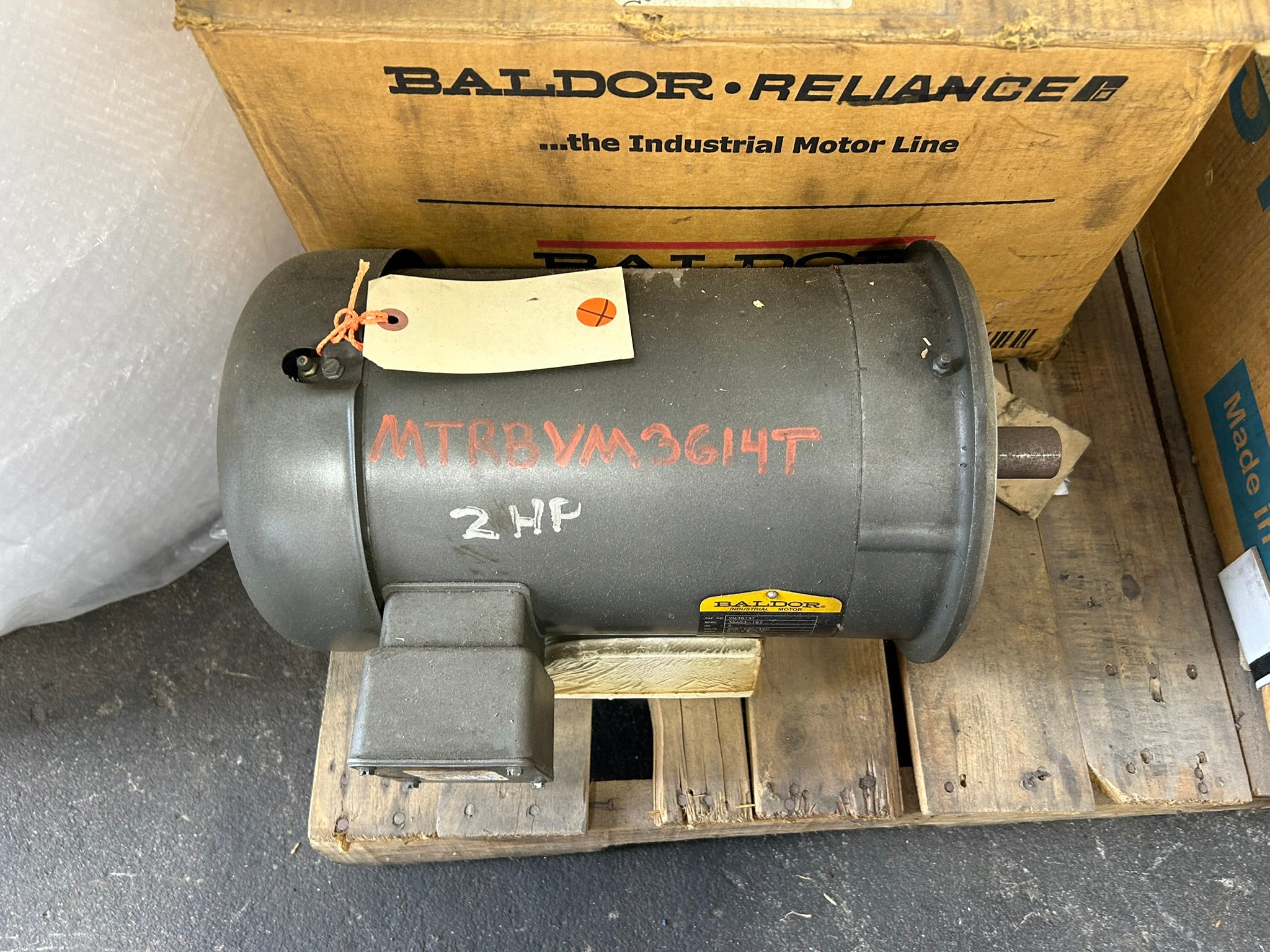

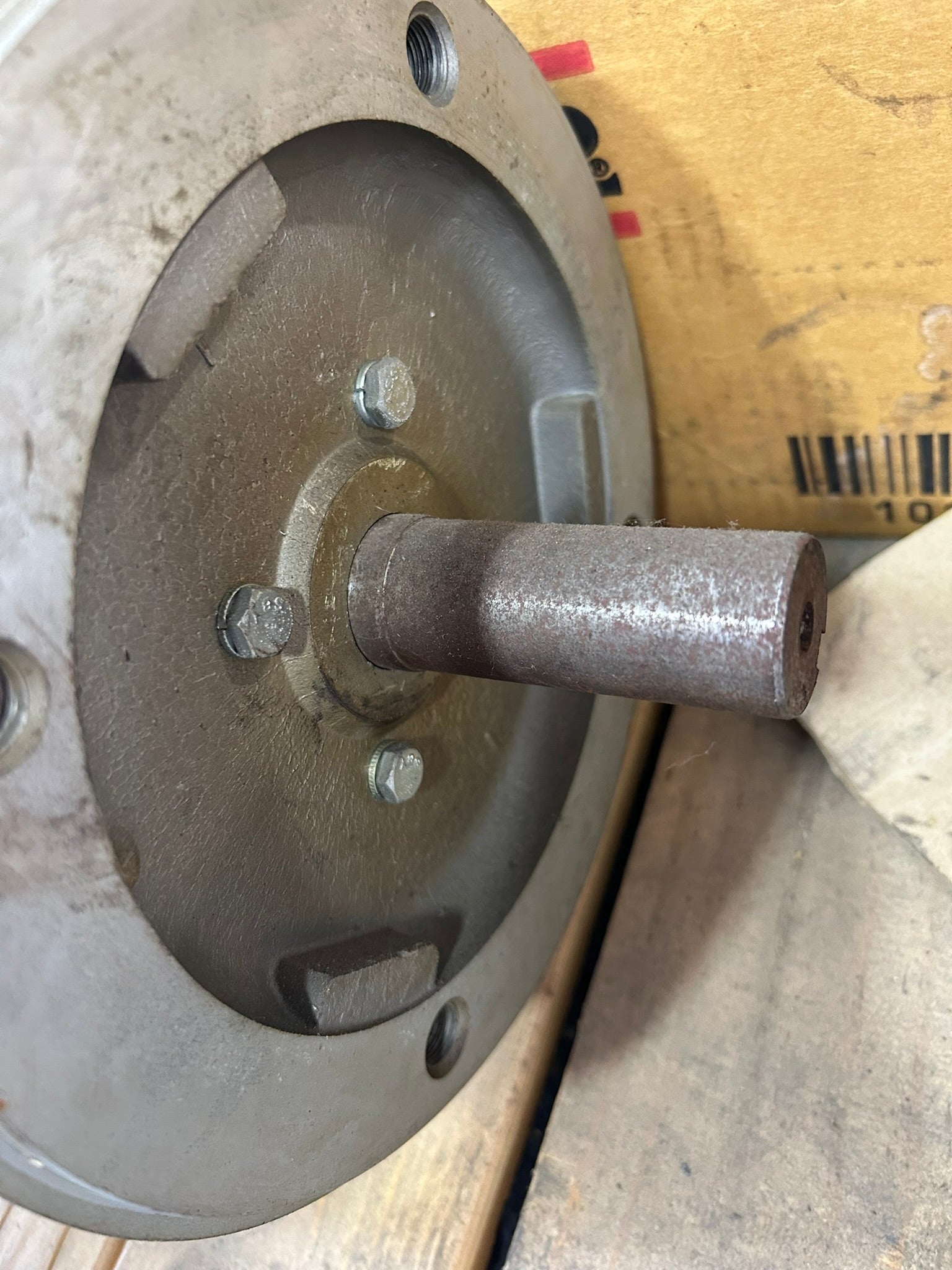

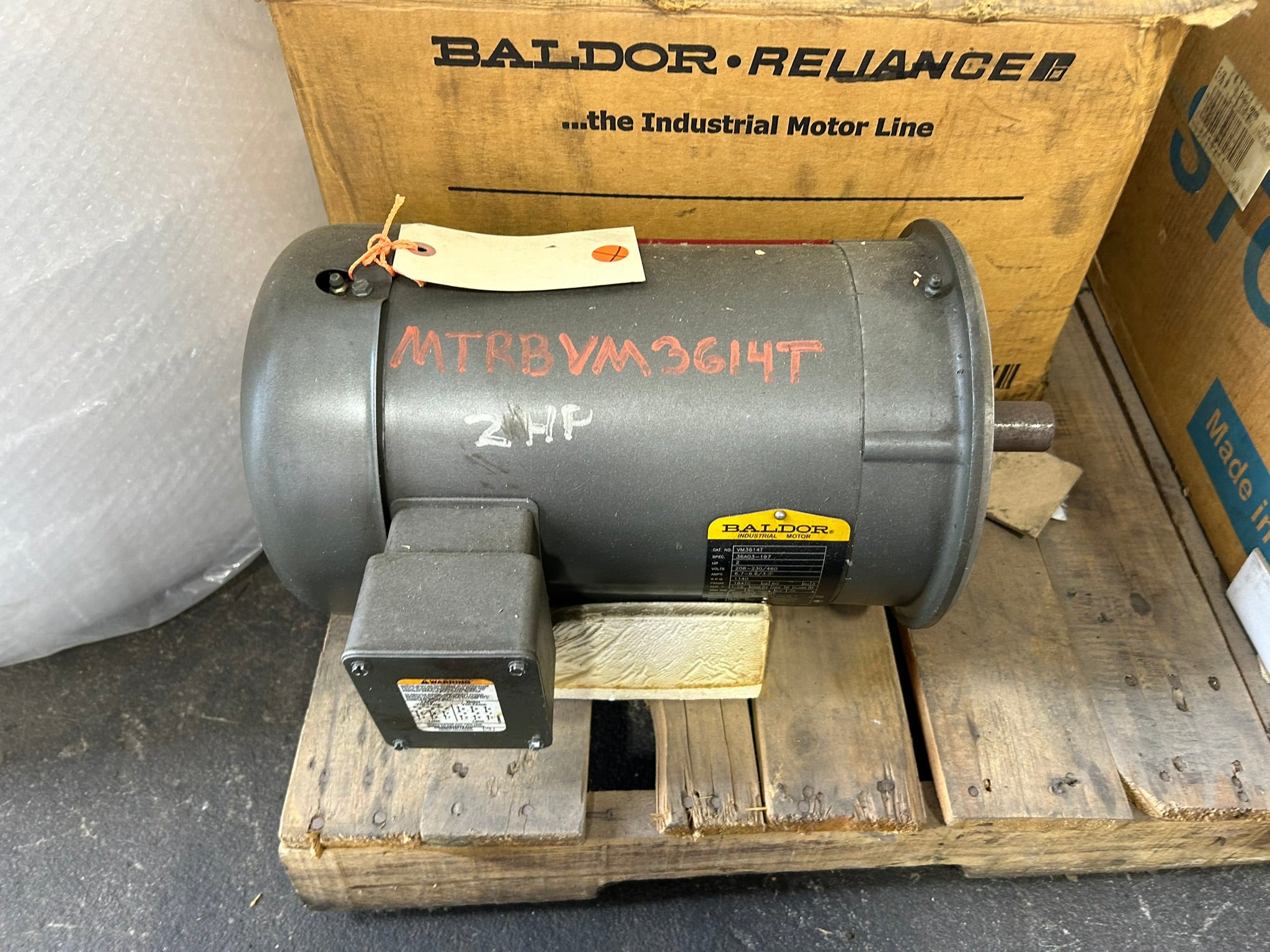

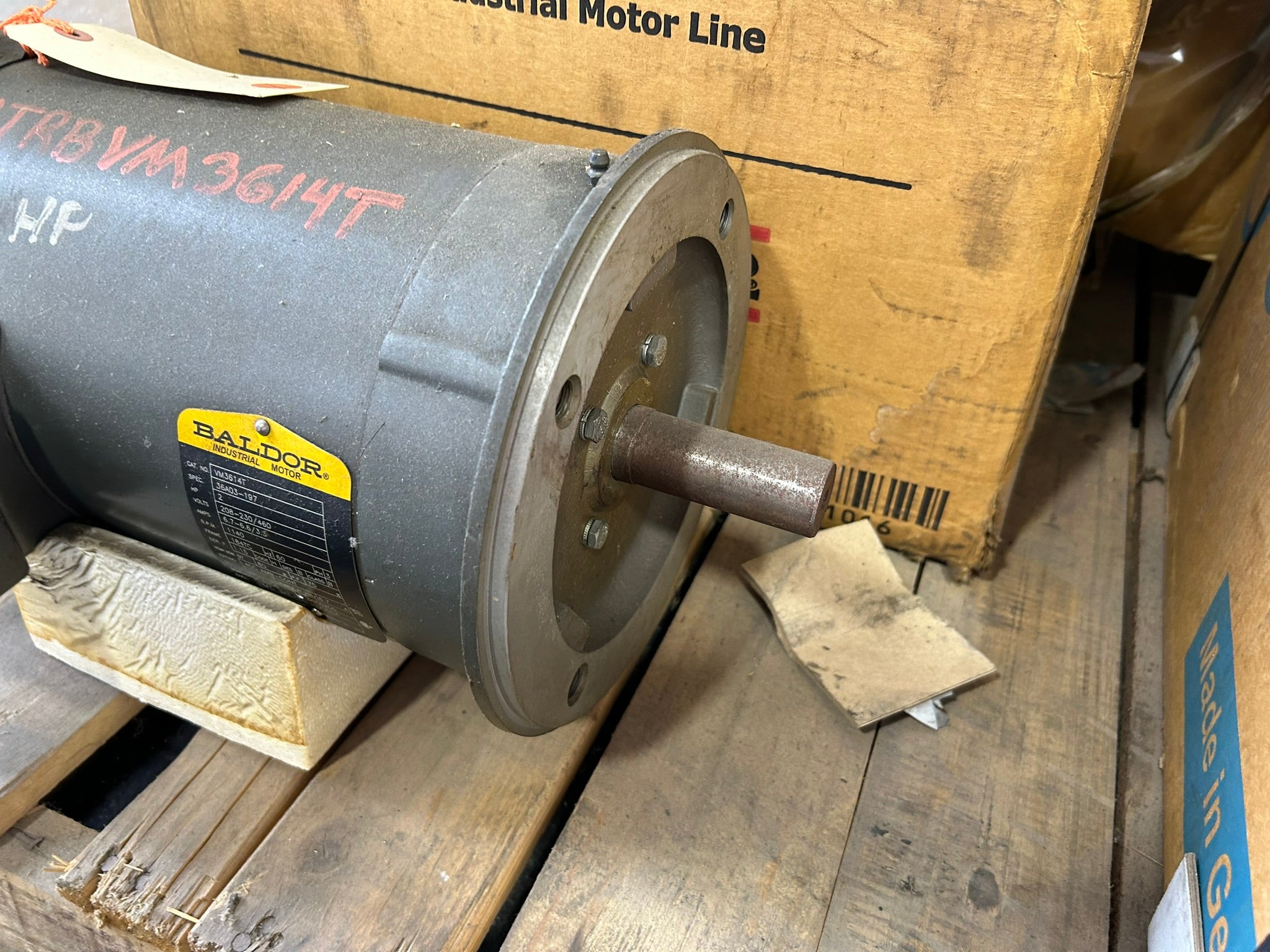

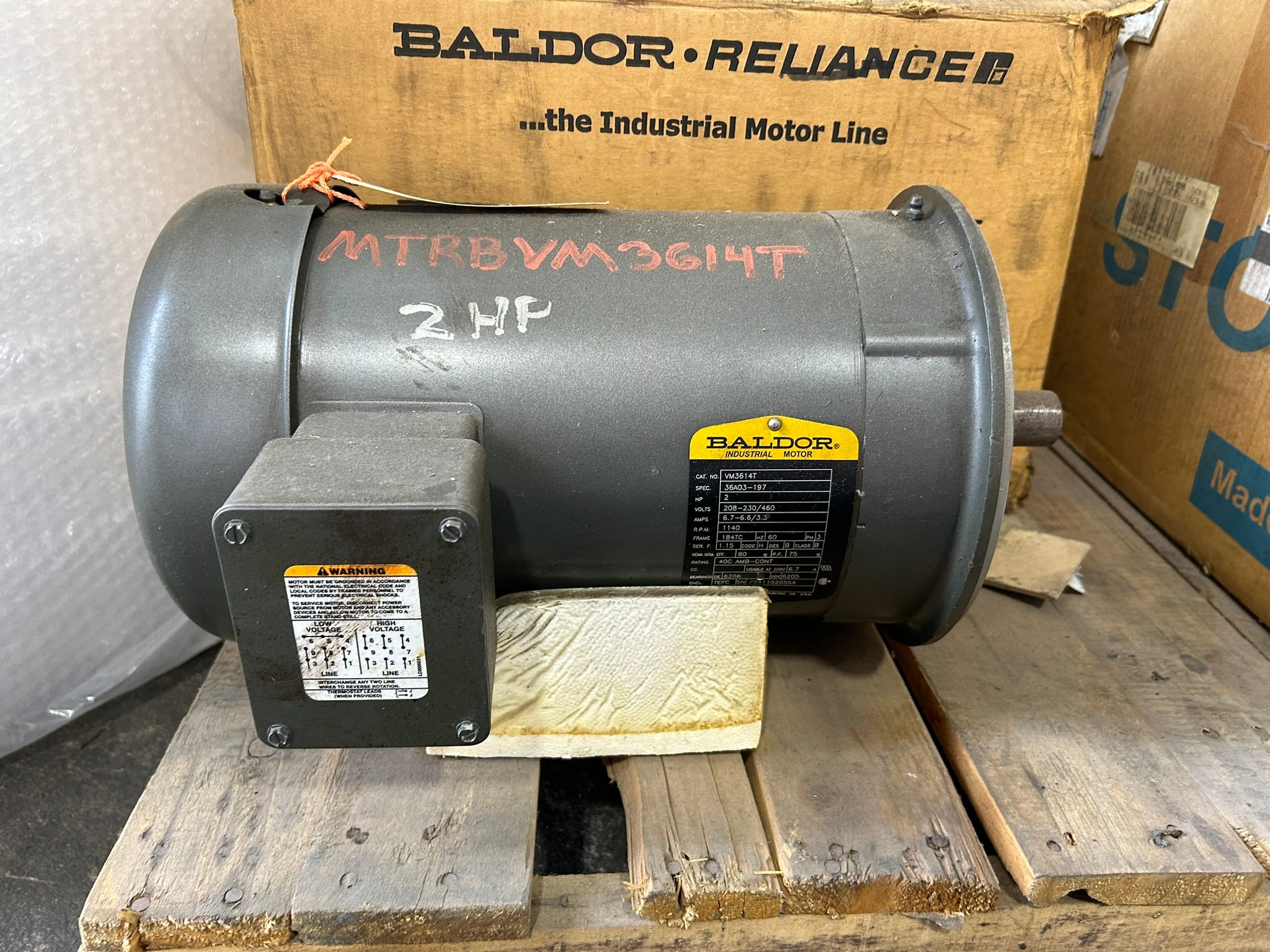

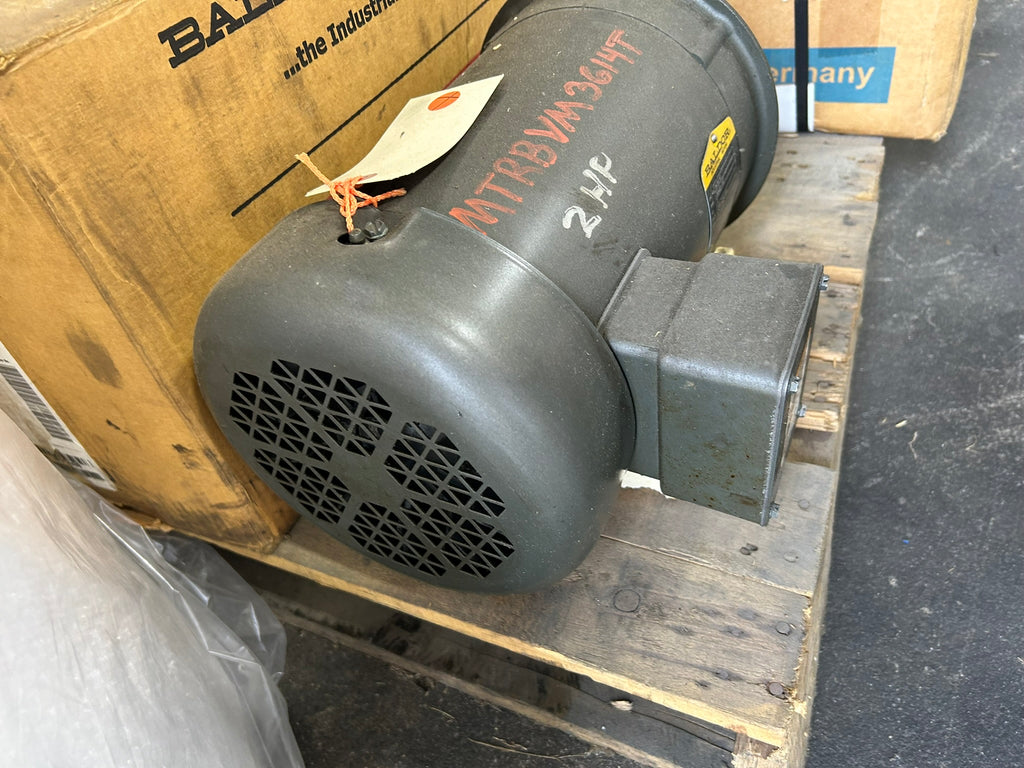

Baldor VM3614T 2HP Electric Motor 208-230/460V 3PH 1140 RPM TEFC 184TC
Baldor Electric Motor
Catalog Number: VM3614T
Specification: 36A03-197
Horsepower: 2 HP
Voltage: 208-230/460 VAC
Phase: 3 Phase
Frequency: 60 Hz
Speed: 1140 RPM
Frame: 184TC
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Service Factor: 1.15
NEMA Design: B
Code: H
Insulation Class: B
Nominal Efficiency: 80%
Power Factor: 75%
Bearings: DE 6206 / ODE 6205
Ambient Rating: 40°C Continuous Duty
New surplus, no original packaging
