Baldor Reliance E80467463 Electric Motor 15HP 254TC 230/460V 1760 RPM

Baldor Reliance E80467463 Electric Motor 15HP 254TC 230/460V 1760 RPM

Baldor Reliance Electric Motor Explosion-Proof

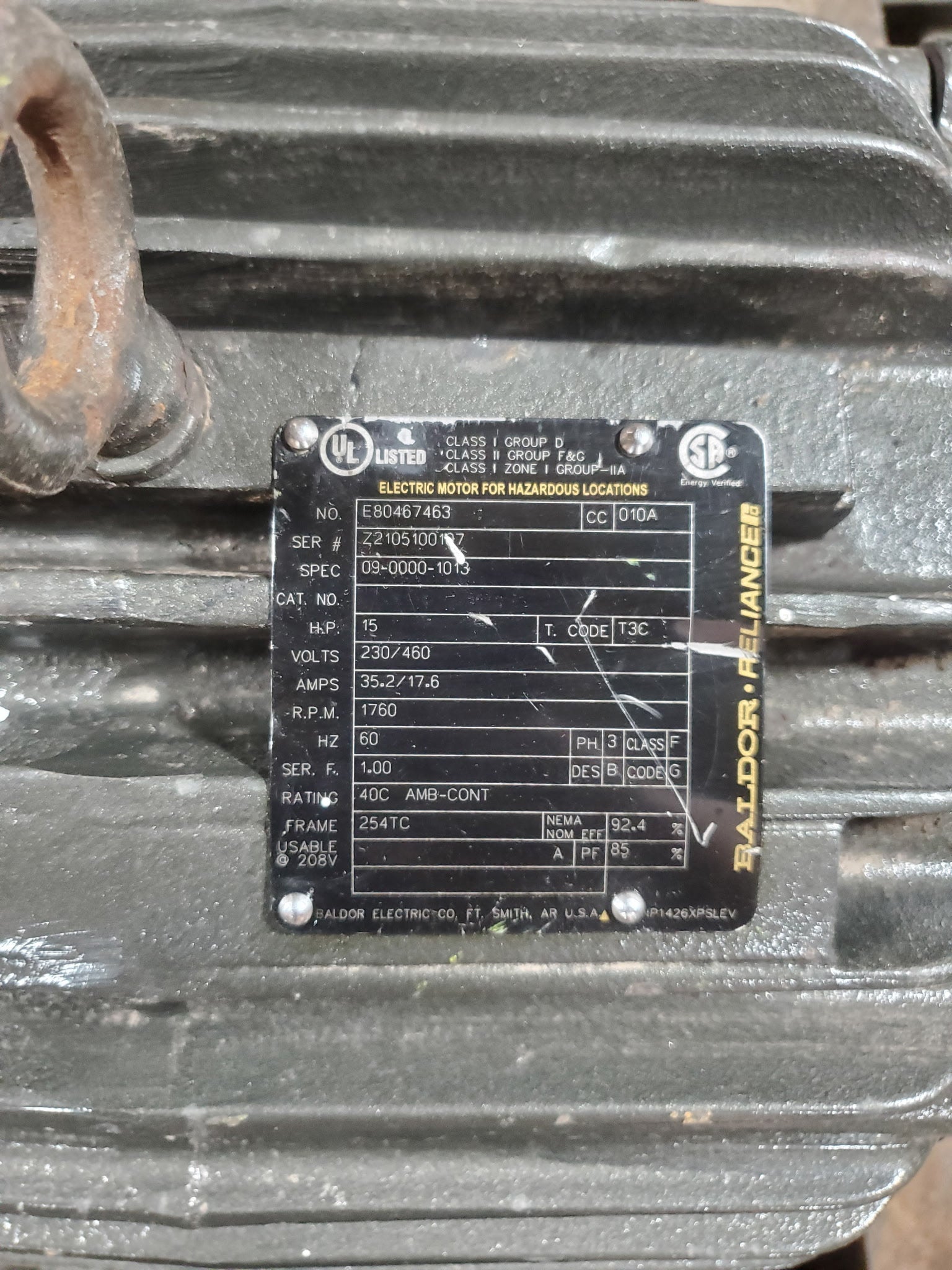

Model #: E80467463
Horsepower: 15
Voltage: 230/460
Phase: 3
Frequency: 60 Hz
Speed: 1760 RPM
Frame: 254TC
Enclosure: TEFC Explosion Proof
Hazardous Location Rating:
Class I Group D
Class II Groups F & G
Class I Zone 1 Group IIA
Temperature Code: T3C
Service Factor: 1.00
Insulation Class: F
NEMA Design: B
Code Letter: G
Nominal Efficiency: 92.4%
Power Factor: 85%
Current: 35.2 / 17.6 Amps
Ambient Rating: 40°C Continuous Duty
Control Code: 010A
Serial Number: Z2105100107

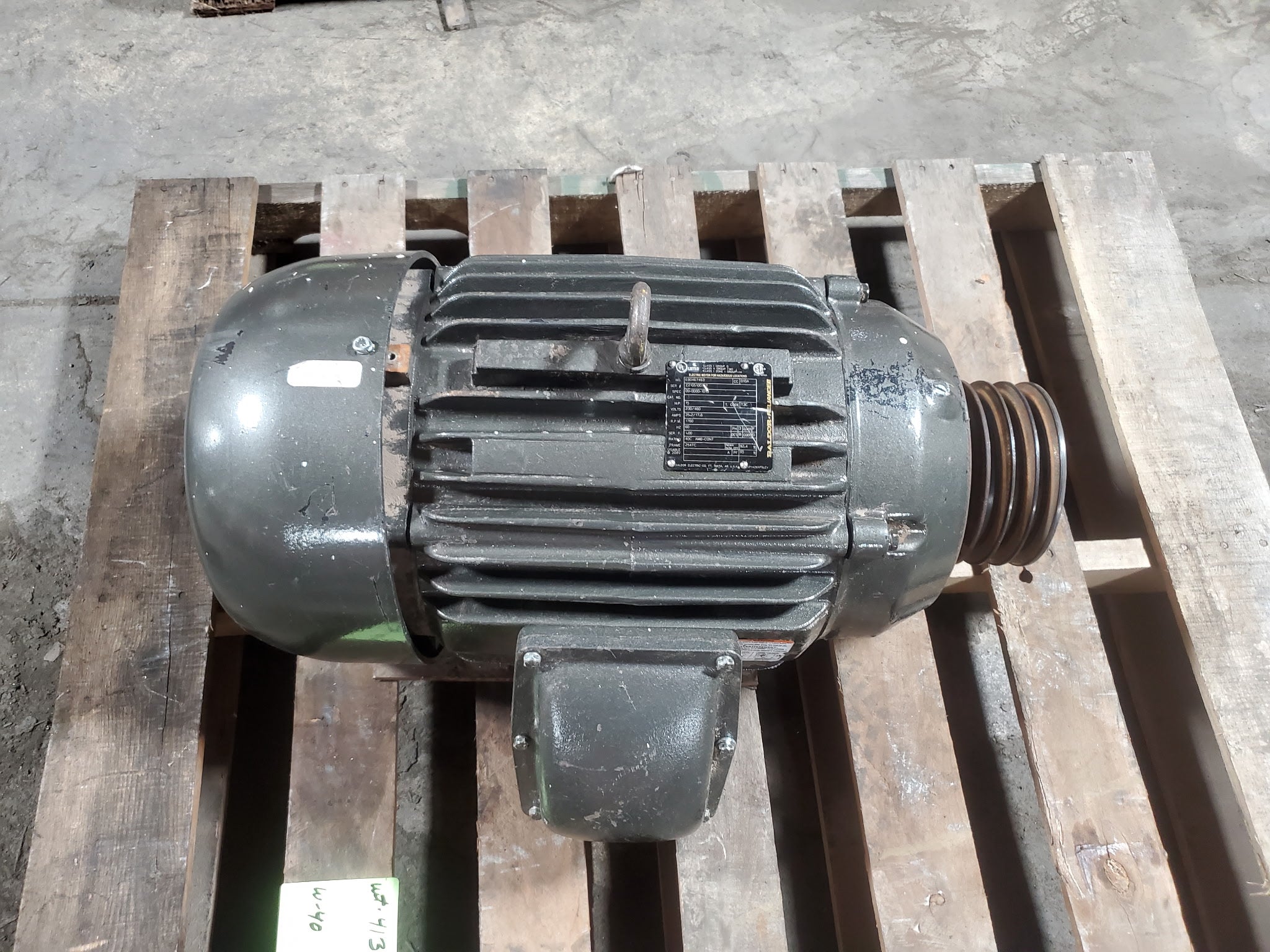

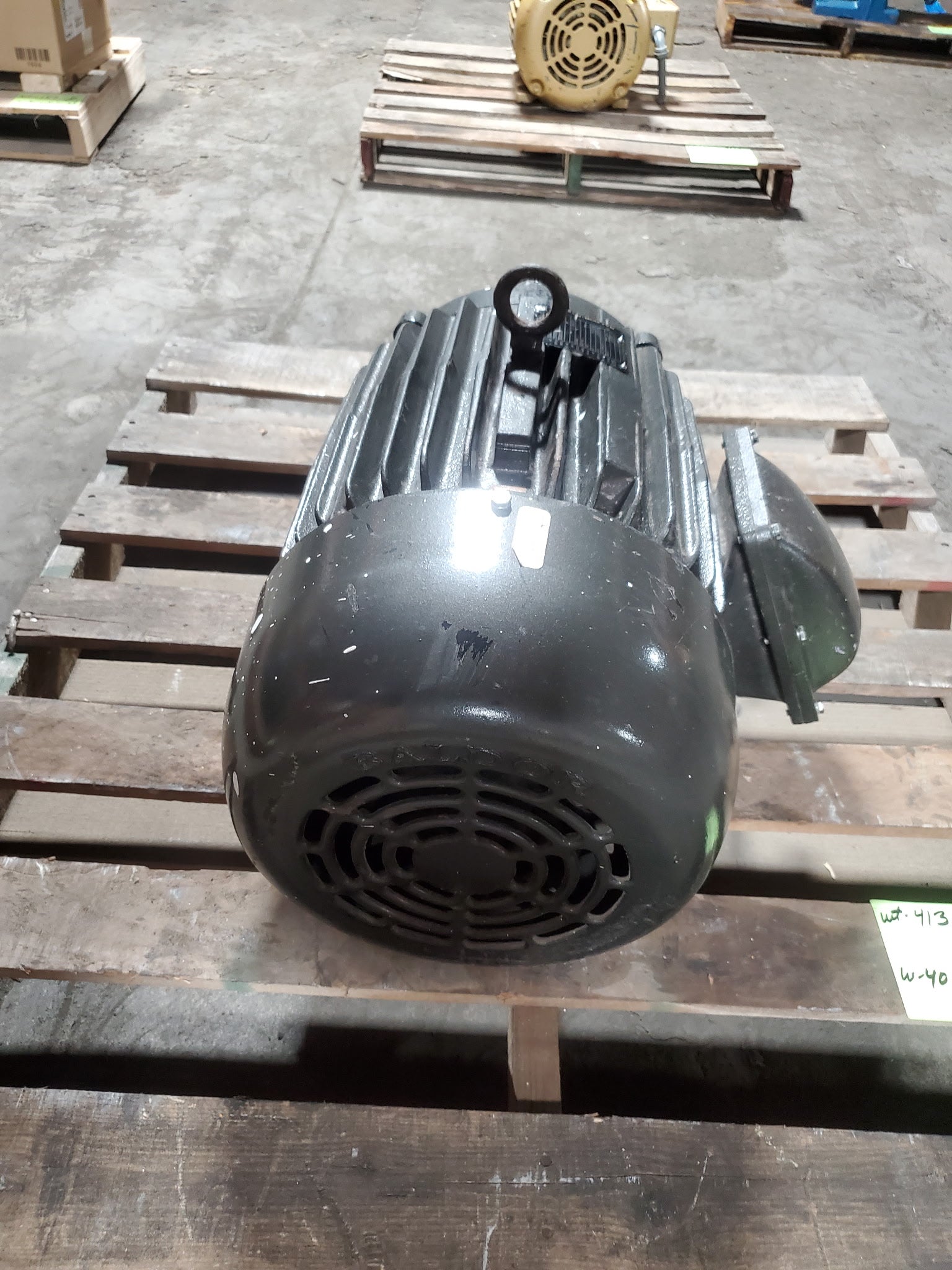

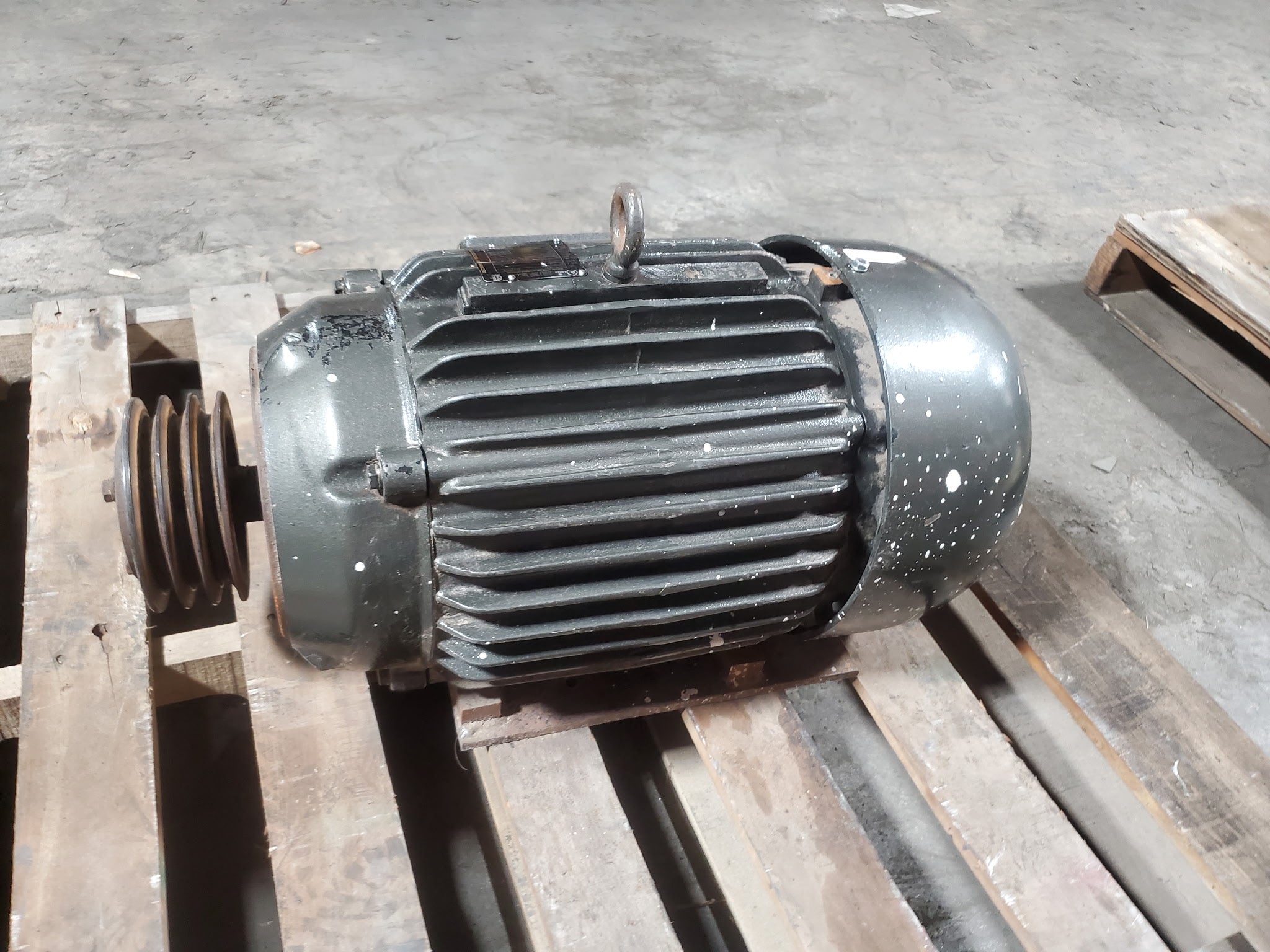

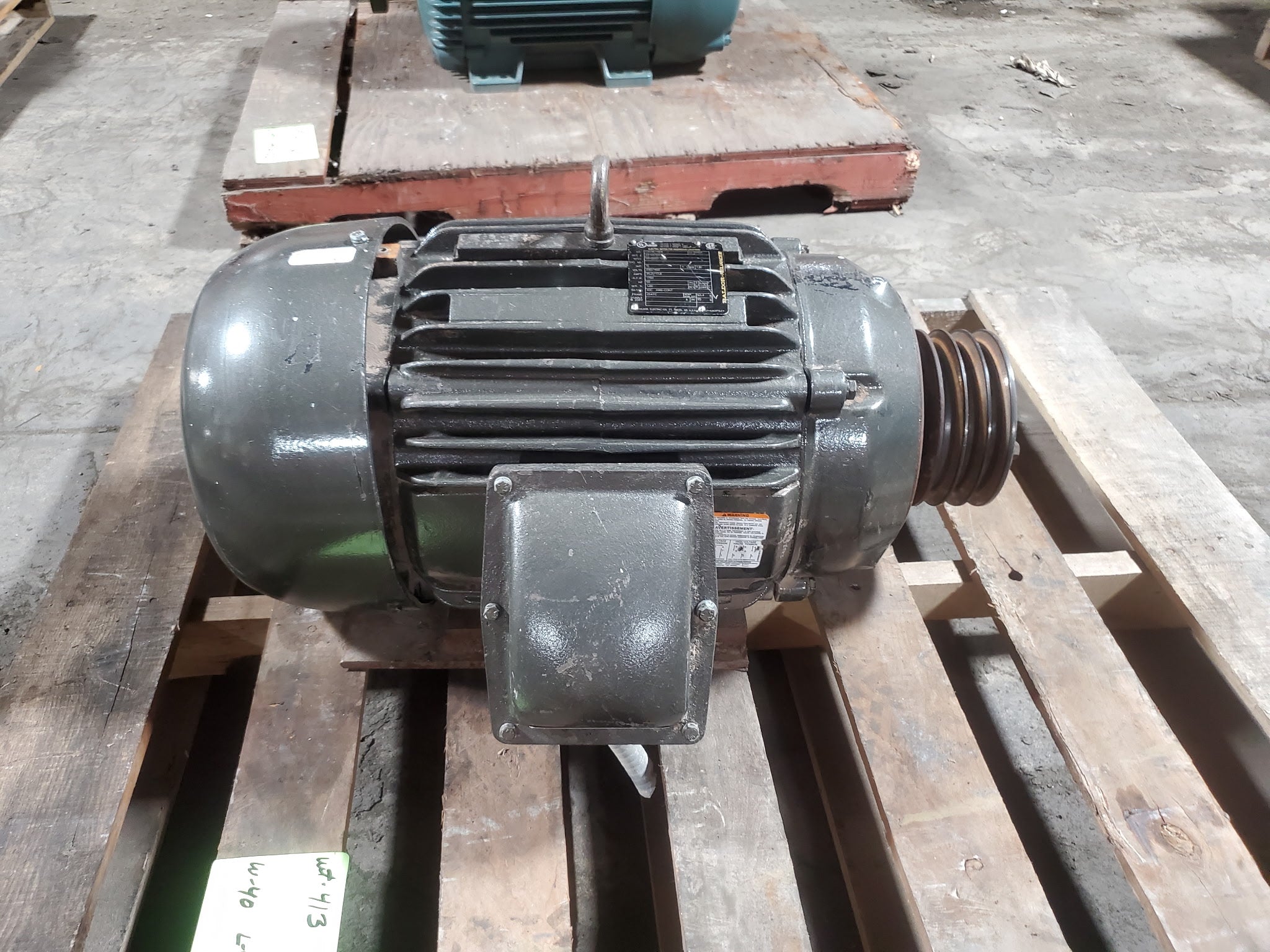

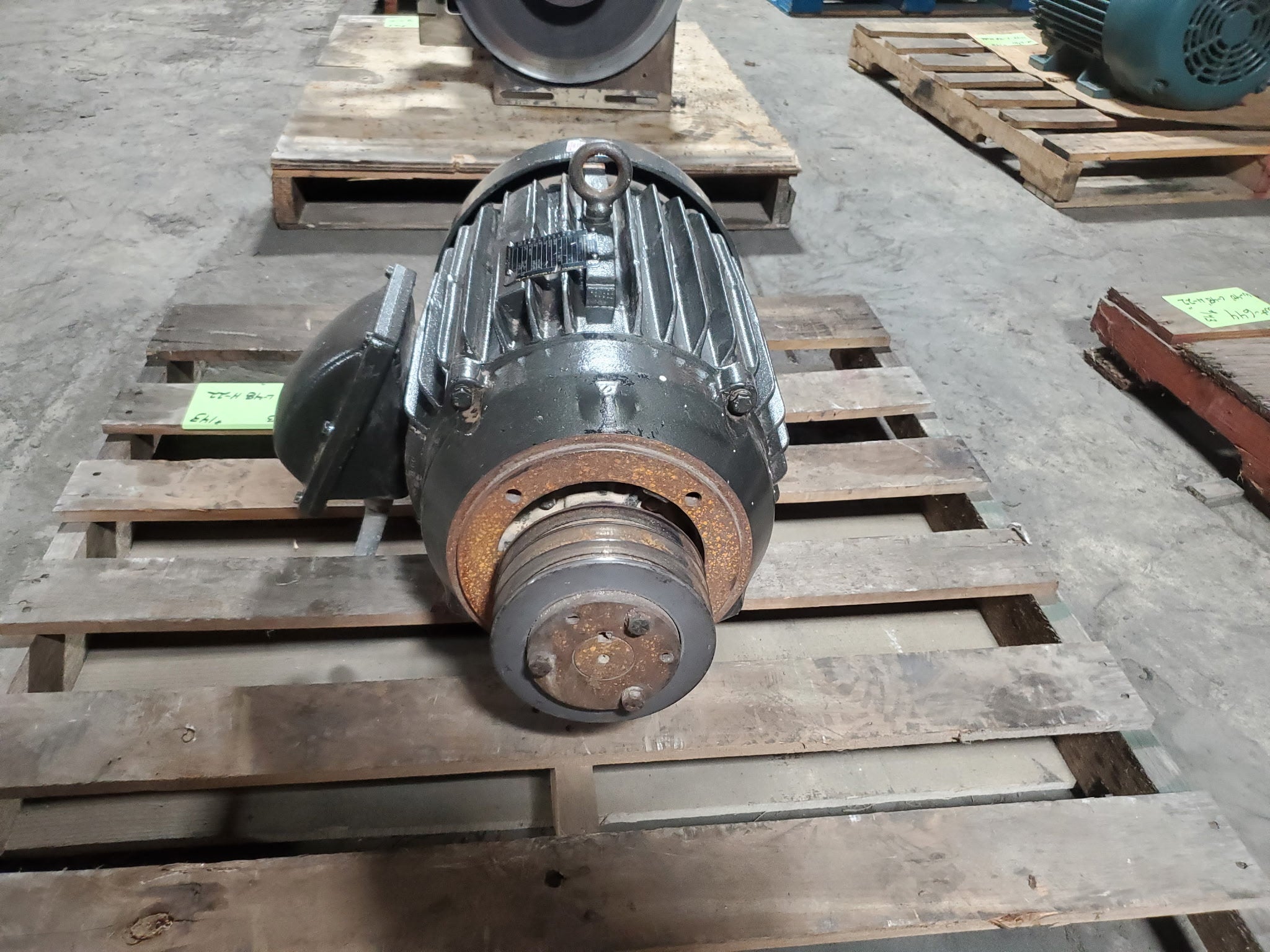

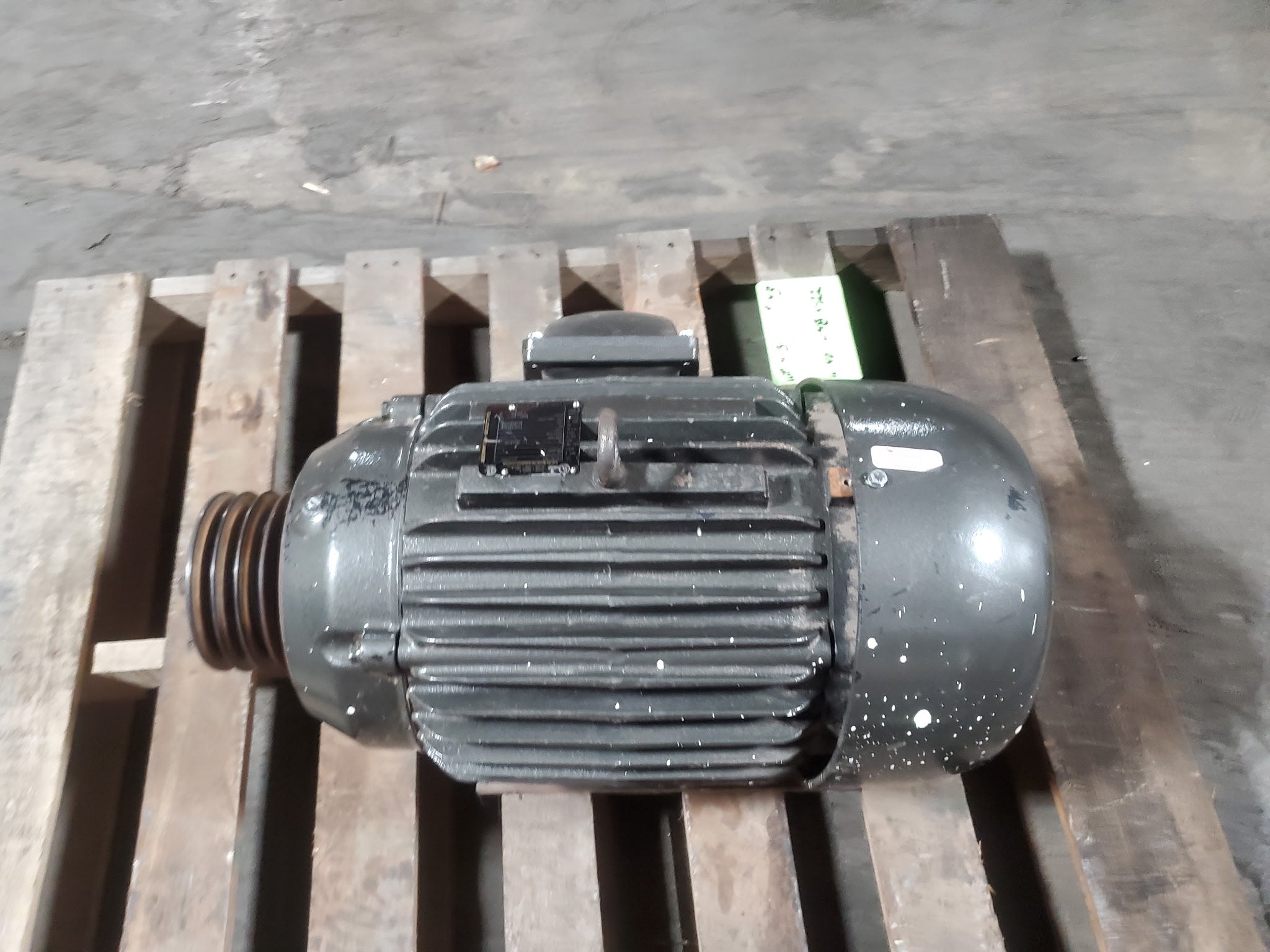

Used, removed in good working condition, recently untested, shows wear; please see photos
